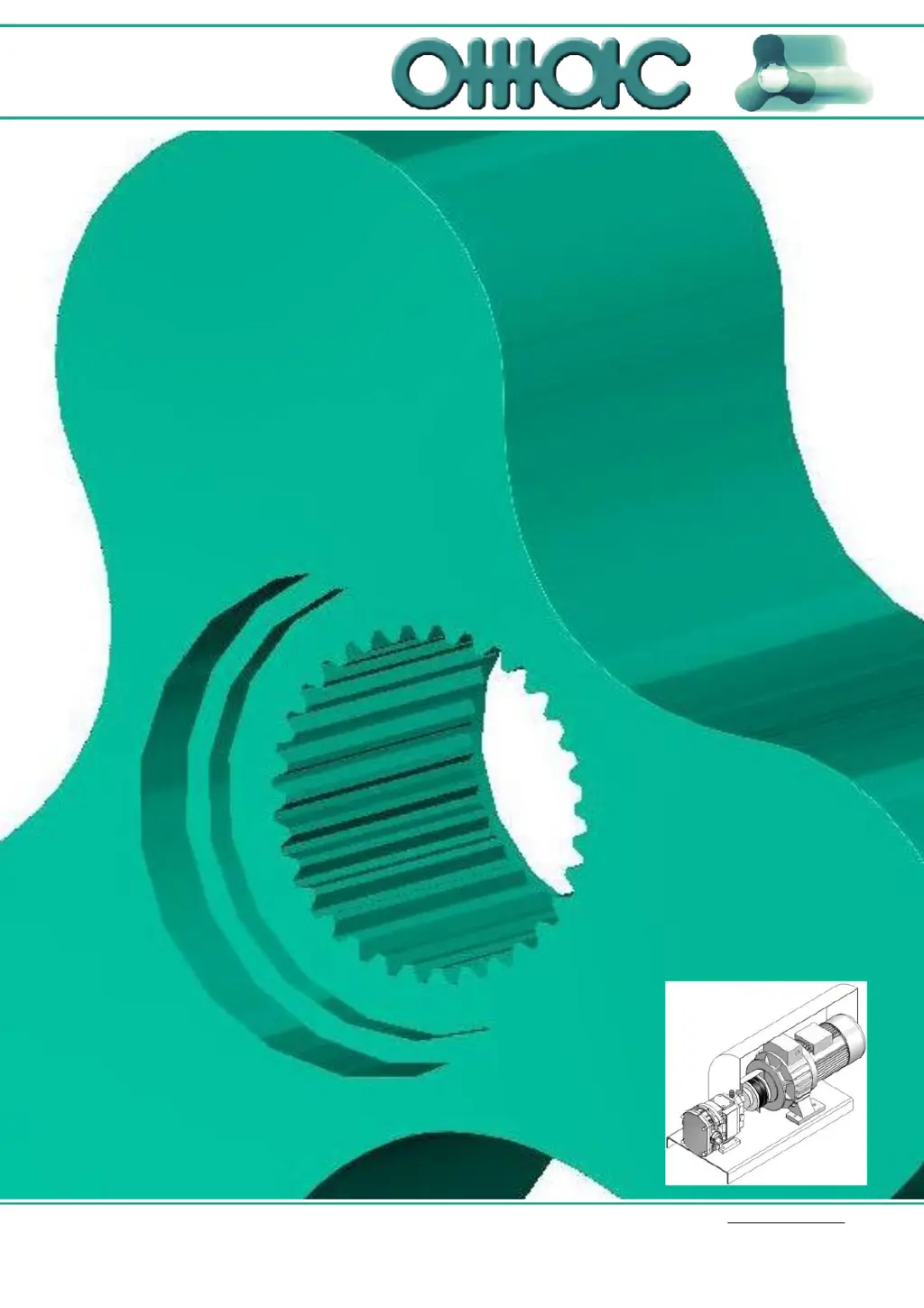

O.M.A.C. s.r.l.
Via Giovanni Falcone, 8 42048 Rubiera (RE) - Italy Tel.0522/629371 - 629923 Fax 0522/628980
E-mail:info@omacpompe.com SitoWeb:www.omacpompe.com
1
Rev.4 del 01/2011 O.M.A.C. s.r.l.
Operation and Maintenance
B Series
Lobe Positive Displacement
Group Pump Unit
Translation from the Original Instructions
O.M.M. B SERIES rev.4 01/2011 All rights reserved
O.M.A.C. S.R.L.
RUBIERA (RE) - ITALY

Table of Contents

Other manuals for OMAC B115

Preview: Installation, Operation And Maintenance Manual
Installation, Operation And Maintenance Manual52 pages

Questions and Answers

  • D
    Dr. Bobby HortonSep 8, 2025
    Why is the GPVL of my OMAC B115 blocking just starting?
    • G
      Glenda ClaySep 8, 2025
      If your OMAC Water Pump's GPVL is blocking just starting, there might be several reasons. Excessive medium viscosity can cause this; decrease the speed of the pump and increase the temperature of the medium. Low media temperature can also be a factor; increase the temperature of the medium and heat the pumping case (within the limits given by the manufacturer). Check for excessive back-pressure by removing possible obstructions in the outlet piping, increasing the piping diameter, and reducing its length and the number of bends. Worn-out or untimed gears can also cause the GPVL to block; replace the gears or time them according to the instructions. If parts are in contact in the pumping case, check that the design pressure coincides with the operating pressure.
  • D
    Donald NguyenSep 12, 2025
    What to do if my OMAC Water Pump is still overheating?
    • B
      Bruce SpencerSep 12, 2025
      If your OMAC Water Pump continues to overheat, even after initial troubleshooting, check if parts are in contact in the pumping case, and ensure that the design pressure coincides with the operating pressure. Also, examine the relief valve for leaks; check its setting, clean sealing parts, and substitute worn parts if necessary.
  • R
    rstricklandSep 14, 2025
    What causes fast seals wear in my OMAC B115 Water Pump?
    • S
      Samantha JohnsonSep 14, 2025
      If your OMAC Water Pump is experiencing fast seal wear, it could be due to a few reasons. The presence of suspended particles in the medium can cause this; clean the suction piping and install a filter on it. If the packing gland is too tight, this can also lead to fast seal wear; loosen the packing gland and tighten it correctly, following the instructions. Insufficient flushing seal liquid level can be another cause; check the flushing seal liquid and, if necessary, increase its flow-rate.
  • S
    Sarah GuzmanNov 16, 2025
    What to do if my OMAC B115 has no flow-rate?
    • J
      Johnny RobinsonNov 16, 2025
      If your OMAC Water Pump has no flow rate, first check if the rotation direction is wrong and invert it, if needed. Also, the pump may be unprimed; in this case, fill the pumping case and feeding piping with liquid, expelling air. Insufficient N.P.S.H. could be another cause, so increase the head and the piping inlet diameter, reduce the suction piping length and the number of bends, and decrease the speed of the pump and the temperature of the medium, ensuring the temperature decrease suits the motor power. The presence of air in the suction could also be the reason; increase the medium level and lower the suction opening position. Check for a dirty or blocked valve or suction filter and clean the filters if necessary. Finally, a leaking relief valve can cause this issue; check its setting...
  • S
    Stephen BartonNov 19, 2025
    Why is my OMAC B115 overheating?
    • K
      Kevin HallNov 19, 2025
      If your OMAC Water Pump is overheating, several factors could be responsible. Excessive medium viscosity can cause overheating; decrease the pump speed and increase the medium temperature. High medium temperature is another potential cause; decrease the medium temperature and cool the pumping case. Check for excessive back-pressure by removing obstructions in the outlet piping, increasing the piping diameter, and reducing its length and the number of bends. A too-tight packing gland can also lead to overheating; loosen the packing gland and tighten it correctly, following the instructions. Ensure that the piping is not pressing on the pumping case by checking the piping alignment, fitting flexible expansion joints if necessary, and fixing the piping on the plant structure. Misalignment of ...
  • J
    jacquelinehendricksNov 22, 2025
    Why is my OMAC B115 Water Pump so noisy and vibrating?
    • D
      danielle63Nov 22, 2025
      If your OMAC Water Pump is experiencing noise and LDPU vibration, consider the following potential causes. Insufficient N.P.S.H. (Net Positive Suction Head) can lead to these issues; increase the head and piping inlet diameter, reduce the suction piping length and the number of bends, and decrease the pump speed and medium temperature, ensuring the temperature decrease suits the motor power. Medium evaporation in the inlet or air entering the inlet can also cause noise and vibration; increase the head and piping inlet diameter, reduce the suction piping length and the number of bends, decrease the pump speed and medium temperature, check and tighten suction piping connections, and tighten the packing glands, replacing them if necessary. The presence of air in the suction or not enough liqu...
  • C
    carol61Nov 24, 2025
    What causes low flow-rate in my OMAC B115's LDPU?
    • C
      Christina MoranNov 24, 2025
      If your OMAC Water Pump's LDPU has a low flow-rate, several factors could be responsible. Insufficient N.P.S.H. could be the cause; increase the head and the piping inlet diameter, reduce the suction piping length and the number of the bends, decrease the speed of the pump and the temperature of the medium, and check that the increase (caused by the decreasing temperature) is suitable to the motor power. If the medium evaporates in the inlet, take the same steps as for insufficient N.P.S.H. Air entering in inlet can also cause low flow; check and tighten suction piping connections and tighten the packing glands, replacing them if necessary. If there's air in the suction, fill pumping case and feeding piping with liquid, expelling air. A low liquid level in the tank in the suction requires ...
  • S
    Samuel SanchezNov 27, 2025
    Why is the motorization of my OMAC B115 overheating?
    • S
      Seth Strong IINov 27, 2025
      If the motorization of your OMAC Water Pump is overheating, it could be due to several reasons. Low medium temperature might be the cause; increase the temperature of the medium and heat the pumping case, staying within the manufacturer's limits. Excessive medium viscosity can also lead to overheating; decrease the speed of the pump and increase the temperature of the medium. Check for excessive back-pressure by removing obstructions in the outlet piping, increasing the piping diameter, and reducing its length and the number of bends. A too-tight packing gland can also cause this issue; loosen the packing gland and tighten it correctly, following the instructions. Excessive pump speed can contribute to overheating; decrease the speed of the pump. Ensure that the piping is not pressing on t...
  • C
    cchavezDec 1, 2025
    What causes the seizure of my OMAC B115 Water Pump?
    • E
      ewilkinsDec 1, 2025
      If your OMAC Water Pump experiences seizure, it could be due to several reasons. Excessive medium temperature can cause this; decrease the temperature of the medium and cool the pumping case. The presence of suspended particles in the medium can also lead to seizure; clean the suction piping and install a filter on it. Excessive back-pressure can be a factor; remove any obstructions in the outlet piping, increase the piping diameter, and reduce its length and the number of bends. A packing gland that is too tight can also cause seizure; loosen the packing gland and tighten it correctly, following the instructions. Check that the piping is not pressing on the pumping case by verifying the piping alignment, fitting flexible expansion joints if necessary, and fixing the piping on the plant st...
  • H
    Heather TaylorDec 3, 2025
    Why does my OMAC B115 GPVL have high power absorption?

    Summary

    CHAPTER 1: MACHINE AND PUMPED FLUID SPECIFICATIONS

    1.3 Technical features

    1.4 Intended use

    1.7 Indication of the safety systems

    Details the safety features incorporated into the LDPU for operator protection.

    1.9 Use of the personal protection equipment

    Specifies the necessary PPE for safe operation, maintenance, and assembly of the LDPU.

    1.10 Personnel training

    CHAPTER 3: INSTALLATION OF THE B SERIES LDPU

    3.3 Installation and assembly

    Provides step-by-step instructions for the proper installation and assembly of the LDPU.

    3.5 Connection to energy sources

    Explains how to connect the LDPU to electrical, hydraulic, and pneumatic energy supplies.

    3.7 Installation and pre-start check: operation test

    Guides the user through pre-start checks and initial operation tests after installation.

    INTENDED USE

    Fluid properties and range of use

    Defines the acceptable fluid characteristics and operating limits for the LDPU.

    HOW TO CONSULT AND KEEP THIS DOCUMENTATION

    CHAPTER 4: USE OF THE B SERIES LDPU

    4.1 Intended use

    4.2 Controls

    Describes the function of all control elements, indicators, and symbols on the LDPU's panel.

    4.3 LDPU volumetric capacity adjustment methods

    4.5 Cycle start instructions

    Provides essential steps and checks required before starting the LDPU's operation cycle.

    CHAPTER 5: B SERIES LDPU MAINTENANCE

    5.1 Troubleshooting and solving problems

    Offers solutions for common failures and operational issues encountered with the LDPU.

    5.2 Instruction for carrying out checks

    5.3 Periodic check of the safety and emergency devices

    Details the procedure for periodically verifying the functionality of safety and emergency systems.

    5.7 Disassembly and assembly operations of B100 size pump.

    Provides detailed steps for disassembling and reassembling the B100 size pump.

    5.8 Disassembly and assembly operations of B1;B2;B3;B4;B470;B490 size pump

    Details the disassembly and assembly procedures for specific B Series pump sizes.

    5.9 Disassembly and assembly operations of B550;B660;B680 size pump

    Outlines the disassembly and assembly processes for the larger B550/B660/B680 pump models.

    5.10 Post maintenance check

    CHAPTER 6: B SERIES LDPU DECOMMISSIONING

    6.1 Disconnection from the sources of energy

    Details the critical steps for safely disconnecting the LDPU from all energy sources.

    6.2 Disassembly

    CHAPTER 7: B SERIES LDPU SPARE PARTS

    7.1 List of spare parts and section drawings of the lobe displacement pump

    Contains comprehensive lists and diagrams of all available spare parts for the LDPU.

    7.3 How to order spare parts

    CHAPTER 8: ASSISTANCE

    Contacts
