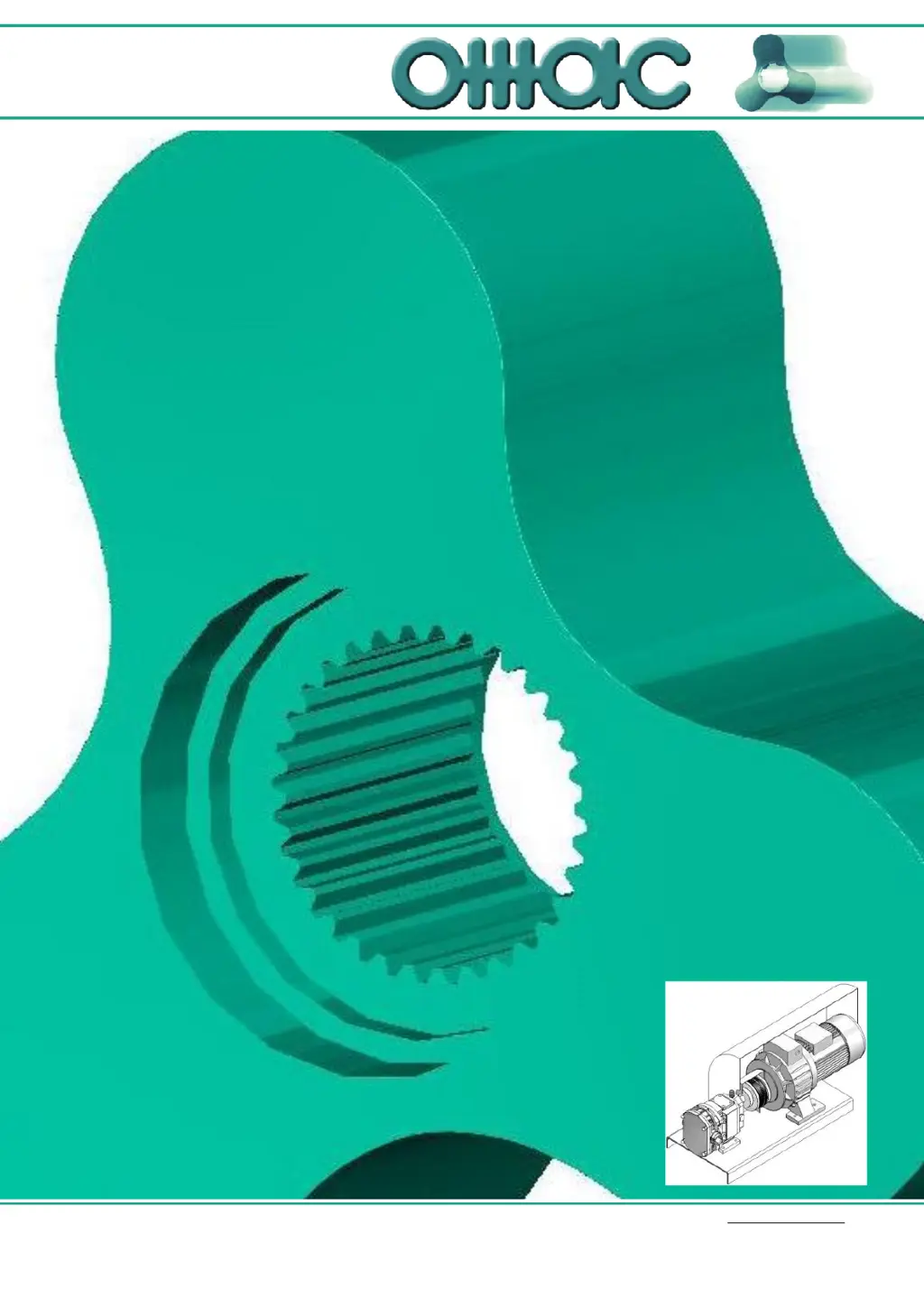

OMAC B215 - User Manual

Other manuals for OMAC B215

Installation, Operation And Maintenance Manual52 pages

Questions and Answers

W
William HillSep 8, 2025
Why is the GPVL of my OMAC Water Pump blocking just starting?
- A
  Anthony AtkinsSep 8, 2025
  If your OMAC Water Pump's GPVL is blocking just starting, there might be several reasons. Excessive medium viscosity can cause this; decrease the speed of the pump and increase the temperature of the medium. Low media temperature can also be a factor; increase the temperature of the medium and heat the pumping case (within the limits given by the manufacturer). Check for excessive back-pressure by removing possible obstructions in the outlet piping, increasing the piping diameter, and reducing its length and the number of bends. Worn-out or untimed gears can also cause the GPVL to block; replace the gears or time them according to the instructions. If parts are in contact in the pumping case, check that the design pressure coincides with the operating pressure.
C
Cassandra DominguezSep 12, 2025
What to do if my OMAC B215 is still overheating?
- M
  Mary JonesSep 12, 2025
  If your OMAC Water Pump continues to overheat, even after initial troubleshooting, check if parts are in contact in the pumping case, and ensure that the design pressure coincides with the operating pressure. Also, examine the relief valve for leaks; check its setting, clean sealing parts, and substitute worn parts if necessary.
A
Amy MitchellSep 13, 2025
What causes fast seals wear in my OMAC Water Pump?
- R
  Ryan GoodwinSep 13, 2025
  If your OMAC Water Pump is experiencing fast seal wear, it could be due to a few reasons. The presence of suspended particles in the medium can cause this; clean the suction piping and install a filter on it. If the packing gland is too tight, this can also lead to fast seal wear; loosen the packing gland and tighten it correctly, following the instructions. Insufficient flushing seal liquid level can be another cause; check the flushing seal liquid and, if necessary, increase its flow-rate.
R
rickyhortonNov 16, 2025
What to do if my OMAC Water Pump has no flow-rate?
- A
  ablairNov 16, 2025
  If your OMAC Water Pump has no flow rate, first check if the rotation direction is wrong and invert it, if needed. Also, the pump may be unprimed; in this case, fill the pumping case and feeding piping with liquid, expelling air. Insufficient N.P.S.H. could be another cause, so increase the head and the piping inlet diameter, reduce the suction piping length and the number of bends, and decrease the speed of the pump and the temperature of the medium, ensuring the temperature decrease suits the motor power. The presence of air in the suction could also be the reason; increase the medium level and lower the suction opening position. Check for a dirty or blocked valve or suction filter and clean the filters if necessary. Finally, a leaking relief valve can cause this issue; check its setting...
S
Samuel HernandezNov 19, 2025
Why is my OMAC B215 overheating?
- T
  Troy LeeNov 19, 2025
  If your OMAC Water Pump is overheating, several factors could be responsible. Excessive medium viscosity can cause overheating; decrease the pump speed and increase the medium temperature. High medium temperature is another potential cause; decrease the medium temperature and cool the pumping case. Check for excessive back-pressure by removing obstructions in the outlet piping, increasing the piping diameter, and reducing its length and the number of bends. A too-tight packing gland can also lead to overheating; loosen the packing gland and tighten it correctly, following the instructions. Ensure that the piping is not pressing on the pumping case by checking the piping alignment, fitting flexible expansion joints if necessary, and fixing the piping on the plant structure. Misalignment of ...
R
Robert JonesNov 22, 2025
Why is my OMAC Water Pump so noisy and vibrating?
- M
  Mr. Michael WilsonNov 22, 2025
  If your OMAC Water Pump is experiencing noise and LDPU vibration, consider the following potential causes. Insufficient N.P.S.H. (Net Positive Suction Head) can lead to these issues; increase the head and piping inlet diameter, reduce the suction piping length and the number of bends, and decrease the pump speed and medium temperature, ensuring the temperature decrease suits the motor power. Medium evaporation in the inlet or air entering the inlet can also cause noise and vibration; increase the head and piping inlet diameter, reduce the suction piping length and the number of bends, decrease the pump speed and medium temperature, check and tighten suction piping connections, and tighten the packing glands, replacing them if necessary. The presence of air in the suction or not enough liqu...
D
danielwilkersonNov 24, 2025
What causes low flow-rate in my OMAC B215 Water Pump's LDPU?
- D
  derrick76Nov 25, 2025
  If your OMAC Water Pump's LDPU has a low flow-rate, several factors could be responsible. Insufficient N.P.S.H. could be the cause; increase the head and the piping inlet diameter, reduce the suction piping length and the number of the bends, decrease the speed of the pump and the temperature of the medium, and check that the increase (caused by the decreasing temperature) is suitable to the motor power. If the medium evaporates in the inlet, take the same steps as for insufficient N.P.S.H. Air entering in inlet can also cause low flow; check and tighten suction piping connections and tighten the packing glands, replacing them if necessary. If there's air in the suction, fill pumping case and feeding piping with liquid, expelling air. A low liquid level in the tank in the suction requires ...
E
Eric JenningsNov 27, 2025
Why is the motorization of my OMAC Water Pump overheating?
- J
  James BrooksNov 27, 2025
  If the motorization of your OMAC Water Pump is overheating, it could be due to several reasons. Low medium temperature might be the cause; increase the temperature of the medium and heat the pumping case, staying within the manufacturer's limits. Excessive medium viscosity can also lead to overheating; decrease the speed of the pump and increase the temperature of the medium. Check for excessive back-pressure by removing obstructions in the outlet piping, increasing the piping diameter, and reducing its length and the number of bends. A too-tight packing gland can also cause this issue; loosen the packing gland and tighten it correctly, following the instructions. Excessive pump speed can contribute to overheating; decrease the speed of the pump. Ensure that the piping is not pressing on t...
B
Brandon HarrisDec 1, 2025
What causes the seizure of my OMAC Water Pump?
- W
  William HarrellDec 1, 2025
  If your OMAC Water Pump experiences seizure, it could be due to several reasons. Excessive medium temperature can cause this; decrease the temperature of the medium and cool the pumping case. The presence of suspended particles in the medium can also lead to seizure; clean the suction piping and install a filter on it. Excessive back-pressure can be a factor; remove any obstructions in the outlet piping, increase the piping diameter, and reduce its length and the number of bends. A packing gland that is too tight can also cause seizure; loosen the packing gland and tighten it correctly, following the instructions. Check that the piping is not pressing on the pumping case by verifying the piping alignment, fitting flexible expansion joints if necessary, and fixing the piping on the plant st...
K
Kristen NashDec 3, 2025
Why does my OMAC B215 Water Pump GPVL have high power absorption?

Summary

CHAPTER 1: MACHINE AND PUMPED FLUID SPECIFICATIONS

Operation Principle of the B Series LDPU

Explains how the lobe displacement pump functions during operation.

Technical Features

Details the technical specifications and data of the LDPU and its components.

Technical Features of the B Series LDPU

Nominal features of various B series LDPU dimensions, capacity, and speed.

Variation of Maximum Operating Pressure

Tightening Torque

Recommended Use Guidelines

Indication of the Safety Systems

Details the safety systems designed to prevent or manage operator danger.

Use of Personal Protection Equipment

Outlines necessary PPE for assembly, disassembly, and maintenance operations.

Pump with Mechanical Safety Valve

Pump with Pneumatic Safety Valve

Pump with External Mechanical Bridge Safety Valve

CHAPTER 2: LDPU B SERIES TRANSPORTATION

Hoisting and Transportation

Guidelines for safely handling and transporting the LDPU unit.

Delivery and Unpacking

CHAPTER 3: INSTALLATION OF THE B SERIES LDPU

Destination and Intended Environments

Installation and Assembly

Provides guidance for qualified personnel on installing and assembling the LDPU.

Preliminary Checks

Installation

Step-by-step instructions for positioning, fixing, and installing the LDPU.

Cleaning and Hygiene of the LDPU

Outlines cleaning and sanitization methods for alimentary and chemical use.

LDPU for Alimentary Use

Details cleaning and sanitization procedures for alimentary grade LDPUs.

LDPU for Chemical Use

Details cleaning procedures specifically for chemical fluid applications.

Internal Cleaning Instructions

Connection to Energy Sources

Instructions for connecting the LDPU to electrical, hydraulic, and pneumatic sources.

Connection to the Electrical System

Guidance on safely connecting the LDPU to the electrical power supply.

Connection to the Hydraulic System

Connection to the Pneumatic System

Installation and Pre-Start Check

Procedures for checking and testing the LDPU before starting production.

CHAPTER 4: USE OF THE B SERIES LDPU

Intended Use

Reiterates the purpose and operational range of the LDPU.

Controls

Describes the functions of control actuators, indicators, and symbols on the electric panel.

LDPU Volumetric Capacity Adjustment Methods

Explains how to adjust the LDPU's volumetric capacity using inverter or speed controller.

Work Cycle Description

Cycle Start Instructions

Guidance on starting the LDPU, including preliminary checks and safe operation.

Stopping Instructions

Management of Emergency Situations

Describes actions to take in case of an emergency situation involving the LDPU.

CHAPTER 5: B SERIES LDPU MAINTENANCE

Troubleshooting and Solving Problems

Provides a guide to identifying and resolving common pump failures.

Instruction for Carrying Out Checks

Details daily, weekly, and six-monthly checks for LDPU maintenance.

Periodic Checks of Safety and Emergency Devices

Mechanical Seals with Flushing

Disassembly and Assembly Operations of B100 Size Pump

Step-by-step instructions for disassembling and assembling the B100 pump.

Assembly of the Bearing Box

Disassembly and Assembly Operations of Size B1;B2;B3;B4;B470;B490 PUMP

Step-by-step instructions for disassembling and assembling B1-B4/B470-B490 pumps.

Disassembly of the Pumping Body

Detailed steps for removing and disassembling the pumping body components.

Assembly of the Pumping Body

Detailed steps for reassembling the pumping body components.

Disassembly of the Bearings Box

Assembly of the Bearings Box

Disassembly and Assembly Operations of B550;B660;B680 Size Pump

Step-by-step instructions for disassembling and assembling B550/B660/B680 pumps.

Disassembly of the B660;B680 Pumping Body

Detailed steps for removing and disassembling the B660/B680 pumping body.

Assembly of the B660;B680 Pumping Body

Detailed steps for reassembling the B660/B680 pumping body.

Disassembly of the B550;B660;B680 Gear Box

Assembly of the B550;B660;B680 Gear Box

POST MAINTENANCE CHECK

Tests to carry out after maintenance to ensure proper LDPU operation.

CHAPTER 6: B SERIES LDPU DECOMMISSIONING

Disconnection from the Sources of Energy

Procedures for safely disconnecting the LDPU from electric, hydraulic, and pneumatic sources.

Disassembly

CHAPTER 7: B SERIES LDPU SPARE PARTS

List of Spare Parts and Section Drawings

Presents spare parts lists and exploded view drawings for LDPU models.

B100: Spare Parts List

Detailed spare parts list for the B100 model with exploded view.

B100: Spare Parts Names and Codes

Provides names and identification codes for B100 spare parts.

B100: Seals Section Drawings

B100: Gasket or Ring Codes

B105 B110 B115: Spare Parts List

Spare parts list for B105, B110, B115 models with exploded views.

B105 B110 B115: Spare Parts Names and Codes

Provides names and codes for spare parts for B105, B110, B115 models.

B105 B110 B115: Seals Section Drawings

B105 B110 B115: Gasket or Ring Codes

B215 B220 B325 B330 B390 B430 B440 B470 B490: Spare Parts List

Spare parts list for B215-B490 models with exploded views.

B215 B220 B325 B330 B390 B430 B440 B470 B490: Spare Parts Names and Codes

Names and codes for spare parts for B215-B490 models.

B215 B220 B325 B330 B390 B430 B440 B470 B490: Seals Section Drawings

B215 B220 B325 B330 B390 B430 B470 B490: Gasket or Ring Codes

B550 B660 B680: Spare Parts List

B550 B660 B680: Spare Parts Names and Codes

B550 B660 B680: Seals Section Drawings

B550 B660 B680: Gasket or Ring Codes

CHAPTER 8: ASSISTANCE

Customer After-Sales Assistance

Information on O.M.A.C. S.r.l.'s after-sales service for LDPU issues.

CHAPTER 9: WARRANTY

Warranty Grant and Terms

Details the warranty period, conditions, and exclusions for LDPUs.

OMAC B215 Specifications

General

Brand	OMAC
Model	B215
Category	Water Pump
Language	English
