Section 3 – Installation
Page 14 09/11/2008 REV 0.99
NOTE: The recorder is designed to be panel mounted and as such should be considered as
permanently connected. Disconnection from the supply must be possible via a customer
supplied switch or circuit breaker. This disconnection device must be included in the panel
installation and should be clearly marked, in close proximity to the Recorder and easily
accessible to the operator.
3.3 Installation
The recorder is sized to fit in a standard DIN panel cutout of 5.43” x 5.43” [138 mm x 138 mm] and requires a
minimum of 6.5” [188.2 mm] behind panel depth not including power and input source cable space needed.
Actual dimensions are shown below.

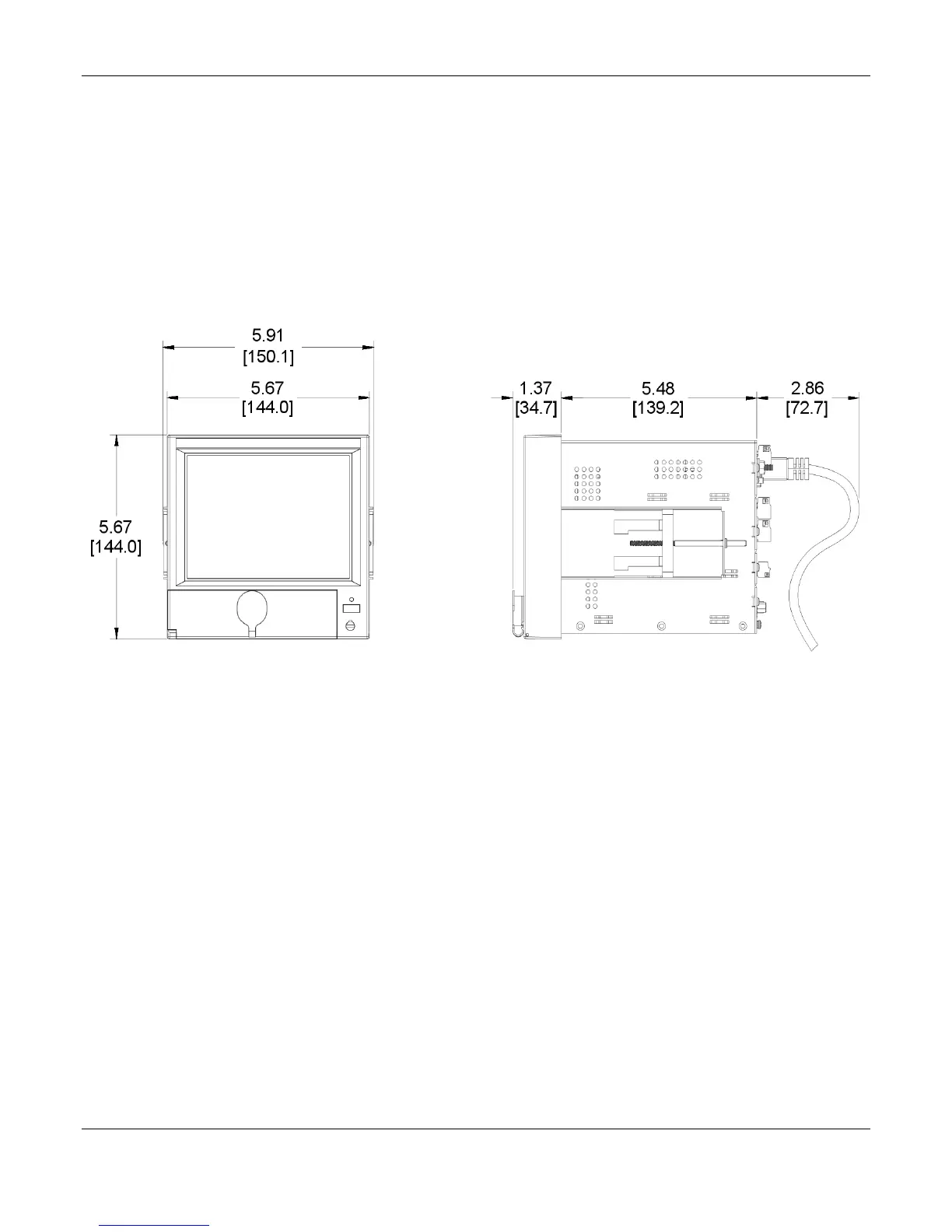

Figure 3-1 Recorder Dimensions in Inches [mm]
WARNING: Do not use this instrument in any manner inconsistent with these operating instructions or
under any conditions that exceed the environmental specifications stated.
