Section 5 – Recorder Setup
Page 80 09/11/2008 REV 0.99

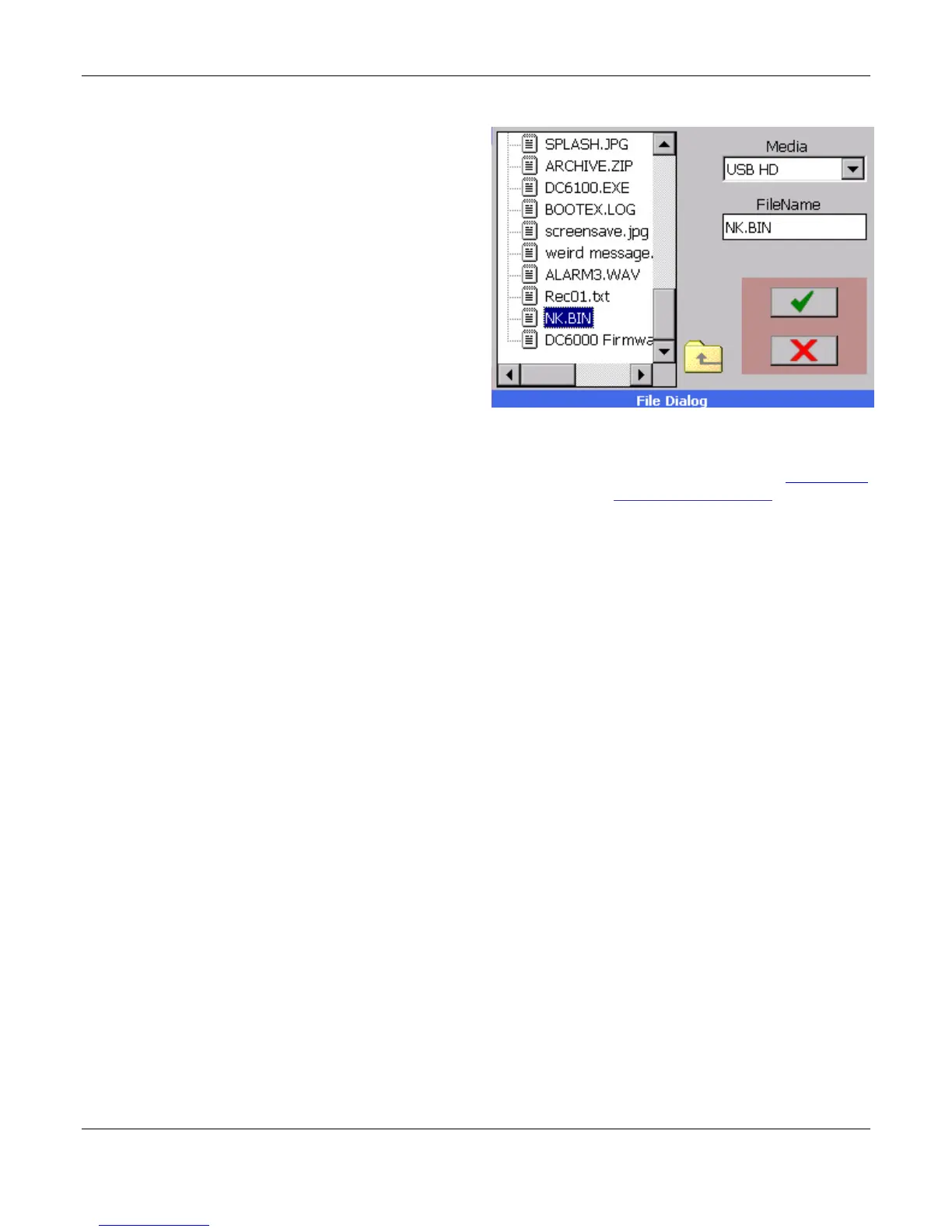

Figure 5.7.12 – Reflash File Dialog
Once beyond this step The file dialog box shown below right will appear.
Select the media from the Media dropdown box.
Note that CF Card is the compact flash card - USB
HD is the front USB port - USB HD2 is the rear USB
port and Internal is the system memory AND
SHOULD NOT BE USED TO REFLASH the unit.
Browse to the file NK.BIN that you previously loaded
onto a USB Drive or Compact Flash card and select
it or enter the name into the FileName space.
Press the Accept Button This will replace the
entire contents of non-volatile memory with a new
image. This is equivalent to formatting the hard drive
on your PC and reinstalling everything. DO NOT
RESET and DO NOT REMOVE POWER while this
operation is in process. Once you select this
option a file browse window will pop up. Navigate to
the file NK.BIN and press okay. A window will pop
up showing the progress of a series of operations. When completed you will be required to Reset or Power
Cycle the recorder to restart the system. Remove the AC mains cable and reinsert it or push the reset button
to restart. The unit will have to then be set up from new. See Section 2.7 QUICK START GUIDE.
