Section 6 - Communication
Page 82 09/11/2008 REV 0.99
The recorder name is shown in bold at the top of the page – “Process Recorder”. If any channel is in alarm this
name will be in red as shown, otherwise it will be in blue. Each channel data is shown as a digital panel indicator.
The actual value is shown in the center in large digits. Below this are the unit tags (in blue) and the engineering
units. Above to the right of each panel display is the physical channel number. In the event that a channel is in
Alarm, this will be shown in the upper left in large red letters as in the case of Channel 2. The live data updates
every 3 to 5 seconds.
There are a number of buttons below the live data display. “Chan 7-12” and “Chan 1-12” show those channels – 7
to 12 or all channels 1 to 12. “View Recorder” shows the actual recorder display as seen at the recorder itself as
shown below. This updates every 5 seconds.

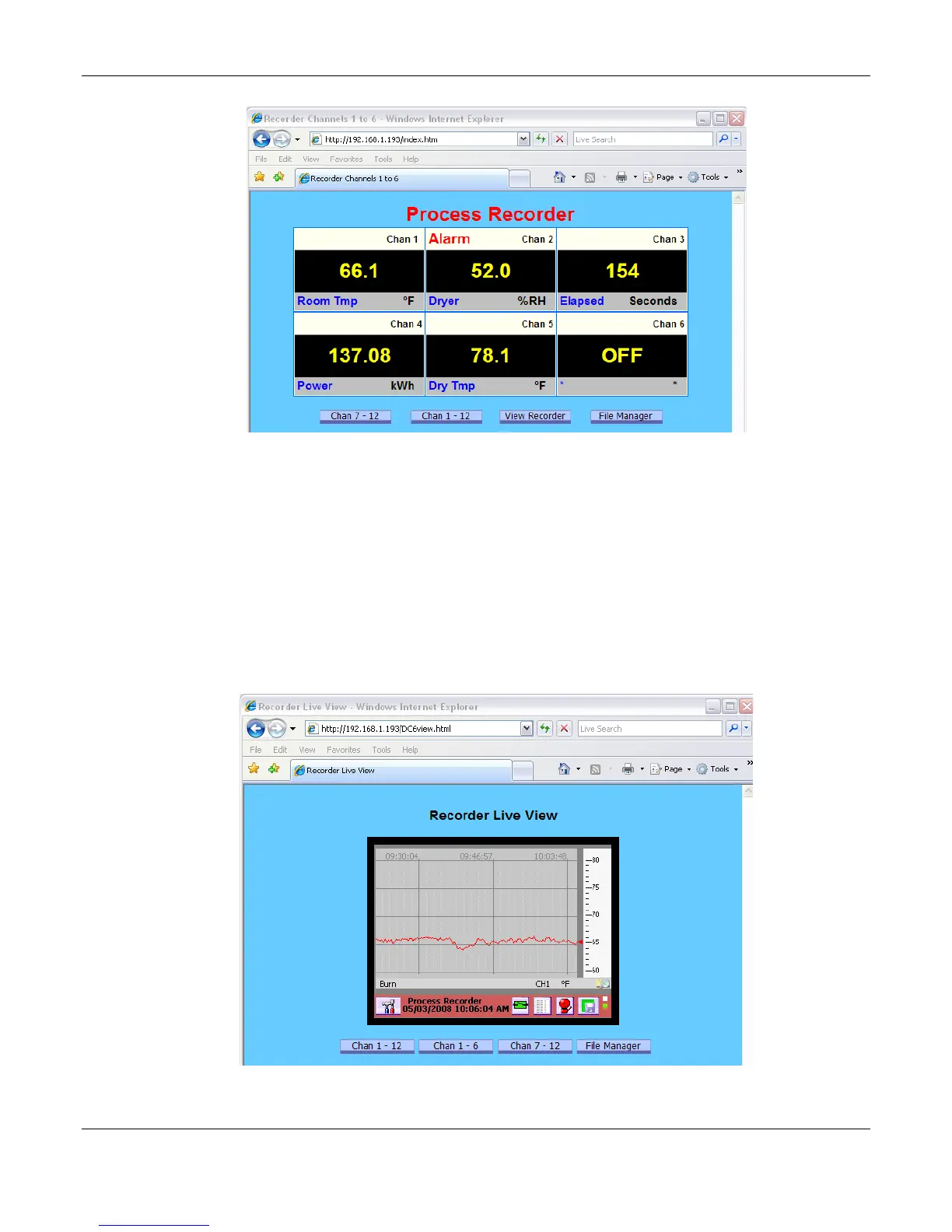

Figure 6.1.2 – Index Page
Figure 6.1.3 – View Recorder Page
