Omega Calibre 3313 A - Chronograph System Diagram and Layout; Wheel Train and Chronograph System Illustration

OMEGA SA WORLD SERVICE ORGANIZATION TG-19-C-017-FDE - B - PAGE 13 - 3313A
Rouage / Räderwerk / Wheel train
Système de chronographe / Chronographensystem / Chronograph system
Côté cadran / Zifferblattseite / Dial side

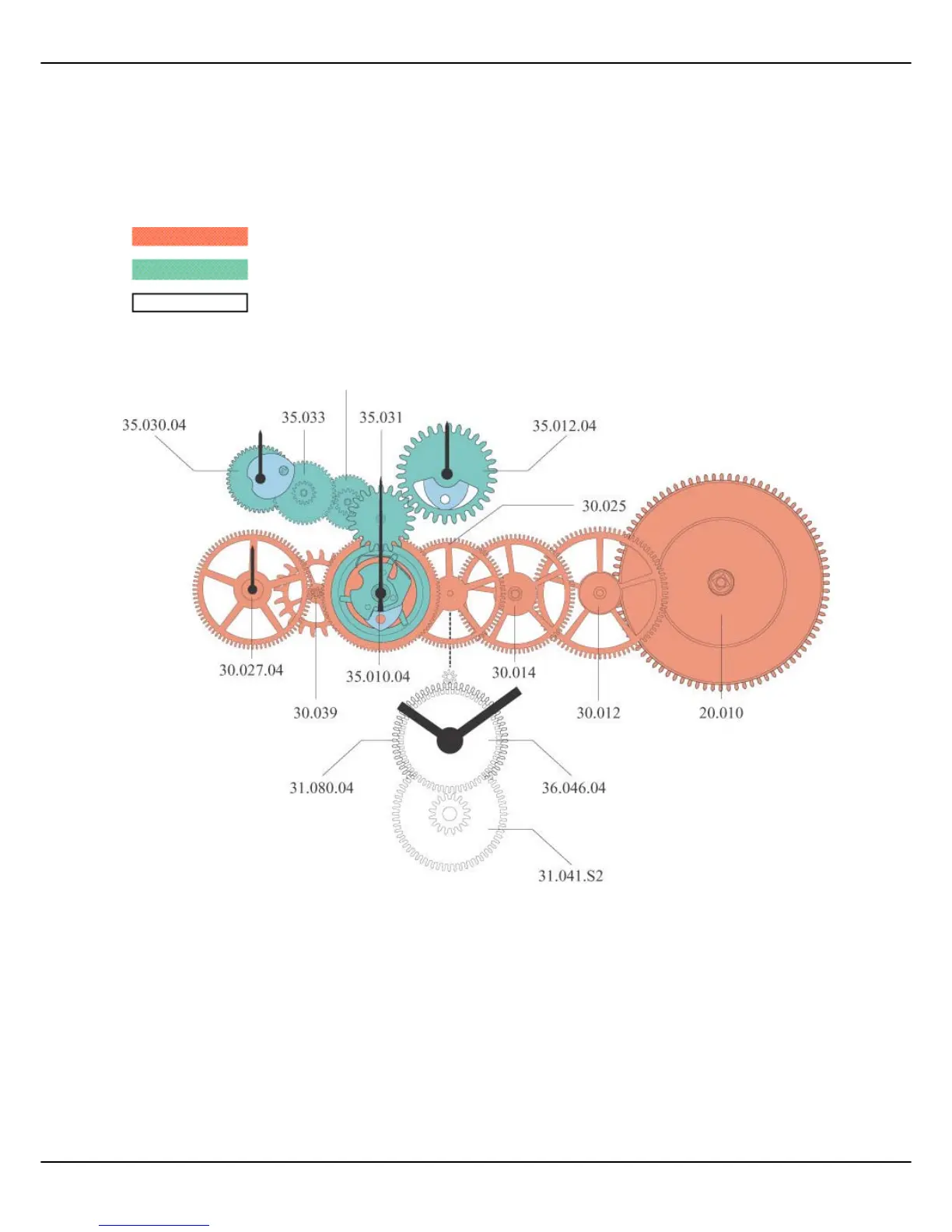

1.1 Schéma général 1.1 Darstellung 1.1 Diagram
Fig. 1.1
1.0 Système chronographe – Chronographensystem – Chronograph system
