CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer
THERMOCOUPLE SIMULATE RANGE
Resolution: 0.1° (1° for R/S/B/C-TYPE)
Accuracy: ±(0.3°C + 10uV)
Accuracy: Specified for operating temperatures over the range of 18°C to 28°C (64°F
to 82°F), for 1 year, not including thermocouple error.
mV Range:
Range: -25.00mV to 75.00mV
Resolution: 10uV
Accuracy: ±(0.025% + 1 digit)
Temperature Coefficient:
0.1 times the applicable accuracy specification per °C from 0°C to 18 and 28°C to
50°C (32°F to 64°F and 82°F to
122°F).
Top Side:
1. Output 1.
2. Output 2.
3. Input T1.
4. Input T2.
5. RS232 optical interface.
OPERATING INSTRUCTIONS
4
4
2
1
3
5
CL3515R
CL3515R K/J/T/E/R/S/N/L/U/B/C Calibrator Thermometer

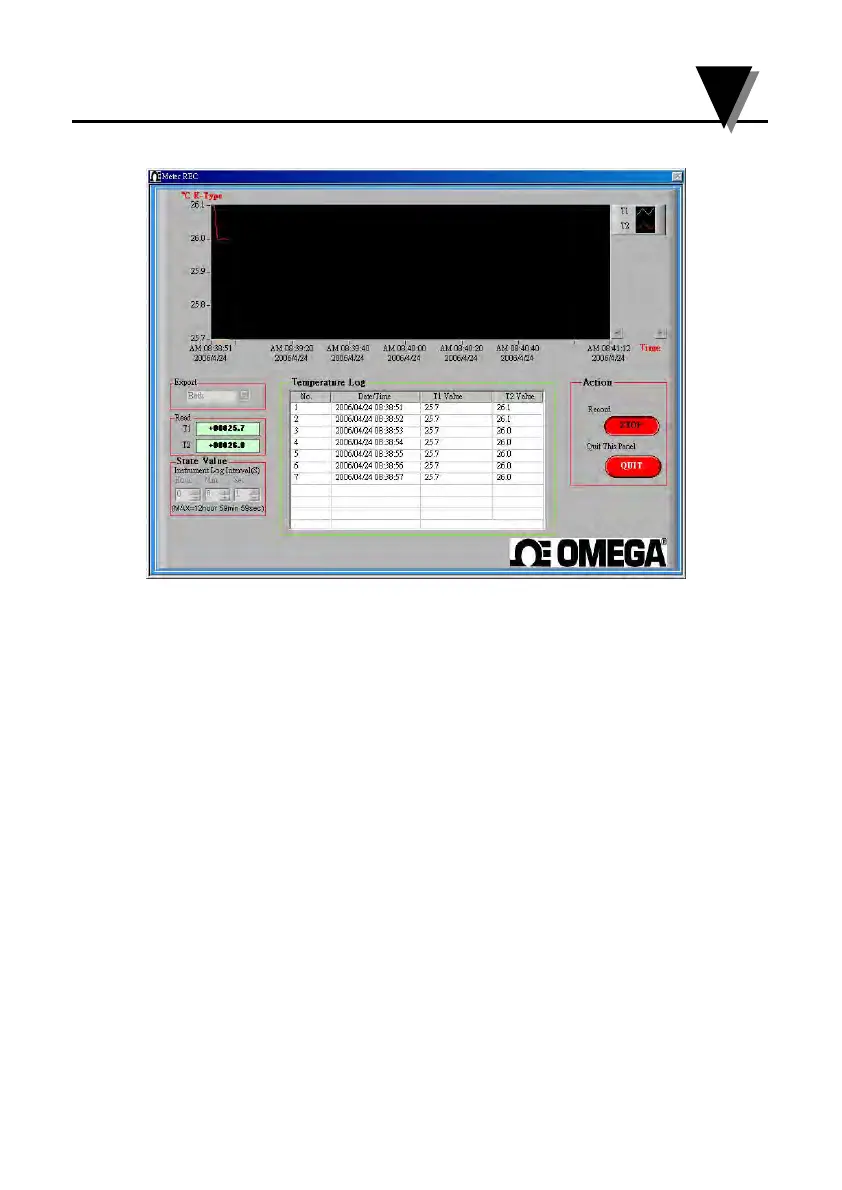

4. Record
Export
Both
Display drawing T1 and T2.
T1
Display drawing T1.
T2
Display drawing T2.
State Value
Setting Interval.
Start
Log
File type *.txt or *.xls
Quit
Exit
13
