Omega HHT13 - 5 Preparation for Measurement; Non-Contact Preparation; Direct Contact Preparation

7

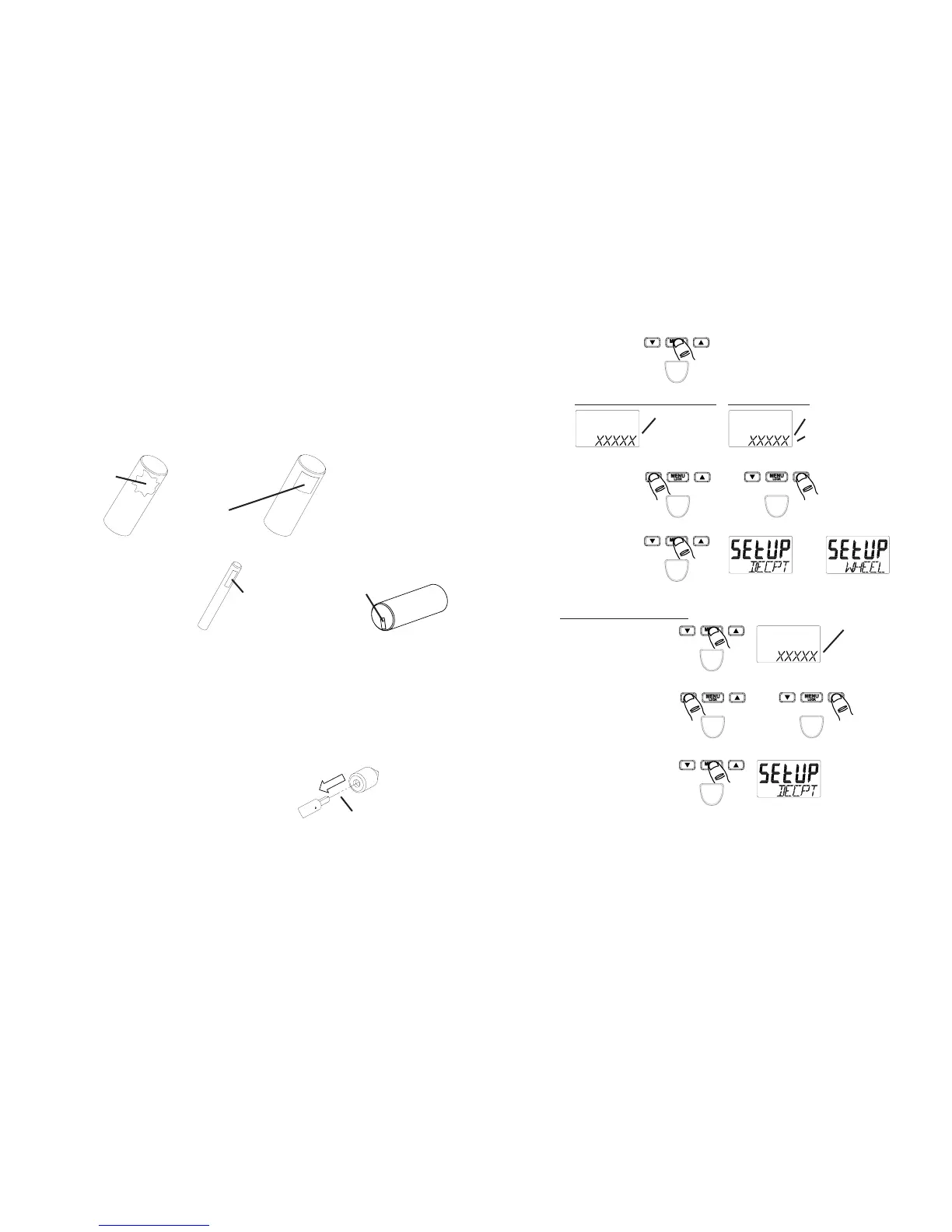

5.0 PREPARATION FOR MEASUREMENT
5.1 Non-Contact Preparation
For Internal operation (Red laser) or External operation
using optional Remote Optical Sensor (ROS-Red LED).
5.2 Direct Contact Preparation
For External operation ONLY using optional Remote
Contact Assembly (HHT13-RCA).
1. Clean
Shaft
As small as 1/8” wide
on side or radius edge
2. Apply 1/2”
square T-5
Reflective
tape
For Small Shafts:
Select and install contact option:
1. Contact Tip (Convex tip shown.
Use Concave tip for small shafts.)
Align flats
16
6. Enter
selection of
Units
7. Select Units
8. Save and
advance
Rotational: REV
Linear: INCH, FEET,
YARDS, CM, METER
Different options displayed for
Internal or External operation.
Internal or External ROS: External RCA:
COUNT
Only
OR Repeat until
desired Units
displayed
COUNT or REV Linear Units
OR
8a. Enter selection
of Wheel
8b. Select Wheel
8c. Save and
Advance
Only for Linear Units:
OR
Toggles
between
10CM and
12IN
Last Wheel
selected is
displayed
