STEP 2: CONNECTING TO THE COLD WATER LINE
1) Locate cold water angle stop shut off valve underneath the sink and turn it off. Open cold water
faucet to release the pressure. If water continues to come out of faucet with angle valve turned off,
the house main will have to be turned off.
2) Locate feed water adapter (VV-WWC-1) in the installation kit. The angle needle valve (VV-WNV-
4) should be installed into the feed water adapter (VV-WWC-1) prior to connecting assembly to the
feed water line. See figure #3. To prevent leaks, teflon tape must be applied to the angle valve pipe
threads that connect to the feed water adapter. Do not put teflon tape on the needle valve threads for
the compression nut.
3) Disconnect the cold water riser tube and install the feed water adapter.
Caution: The water supply to your unit MUST be from the COLD WATER LINE.
Hot water will severely damage your R.O. System.

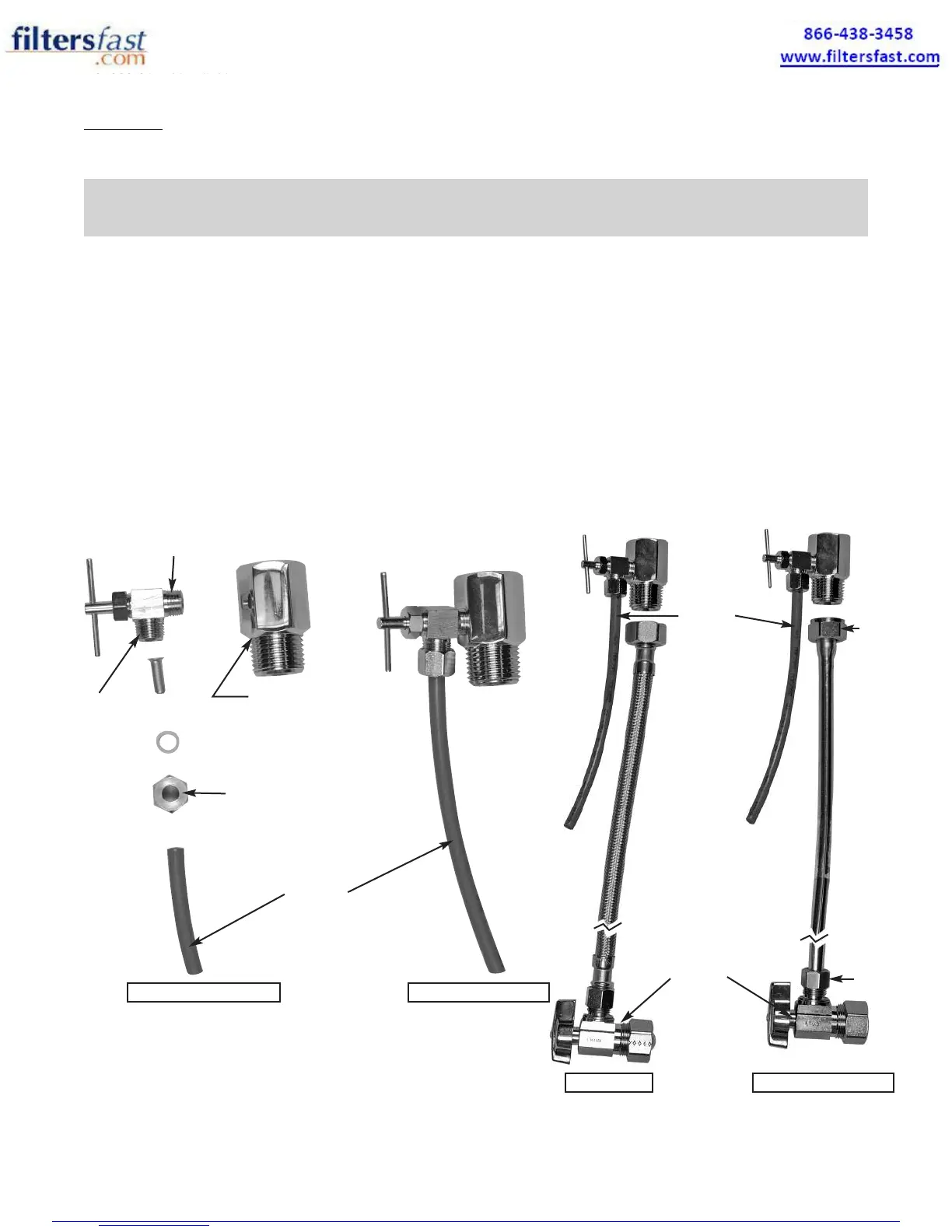

<Fig. 3> <Fig. 4>
Flex Line
Angle stop shut
off valve
Solid
Copper
Line
1/2"
3/8"
Red Tubing
Red Tubing
VV-WNV-4
VV-WWC-1
DO apply Teflon tape
on this pipe thread.
DO NOT apply Teflon
tape on this pipe thread.
Compression
Nut
Feed water adapter components
Feed water adapter assembly
Flex line assembly Solid copper line assembly
