R02000 Service Manual
Printed in the U.S.A. © Copyright 2006 OMNIFILTER
12

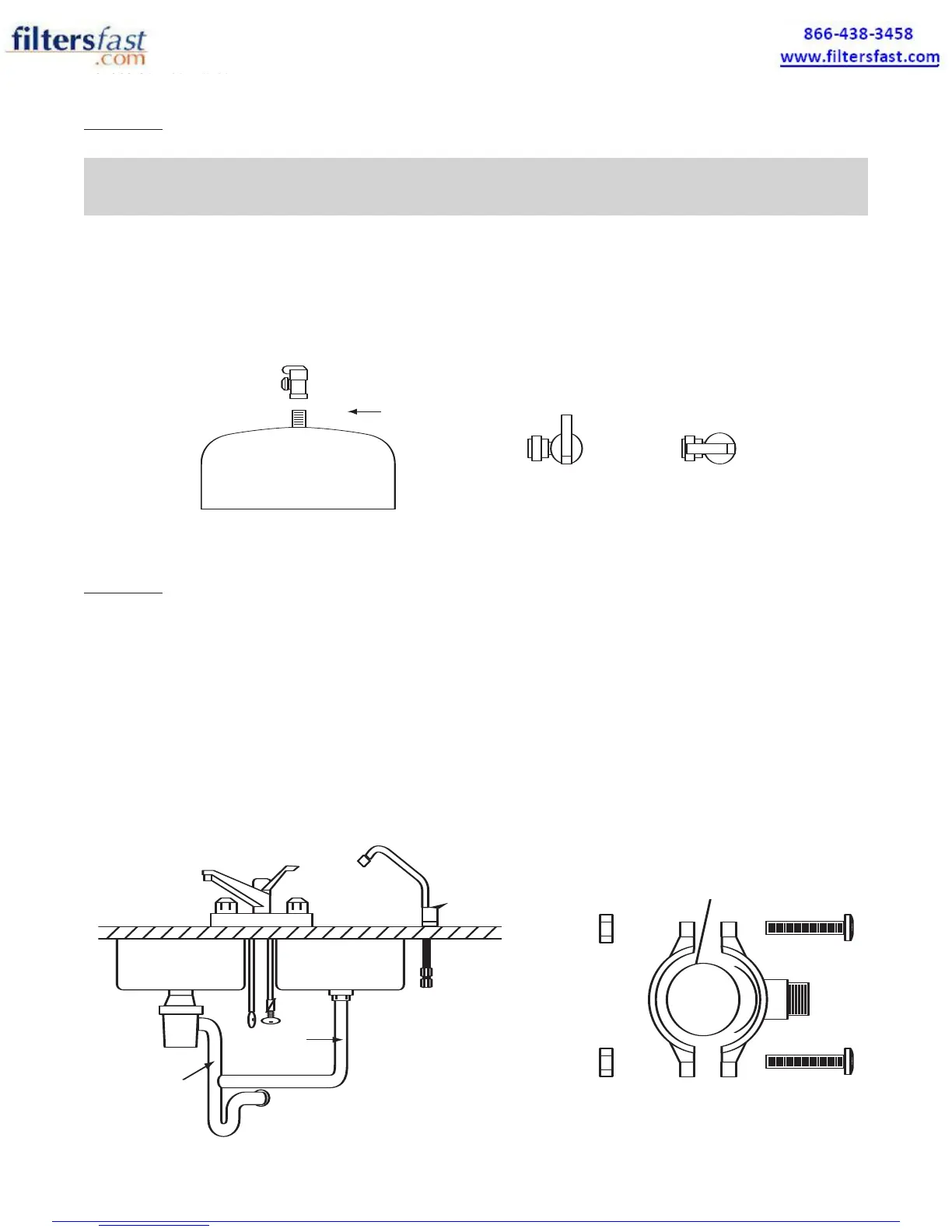

STEP 3: MOUNTING THE TANK BALL VALVE
Note: Do not tamper with the air valve on low side of storage tank. It has been preset at
8-10 psi by the manufacturers.
1) Unplug the plastic cap on the top of the tank.
2) Wrap the thread 3 times with plumbers (Teflon) tape only
.
3) Connect the ball valve to the thread. Make sure it is tight but not over-tight. See <Fig. 5>.
4) Connect the yellow tubing from to the tank ball valve
Turn the tank ball valve off.
STEP 4: MOUNTING THE DRAIN CLAMP
The drain clamp will fit most standard drain pipe 1-1/4". It should be installed above the trap and on
the vertical tailpiece. See <Fig. 6>
1) Position the drain saddle in desired location, mark spot through thread outlet, remove saddle.
2) Drill 1/4"(6.3mm) hole into the drain pipe above the water line of trap.
3) Align the hole drilled in the drain pipe with the drain saddle using a drill bit or other narrow straight
object and tighten clamp.
4) Make sure to align drain saddle to drilled hole. Attach drain saddle to drain pipe and tighten the two
screws evenly. See <Fig. 7>.
5) Connect 3/8" black tubing to drain clamp.
ON POSITION
OFF POSITION
<Fig 5>
TOP VIEW OF TANK BALL VALVE
(VV-BLPO14WJG)
ON POSITION
RO FAUCET
DRAIN PIPE
NEVER
MOUNT
HERE
MOUNT
DRAIN VALVE
<Fig 6>
<Fig 7
