R02000 Service Manual
Printed in the U.S.A. © Copyright 2006 OMNIFILTER
11
4) Please follow <Fig. 4> for flex line and solid copper riser installation.
a) Flex line:
Loosen nut and separate cold water riser tube from faucet shank. Gently bend riser tube so that
feed water adapter fits onto faucet shank. Replace the existing cone washer with the new washer
if needed. The new washer is provided in the installation kit. Reinstall riser tube onto feed water
adapter (VV-WWC-1) and tighten.
b) Solid copper riser tube: follow procedure (4a) except you may need to cut a piece of the riser
tube about 3/4" or 1" so the feed water adapter can fit between the faucet and riser tube.
5) Connect red tubing to angle needle valve (VV-WNV-4).
a) Slide the hex chrome plated compression nut with the thread facing the end of the red tubing
b) Slide the white plastic ferrule onto the red tubing.
c) Install the white tube insert into the end of the red tubing.
d) Push the red tubing with the white insert into the angle needle valve.
e) Use a wrench to securely tighten the hex chrome plated compression nut with the matching
compression thread.
f) Do not use Teflon tape on this compression connection.

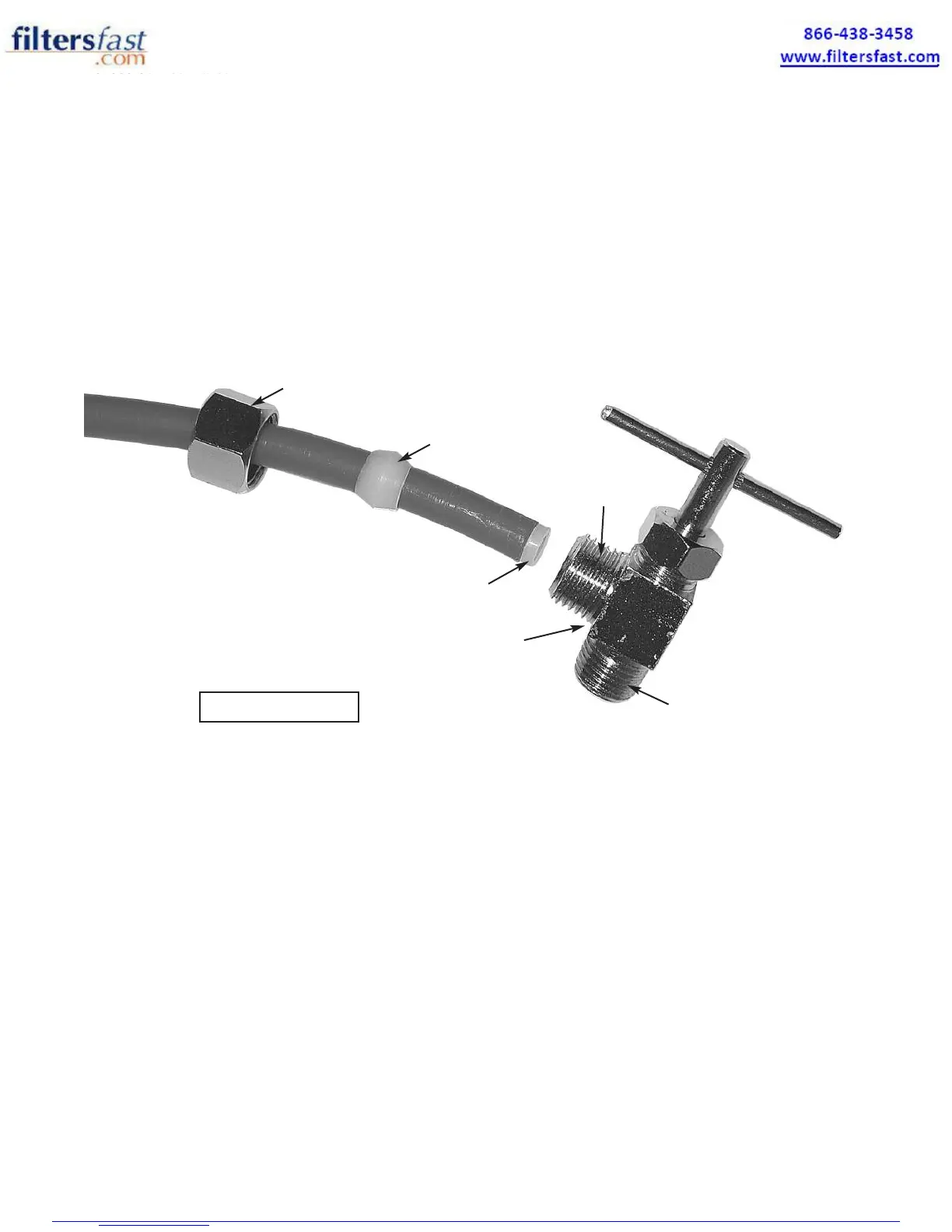

Feed water tubing connection
Angle needle valve
(VV-WNV-4)
White tube insert
White plastic ferrule
Hex chrome plated compression nut
DO apply Teflon tape
on this pipe thread.
DO NOT apply Teflon
tape on this pipe thread.
