R02000 Service Manual
Printed in the U.S.A. © Copyright 2006 OMNIFILTER
6

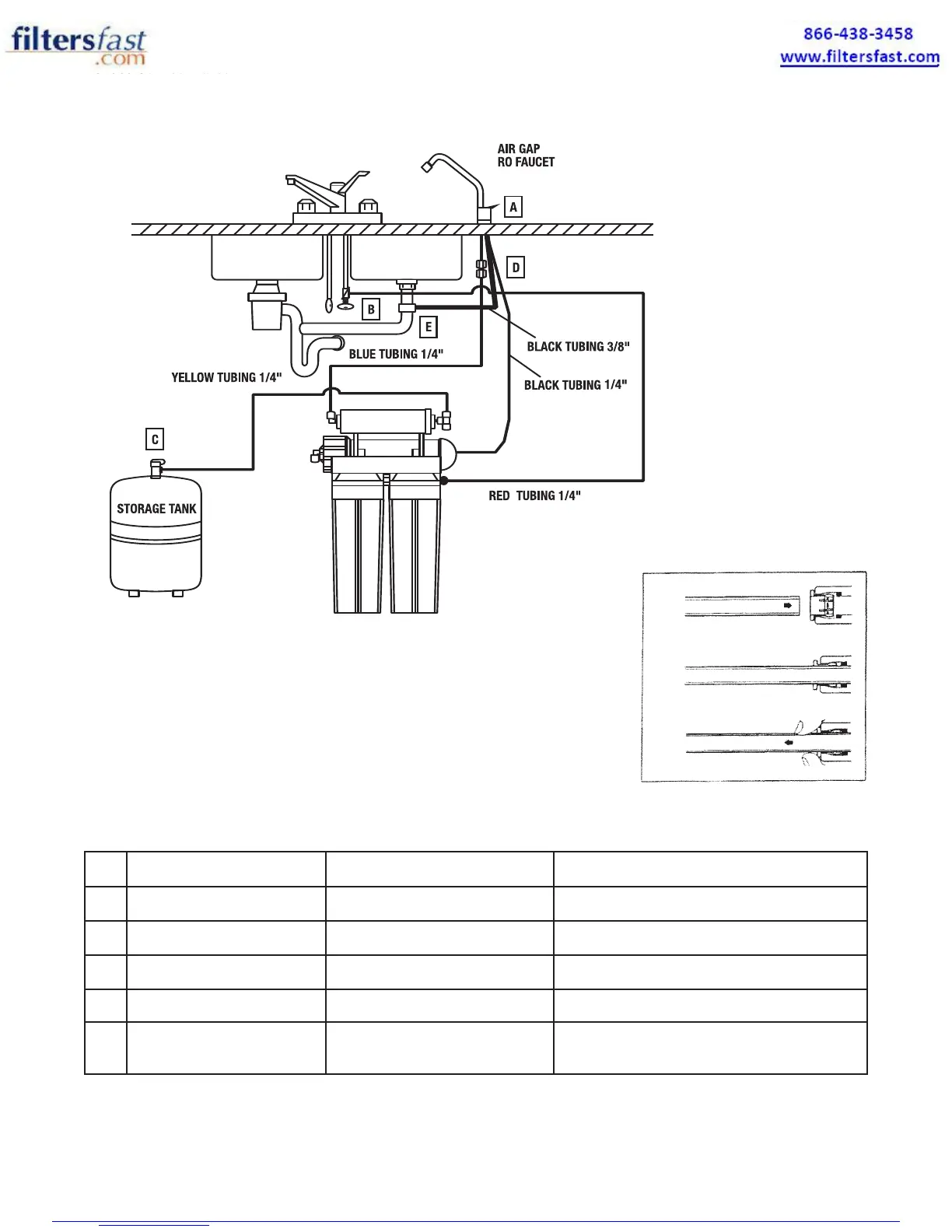

Please follow by 4 color coded tubing connection to complete installation
4 Connections Color of Tubing Description
A
RO Faucet Blue RO Water to the Faucet
B
Feed Water Valve Red Feed Water to RO System
C
Tank Ball Valve Yellow RO Water to Storage Tank
D
Air Gap Connector Black 1/4" Discharge Water to Air Gap Faucet
E
Drain Connector Black 3/8"
Discharge Water From Air Gap Faucet
to Drain
CAUTION: When
cutting supplied tubes,
predetermine the
length by measuring
the distance between
the components to be
connected.
No tools are needed to
connect 4 colored
tubes.
Secure connections are simple
Cut the tube square and push
past the O-ring to the tube stop
Tube is secured in position
Disconnection is just as easy
Slide tube out of fitting
