Omnimount PLAY20x

PN:888-45-232-W-01

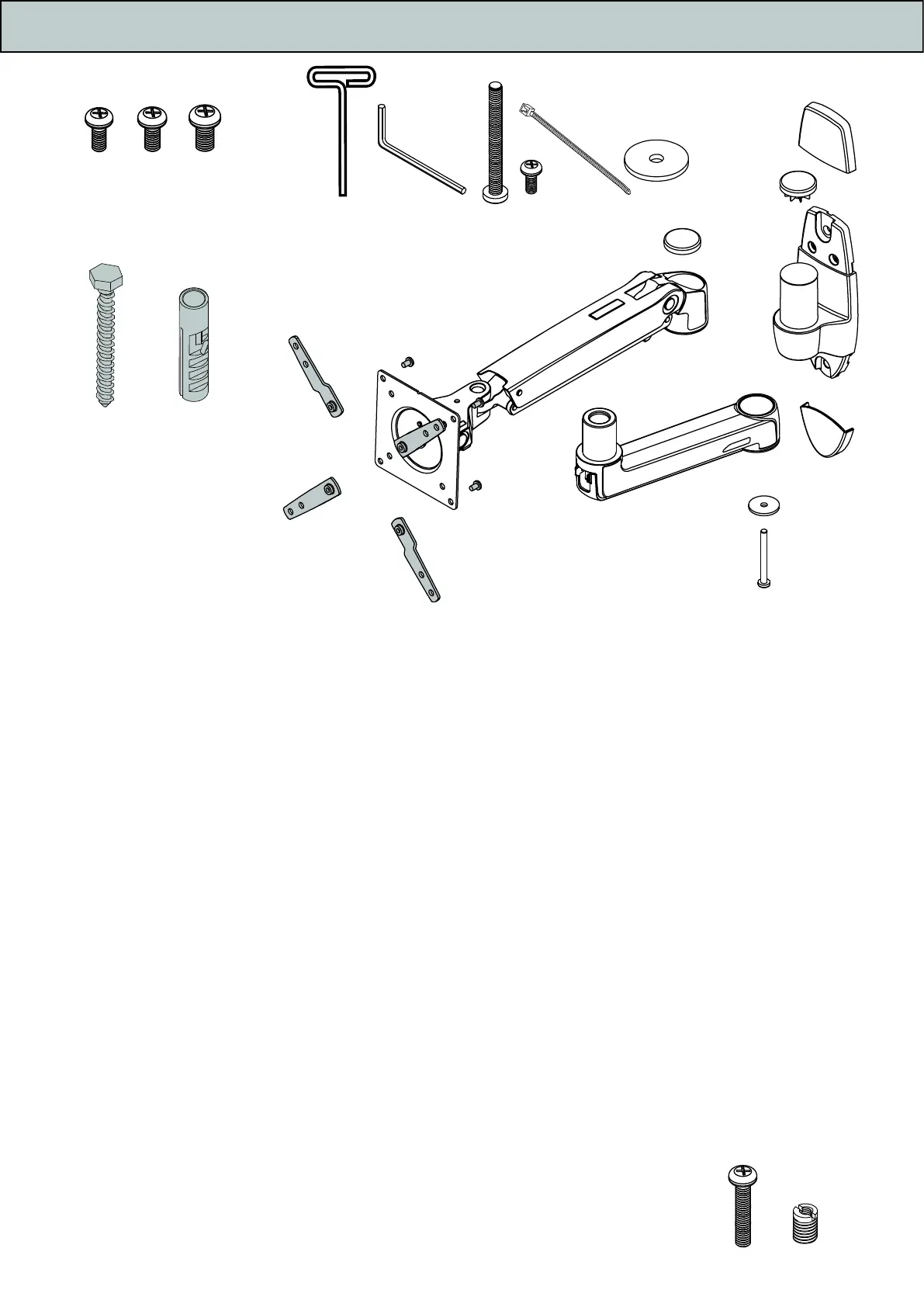

CONTENTS
BOP SCREWS/HARDWARE FOR FLAT PANEL 697-563-00
Part # Qty Description
M-A 4 Philips Screws M4 x 12mm
M-B 4 Philips Screws M5 x 12mm
M-C 4 Philips Screws M6 x 12mm
BOP SCREWS/HARDWARE FOR WALL MOUNTING 697-651-00
Part # Qty Description
W-A 2 Lag Bolt
W-B 2 Wall Anchor
BOP SCREWS/HARDWARE FOR PRODUCT 697-739-00
Part # Qty Description
P-A 1 4mm Allen Wrench
P-B 1 2.5mm Allen Wrench
P-C 1 Phillips Screw M6x60mm
P-D 4 Phillips Screw M5x7mm
P-E 2 Cable Tie
P-F 1 Washer
Contents
Part # Qty Description
1 1 Wall Plate
2 1 Arm Assembly
3 4 V200A Adapter
4 1 Wall Plate Cover - Top
5 1 Wall Plate Cover - Bottom
6 1 Pan/Swivel Tension Screw
7 1 CF Tension Screw
8 1 Optional Extension
9 1 Mid Arm Cap
10 1 Threaded Cap
M-A M-B M-C
W-A W-B
1
2
3
4
5
8
M8M5KIT
Qty Description
4 M5x20mm
4 Thread Reducer
P-A P-B P-C P-D P-E P-F
10
9
