P10

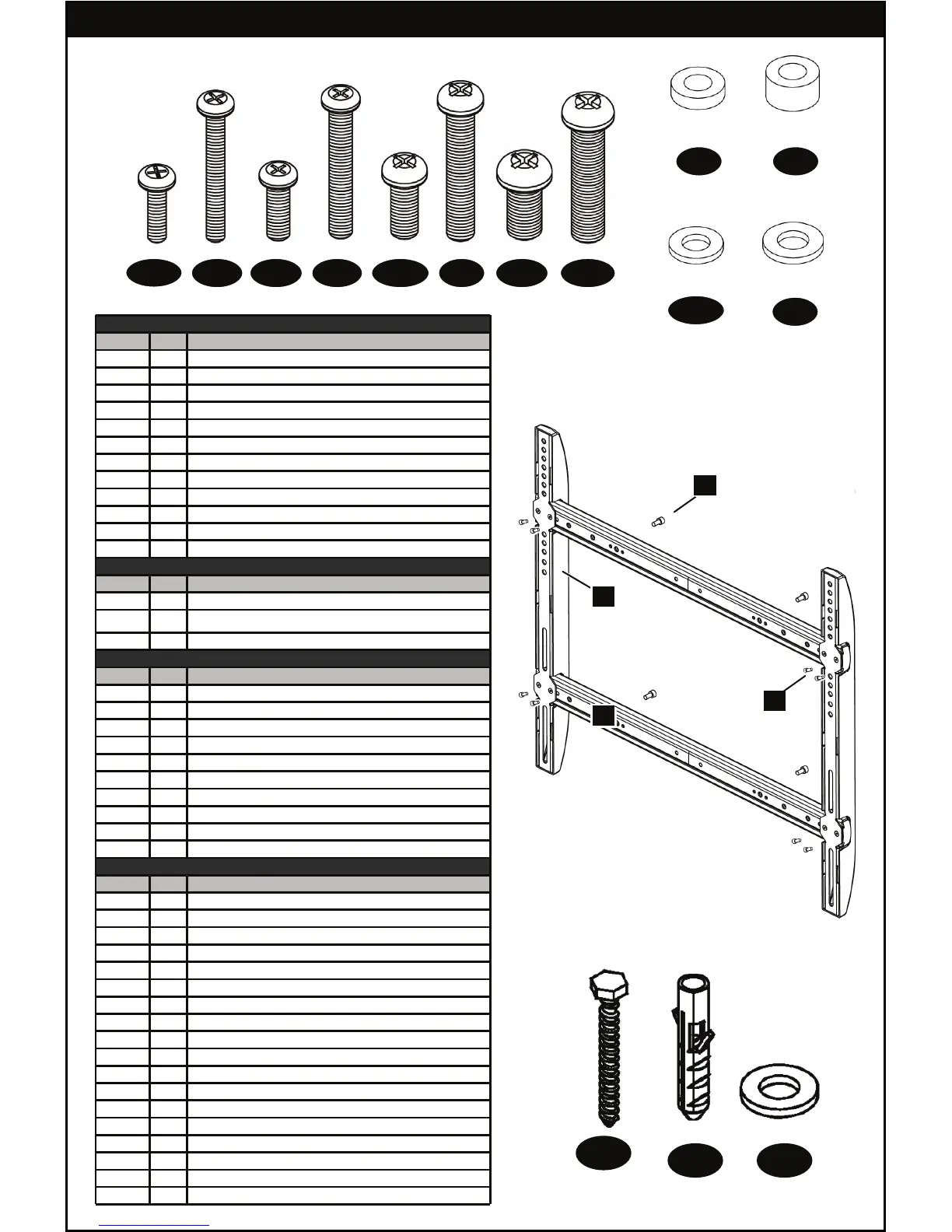

CONTENTS
3
4
2
W-B
W-A
1
M-A M-B M-C M-D M-E M-F M-G M-H
M-I
Spacers
M-L
Washers
M-J
Spacers
M-K
Washers
Screws / Hardware for Flat Panel (Monitor Kit L-U-vD)
Part # Qty Description
M-A 4 Philips screws M4 x 15mm
M-B 4 Philips screws M4 x 30mm
M-C 4 Philips screws M5 x 15mm
M-D 4 Philips screws M5 x 30mm
M-E 4 Philips screws M6 x 15mm
M-F 4 Philips screws M6 x 30mm
M-G 4 Philips screws M8 x 15mm
M-H 4 Philips screws M8 x 30mm
M-I 4 Round Spacers: M6 - M8 x 5mm
M-J 4 Round Spacers: M6 - M8 x 10mm
M-K 4 Round Washers: M4 - M5
M-L 4 Round Washers: M6 – M8
Screws / Hardware for Wall Mounting (Wall Kit 38-4vC)
Part # Qty Description
W-A 4 Lag Bolts
W-B 4 Steel Washer
W-C 4 Wall Anchor
OM1004107vC
Part # Qty Description
P-A 4 M8 Washer
P-B 4 M8 Nylon Lock Nut
P-C 2 M6 Plastic Washer
P-D 2 M6 Metal Washer
P-E 2 M6 Allen Head Screw
P-F 1 2.5mm Allen Wrench
P-G 1 4mm Allen Wrench
P-H 1 5mm Allen Wrench - 6" long
P-I 1 6mm Allen Wrench - 6" long
P-J 1 M8 Open Wrench
Contents
Part # Qty Description
1 1 Universal Adapter
2 2 Universal Adapter Covers
3 4 Adapter Adjustment Screw
4 8 Vertical Rail Countersunk Screw
5 1 Monitor Plate
6 2 Wall Rails
7 2 Wall Rail Covers
8 2 Cantilever Arm
9 6 Cable Covers
10 4 Square Nut
11 4 Square Washer
12 4 M8 Metal Washer
13 4 M8 Allen Head Screw
14 2 Lift and Lock Nut
15 2 Tilt Adjustment Screw
16 1 Vertical Adjustment Screw
17 4 Tension Adjustment Screw
18 1 Wall Template
W-C
To Next Page
