Horizontal suspension:
Please note:

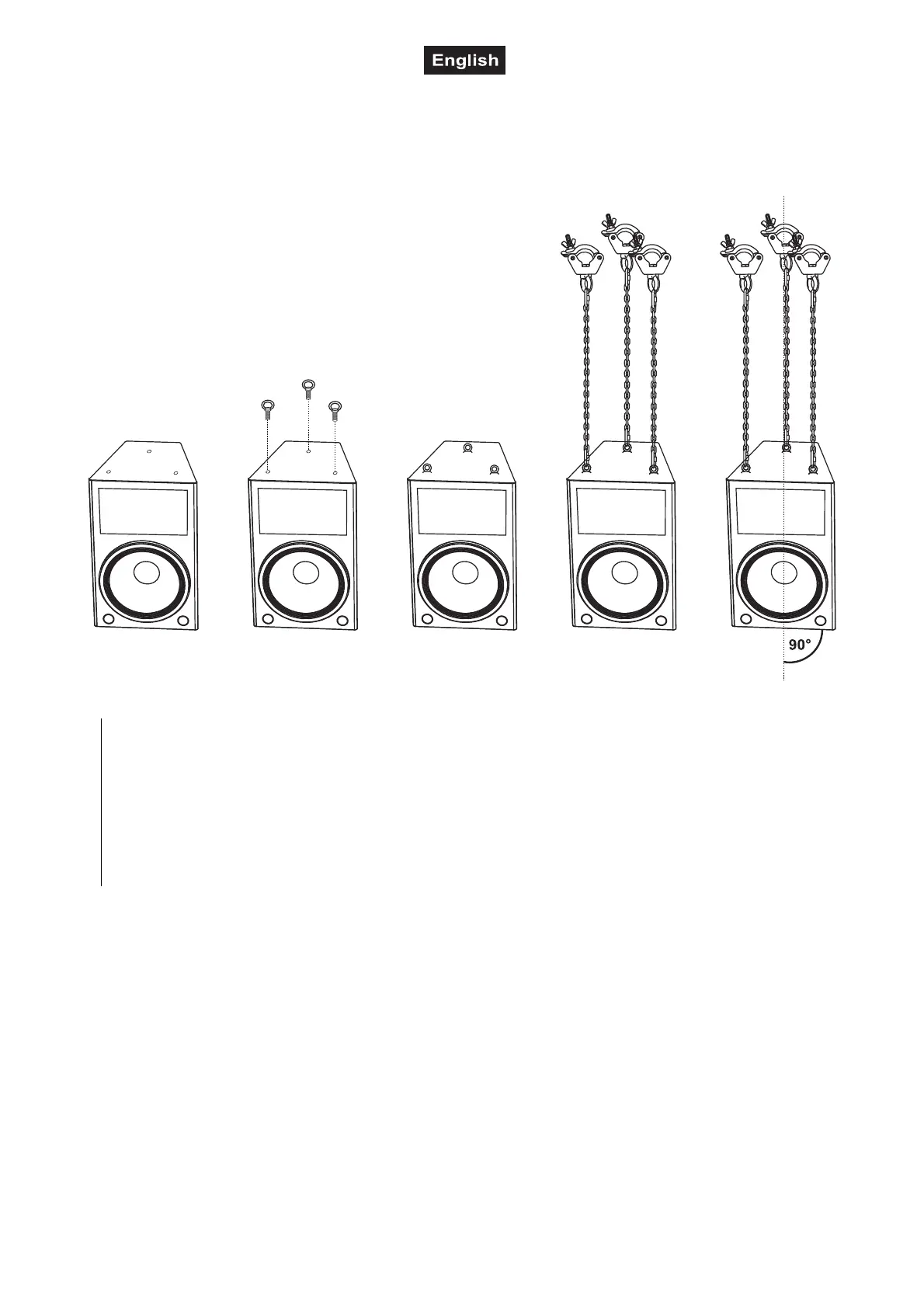

The horizontal installation must always be carried out via three eye-bolts and appropriate chains. The
speaker-system must always be installed absolutely planar (vertical angle 90°, horizontal angle 0°).
Procedure:
Step 1: Unscrew the allen screws with a suitable allen key.
Step 2: Install the eye-bolts in the threaded holes of the speaker-system. The eye-bolts must be
tightened until stop position, hand-tight and without any tools.
Step 3: Install the the screw-on chain link in the first and last chain link and tighten the fixation screw.
Step 4: Install the chain with the screw-on chain link at the installation eyelet of the ring coupler and
tighten the fixation screw.
Step 5: Install the chain with the lower screw-on chain link at the eye-bolt of the speaker-system and
tighten the fixation screw.
Step 6: Install the speaker-system in the trussing.
