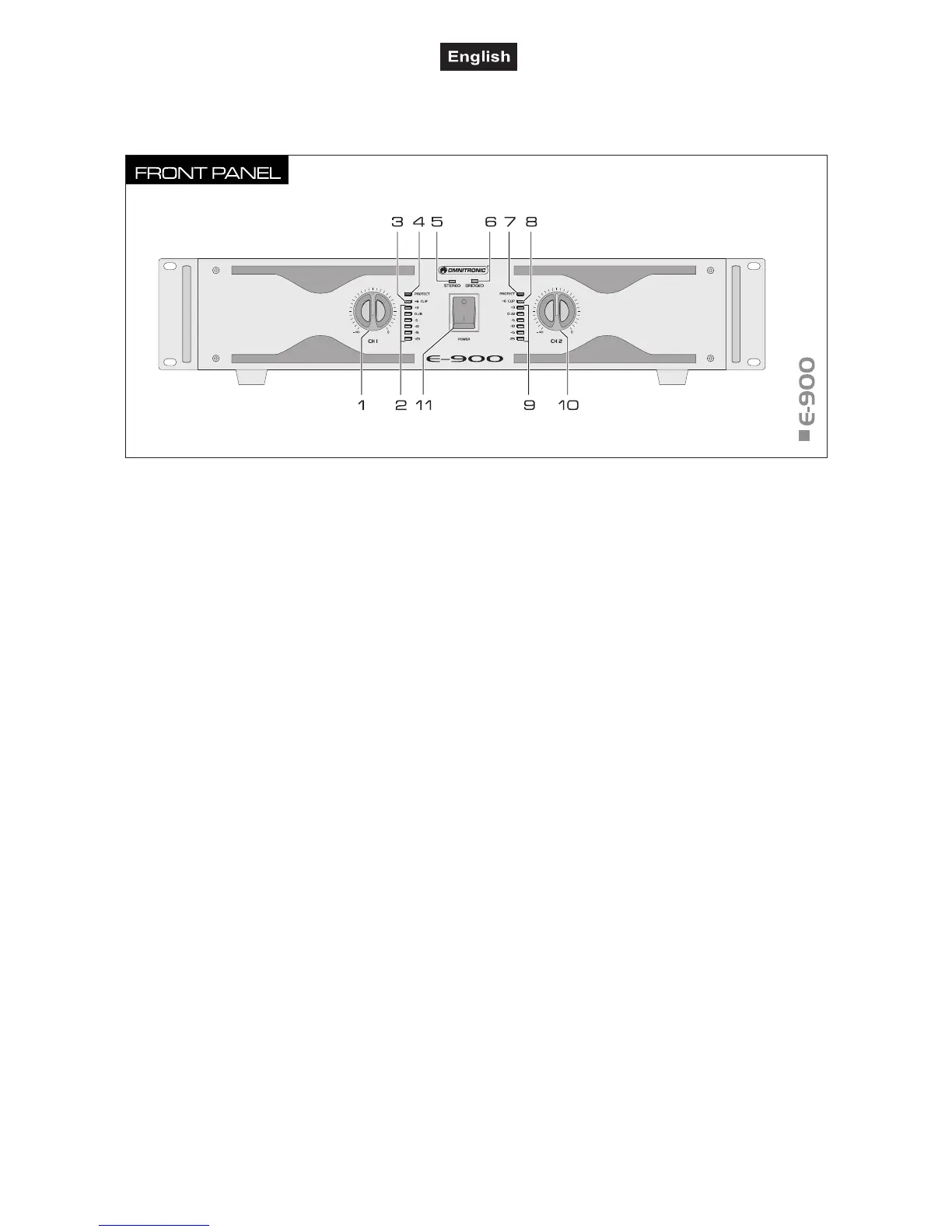

5.2 Operating elements and connections
This user manual describes the E-900 as a reference. The other models are similar in construction.
1
Level control for channel 1
2 Level meter for channel 1
3 Clip indication for channel 1
4 Protection indication channel 1
5 Stereo mode indication
6 Bridge mode indication
7
Protection indication channel 2
8 Clip indication for channel 2
9 Protection indication channel 2
10 Level meter for channel 2
11 Power on/off
