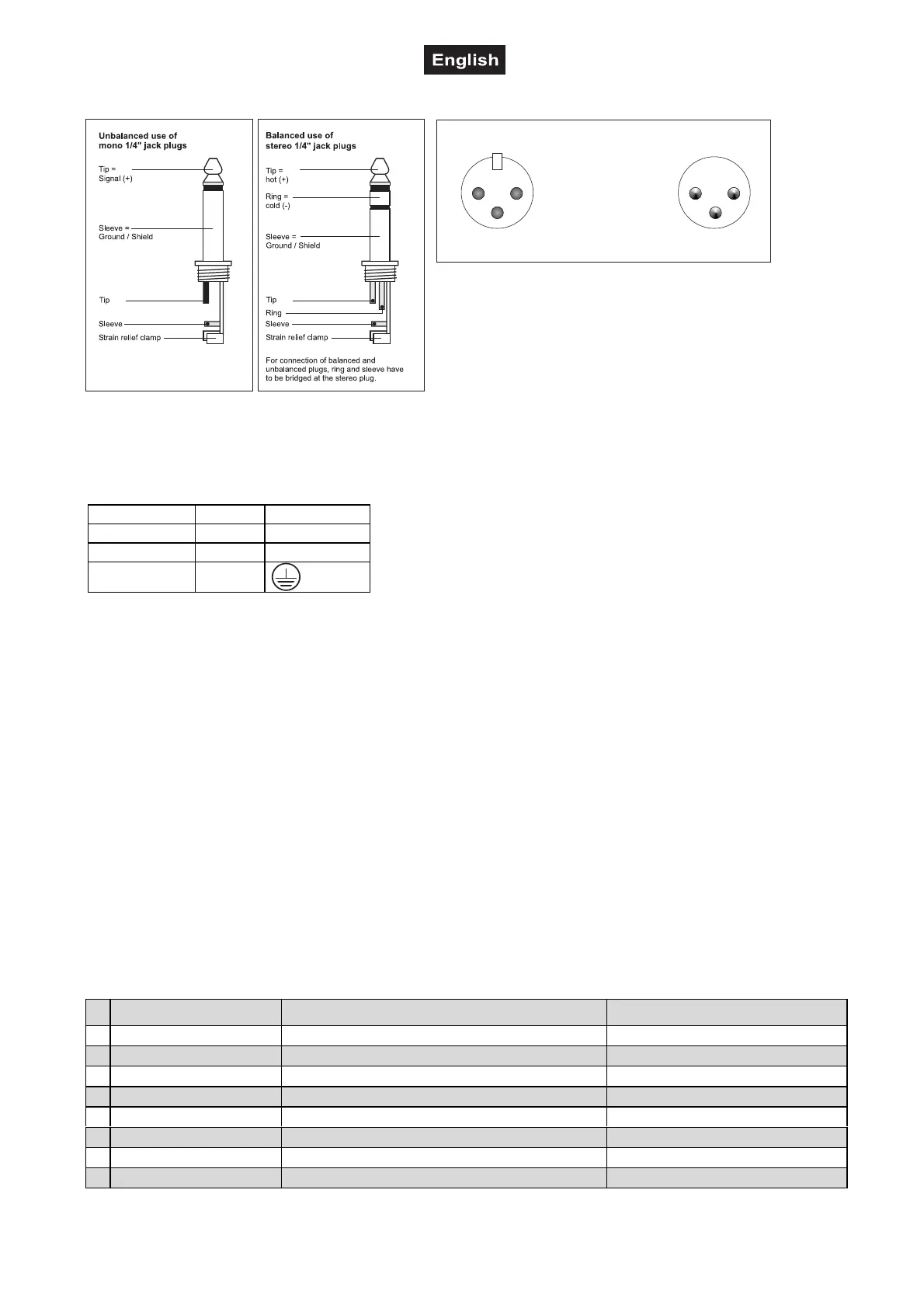

Balanced use with XLR connectors
1 = Ground / Shield
2 = Hot (+)
3 = Cold (-)
For unbalanced use pin 1 and pin 3 have to be bridged
Input Output
Occupation of the connectors:
6.2 Connection with the mains
Connect the device to the mains with the enclosed power supply cable.
The occupation of the connection cables is as follows:
Cable Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
The earth has to be connected!
If the device will be directly connected with the local power supply network, a disconnection switch with a
minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
The device must only be connected with an electric installation carried out in compliance with the IEC-
standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum
fault current of 30 mA.
7. OPERATION
■ Switching on and off
Switch on the device via the power switch. The power indicator lights up orange. After operation, switch off
the unit again via the power switch.
■ Level adjustment
Feed a signal to the processor. Use the Level control to match the output level of the effect processor to the
input of the subsequent unit connected. If the level is too high, overload of the subsequent unit will result. In
this case, turn back the control correspondingly. If the level is too low, a poor signal/noise ratio will result.
■ Effects selection
Select one of the following 16 effects with the effect selector:
Effect Function Recommendation
1 Vocal removes Removes lead vocals from stereo recordings Vocals
2 Warm hall Acoustic guitars, pianos, vocals
3 125ms slap back delay Delay of the input signal Vocals, guitars
4 Auto-wah Combination of reverb and guitar effect Lead instruments
5 Chorus with reverb Combination of reverb and more body Guitars, synths, pianos
6 190ms delay Delay of the input signal Acoustic instruments
7 Bright hall reverb Powerful reverb in large room Drums, guitars, vocals
8 Rotary speaker Speaker emulation Organs, keyboards
