5. SOFTWARE EDITOR
Under Windows, the software editor will let you
customize all editable controllers, and create,
save and load presets.

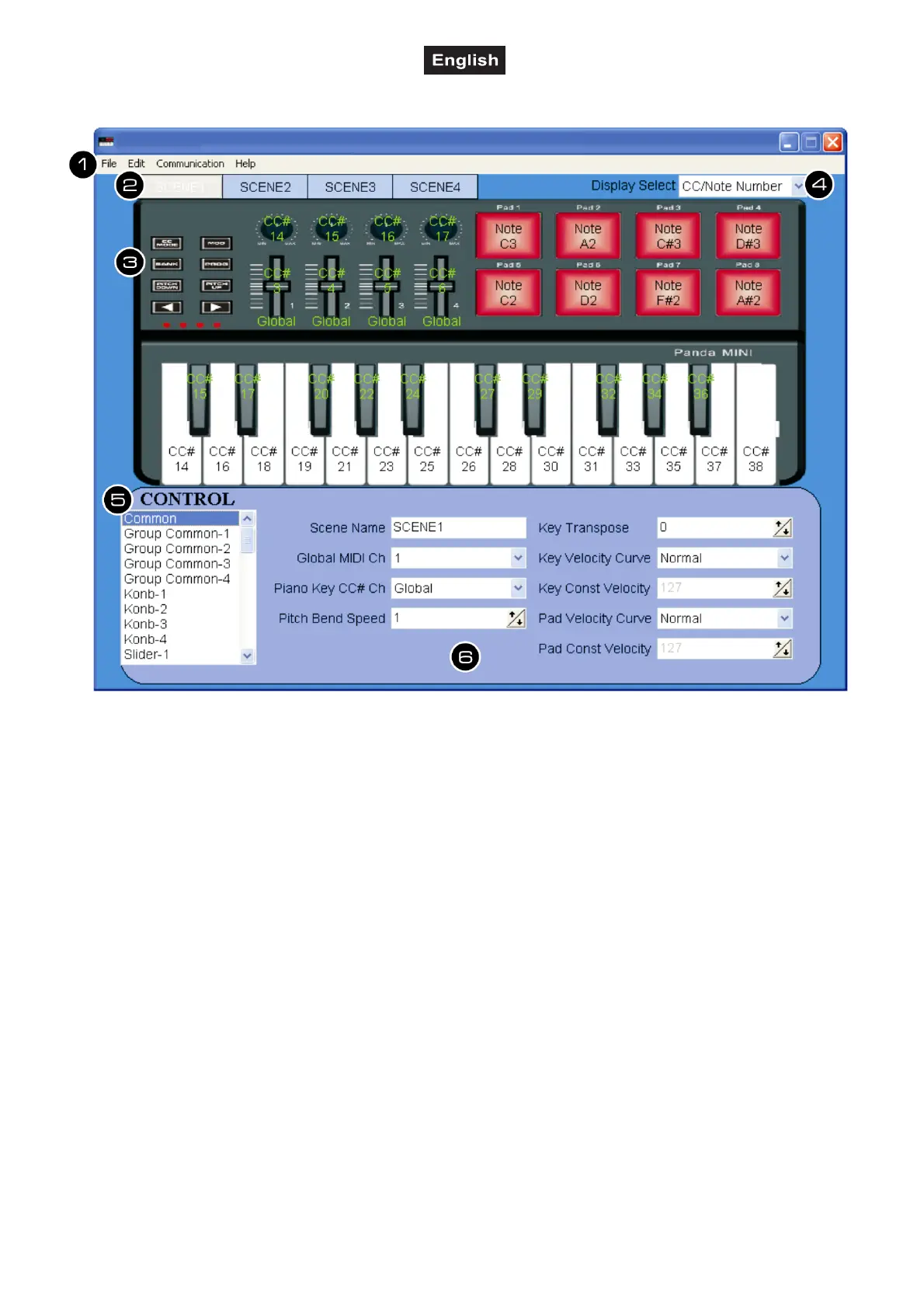

1 Menu bar
• File: For creating, saving and loading a data
file.
• Edit: Copy and paste for editing parameters.
• Communication: For reading data from your
controller and for transferring settings to your
controller.
• Help: Displays the software version of the
editor.
2 Scene 1 to 4
Click the Scene button of the scene you would
like to edit.
3 Device
This area shows an image of the controller.
4 Parameter display switch
Switches the parameters that are shown over
each control in the device image.
5 Control menu
For selecting the control elements whose
parameters you would like to edit.
6 Parameter edit area
This area enables you to view and edit the
parameters of the selected control.
