4. DESCRIPTION
8-channel audio mixer
The OMNITRONIC MZD-88 is a audio mixer with matrix system of 8 input and 8 outputs which allows
for multiple output configurations and inputs mixing. The 8 outputs are divided in 4 groups. Thus it’s possible
to supply 4 different PA zones with a stereo output by routing different input signals to these zones without
having to change the cable configuration. It’s also possible to obtain 8 outputs with different mixing as every
input has its own level and PAN controls.
• Matrix input assignment: 8 audio inputs are freely assignable to each of the 8 outputs
• Division of the 8 outputs into 4 groups; each with separate level and pan control per channel
• Ultra flexible configuration modes; distributes the signal of up to 8 audio sources to e.g. 8 mono zones or 4
stereo zones, each with a different output signal
• Inputs and outputs via balanced XLR jacks
• Frequency range 20-20,000 Hz
• 19" dimensions for rack installation, 2 U

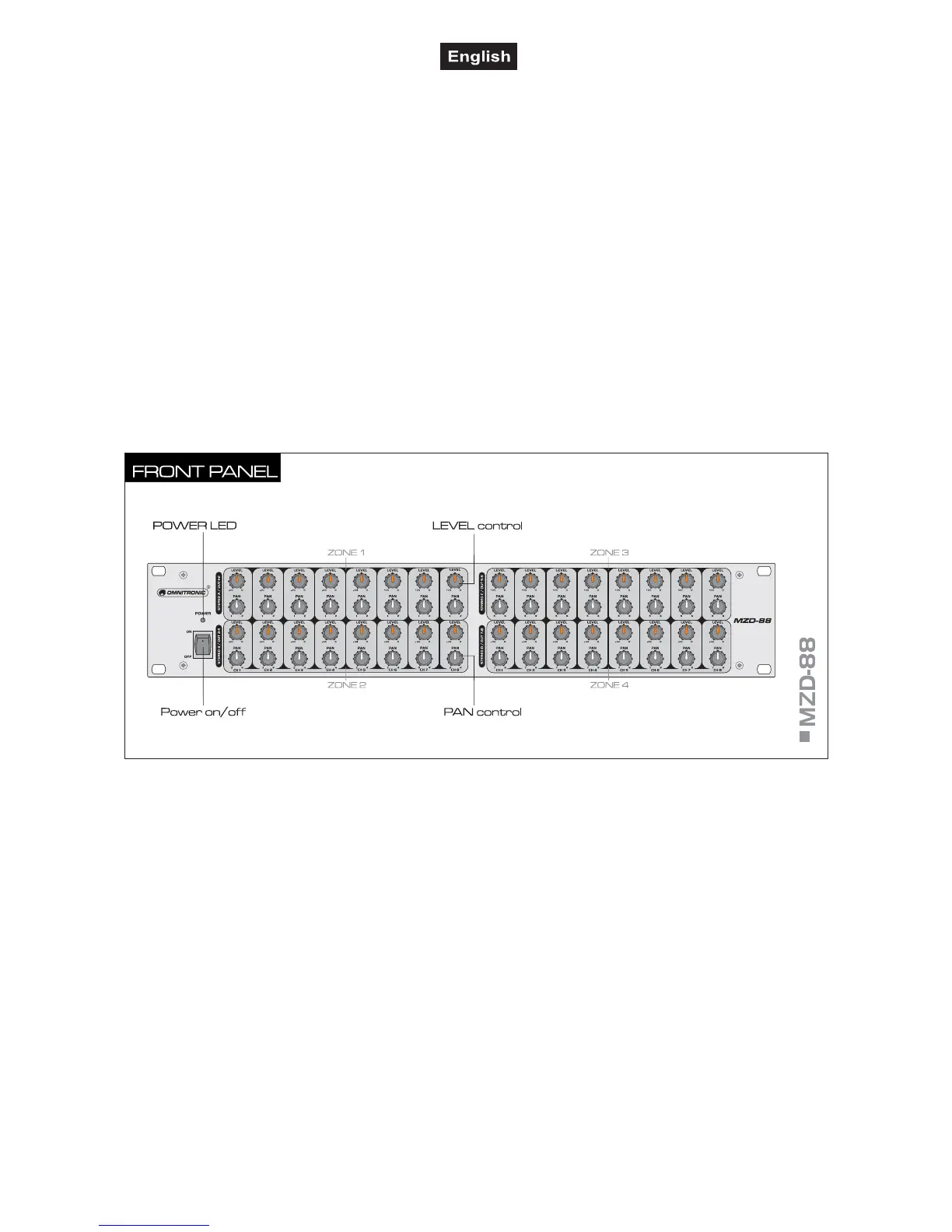

The MZD-88 is designed for professional application. The connectors are located on the rear panel; the
operating elements are on the front panel. The unit features four PA zones with eight identical channels
each.
■ Power on/off
Press this button, to turn the MZD-88 on and off.
■ POWER LED
The power indicator lights up when the MZD-88 is
powered on.
■ LEVEL control
For adjusting the input level at the respective stereo
output at the rear panel. Turn the control clockwise
beyond the detented position to increase the level up to
12 dB.
■ PAN control
Positions the input signal between the left and right
output of the respective zone. In mid-position, the signal
level is equal at both outputs.
