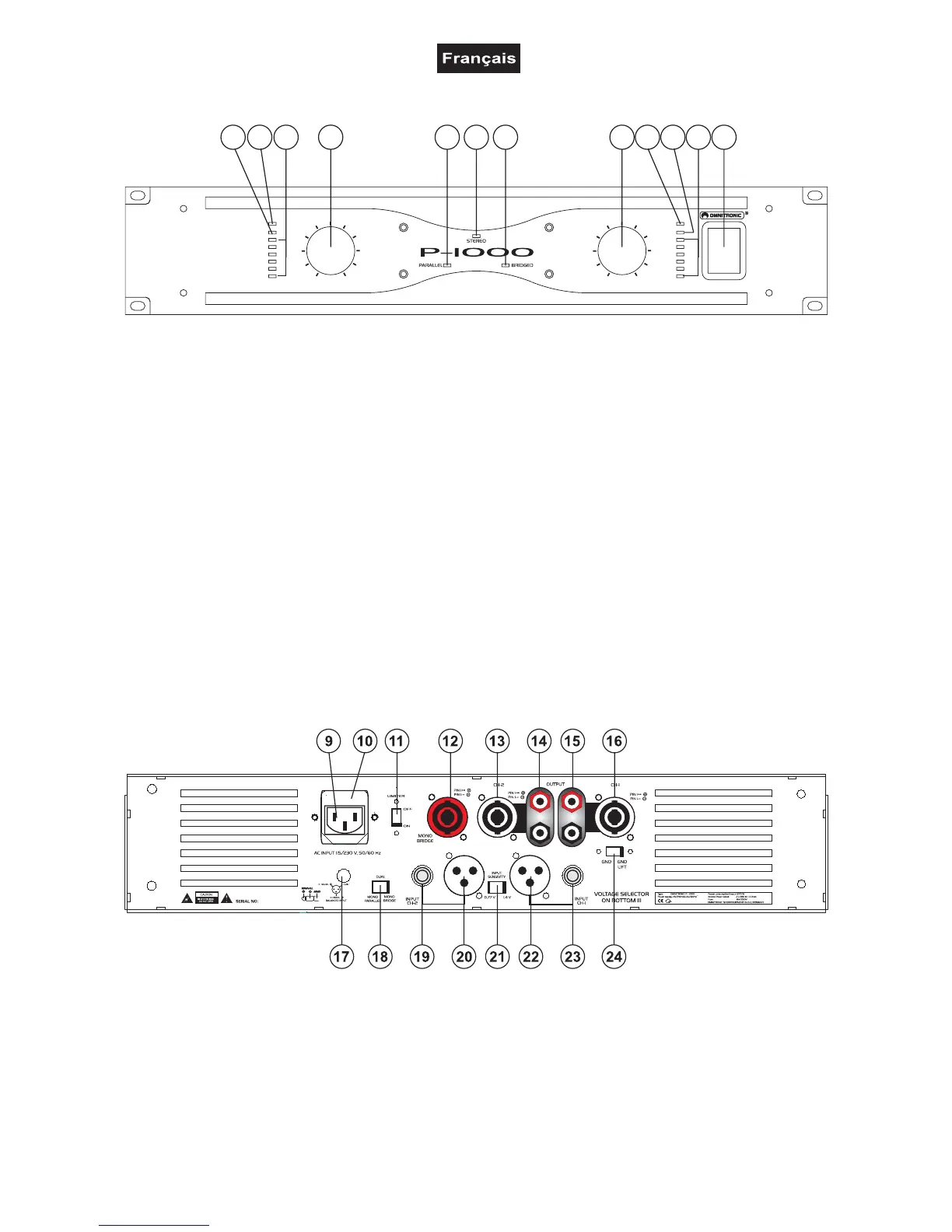

Panneau avant
0 010 10
CH-1 CH-1
POWER
PROTECT
+35 CLIP
+30
+15
+5
0dB
-10
-20
PROTECT
+35 CLIP
+30
+15
+5
0dB
-10
-20
12 34 5 62 7867 8
(1) INTERRUPTEUR ON/OFF (POWER)
Pressez cet interrupteur pour mettre l'appareil sous tension.
(2) REGULATEUR DE VOLUME
Ajustez le volume desiré ici.
(3) DEL STEREO
Cet DEL est allumé en mode stéreo.
(4) DEL PARALLEL
Cet DEL est allumé en mode parallel.
(5) DEL BRIDGED
Cet DEL est allumé en mode bridged.
(6) DELS DE NIVEAU
Les DELs clignote en dépendece du niveau ajusté.
(7) DEL CLIP
Cet DEL clignote quand le signal de sortie est distort.
(8) DEL PROTECT
Cet DEL est allumé après de mettre l'appareil en service, quand les enceintes ne sont pas connectés
avec l'amplificateur.
Quand cet DEL est allumé pendant l'operation, un des courts de protection est active. En ce cas,
débranchez l'appareil est contrôlerle.
Dos de l'appareil
(9) CONNEXION DE TENSION
Connecter le câble d'alimentation ici.
(10) PORTE-FUSIBLE
Douille de fusible. Echangez un fusible par des modèles identiques et seulement quand l'appareil est éteint.
(11) LIMITER
(12) DOUILLE DE SORTIE MONO BRIDGE
Pour connecter les enceintes en mode de ponte.
(13) CH-2 DOUILLE DE SORTIE SPEAKER
Pour connecter les enceintes de canal 2.
