10 Cue level
Level control for headphones connected to the jack
PHONES.
11 Master level
Level control for the master signal at the master output.
12 Cue fader
For crossfading between channel 1 and channel 2 for the
headphone output. In mid-position, both channels can be
monitored.
13 Tone controls
3-way equalizers for channel 1 and channel 2: HIGH,
MID, LOW.
14 Gain
Gain controls for adjusting the input amplification fo
channel 1 and channel 2.
15 Output level LED meter
10-digit LED meter of the stereo master signal within the
range of -24 dB to +12 dB.
16 Power indicator
When the unit is powered on, the indicator lights up.

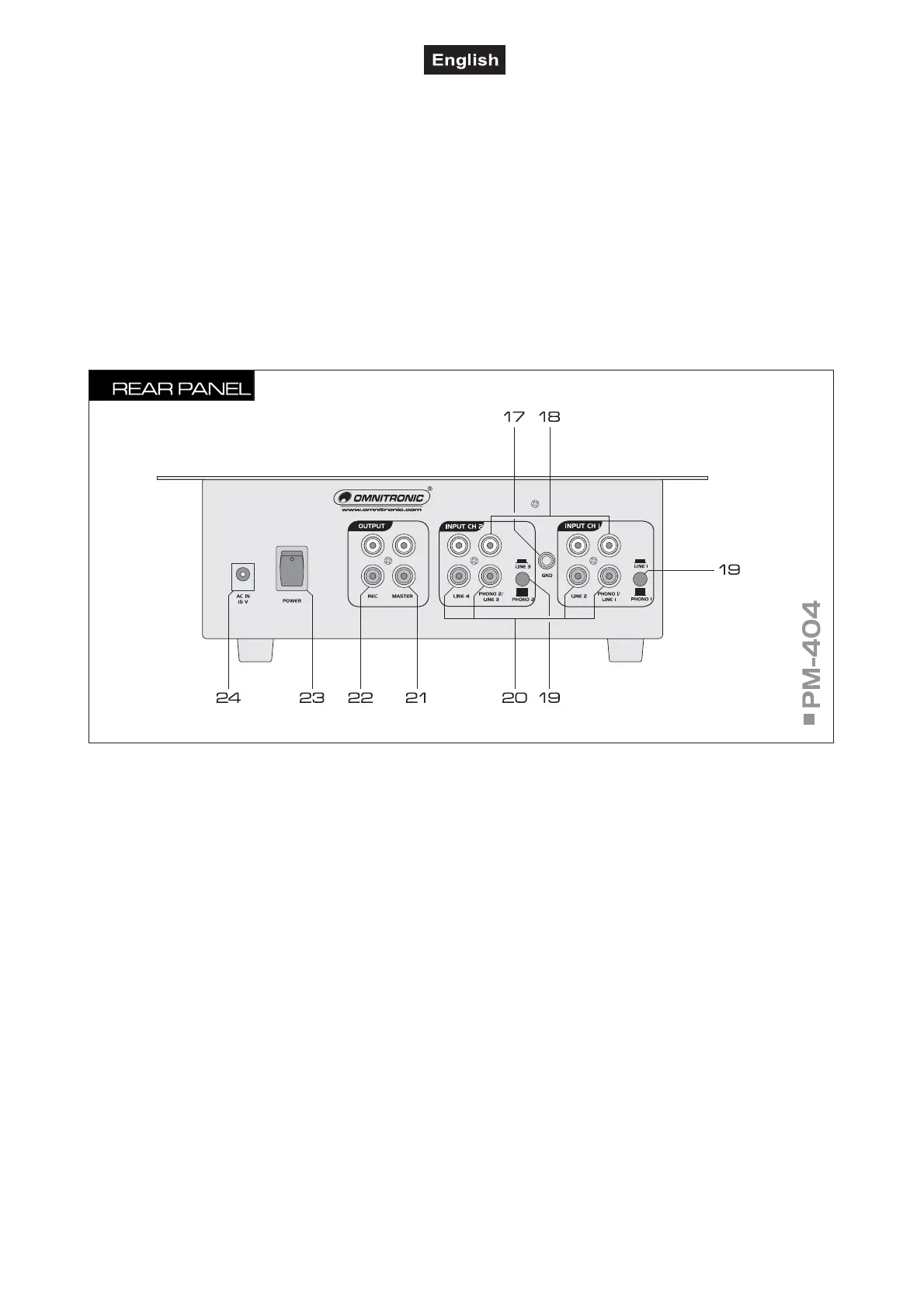

21 Master output
Stereo master output (RCA, unbal.) for connecting an
amplifier.
22 REC output
Stereo output REC (RCA) for connecting a recording unit.
The recording level is independent of the position of the
master control.
23 Power on/off
Press this button to turn the unit on and off. When
powered on, the POWER indicator at the front panel
lights up.
24 AC IN jack
Plug in the supplied power unit here.
17 GND (ground terminal)
Ground clamping screw for turntables connected to
channel 1 and channel 2.
18 PHONO inputs
Stereo inputs PHONO (RCA) for channel 1 and channel 2
for connecting turntables with magnetic system.
19 Input selector switches
Switches the phono inputs to line inputs.
20 LINE inputs
Stereo inputs LINE (RCA) for channel 1 and channel 2 fo
connecting units with line level outputs (e. g. CD/MP3
player).
