OMP Hobby Edge 540 - Page 16

GasEngineAssembly
Ø GasEngineInstallation
ZhuhaiEdgeSmartDriveTechnologyCo.,Ltd.
www.omphobby.com

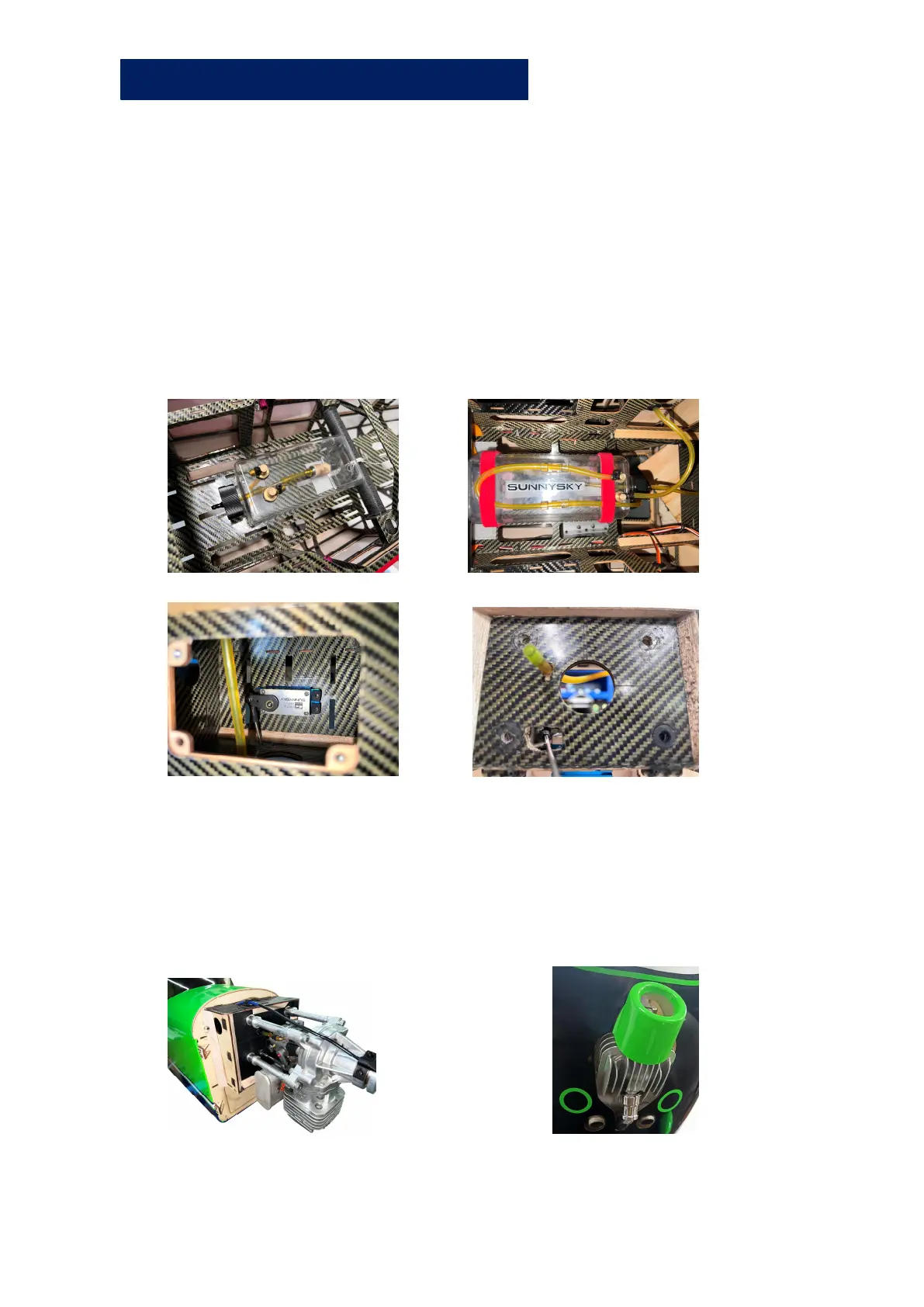

8. Thefueltankfirstfixesthebottomwithvelcro,thenusethe
magiccabletietotieitaccordingtothedirectioninthe
picture.
9. Theinstallationdirectionandheightofthethrottleservo
dependondifferentengines,thefigureusesDLE35RA.
10. Accordingtothecarburetortierodandcarburetoroilinlet,
opentheoilpipeholeandthetierodhole.
11. Theoilpipeholeshouldbeenlarged,andacircleof
electricaltapeiswrappedaroundtheoutsidetoprotectthe
oilpipe.
12. Snapthecowluptoopentheheatdissipationventandthe
exhaustpipeexhaustport
