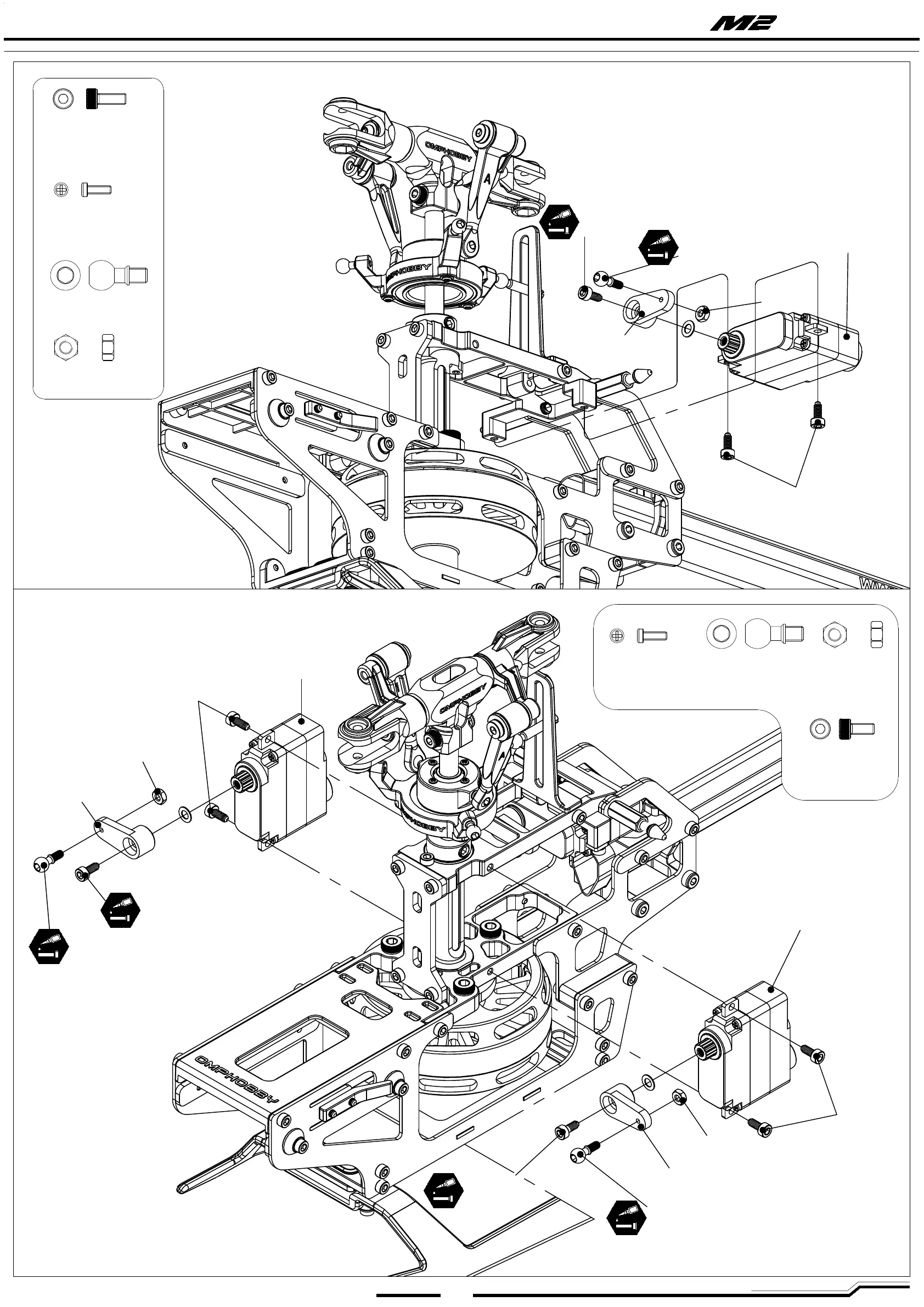

OMP Hobby M2 Explore - Assembly Step 8: Servo Installation; Servo Arm and Linkage Ball Connection; Servo Mounting to Frame

13
EN
WWW.OMPHOBBY.COM
step 8 步骤八
圆头内十字机械牙螺丝
(M1.6x4)x1
球头 (Ø3.175x3-M1.6)x1
螺母 (M1.6)x1
圆头内十字机械牙螺丝
(M1.6x4)x2
球头 (Ø3.175x3-M1.6)x2
螺母 (M1.6)x2
圆柱头内六角螺丝
(M1.6x3mm)x2
圆柱头内六角螺丝
(M1.6x4mm)x4
Socket screw
Socket screw
Linkage Ball
M1.6 Nut
Linkage Ball
Socket screw
M1.6 Nut
Socket screw
圆头内十字螺丝
M1.6x4mm
Socket screw
球头 (Ø3.175x3-M1.6)
Linkage Ball
舵机摆臂
Servo Arm
M1.6 螺母
M1.6 Nut
全金属齿轮/塑胶外壳舵机
圆柱头内六角螺丝
M1.6x4mm
Socket screw
圆头内十字螺丝
M1.6x4mm
Socket screw
球头 (Ø3.175x3-M1.6)
Linkage Ball
舵机摆臂
Servo Arm
M1.6 螺母
M1.6 Nut
圆柱头内六角螺丝
M1.6x4mm
Socket screw
圆柱头内六角螺丝
M1.6x4mm
Socket screw
圆头内十字螺丝
M1.6x4mm
Socket screw
球头 (Ø3.175x3-M1.6)
Linkage Ball
舵机摆臂
Servo Arm
M1.6 螺母
M1.6 Nut
全金属齿轮/塑胶外壳舵机
全金属齿轮/塑胶外壳舵机
-EXPLORE
