OMP Hobby M2 Explore - Assembly Step 9: Flight Controller Wiring; Linkage Rod Connection to Servos; Flight Controller and Receiver Mounting

14
EN
WWW.OMPHOBBY.COM

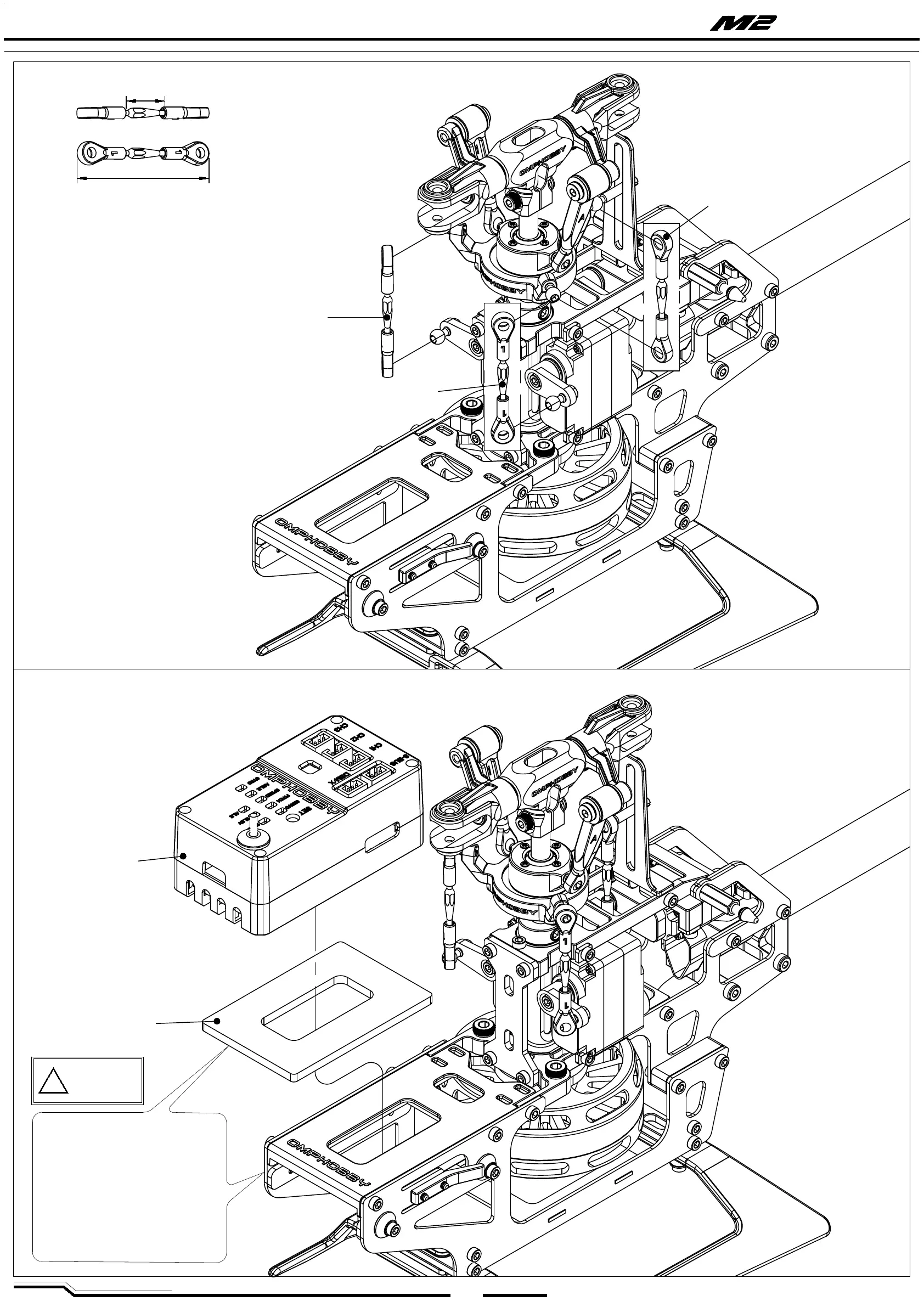

step 9 步骤九
连杆约 28.2mmx3
Linkage rod
Approx.28.2mmx3
CH3 连杆
CH3 Linkage rod
CH2 连杆
CH2 Linkage rod
CH1 连杆
CH1 Linkage rod
飞控
Flight Control
双面胶
Double-sided tape
注意：先将双面减震胶与接收机板
完全贴合好，再安装飞控。飞控必
须与机身完全平行，以达到最佳的
飞行效果。
!
注意
CAUTION
Note:Fist,the double-sided damping rubber
should be fully fitted with the receiver board,
and then install the flight control.The flight
control must be completely parallel to the
fuselage to achieve the best flight performance.
约28.2mm
约10mm
