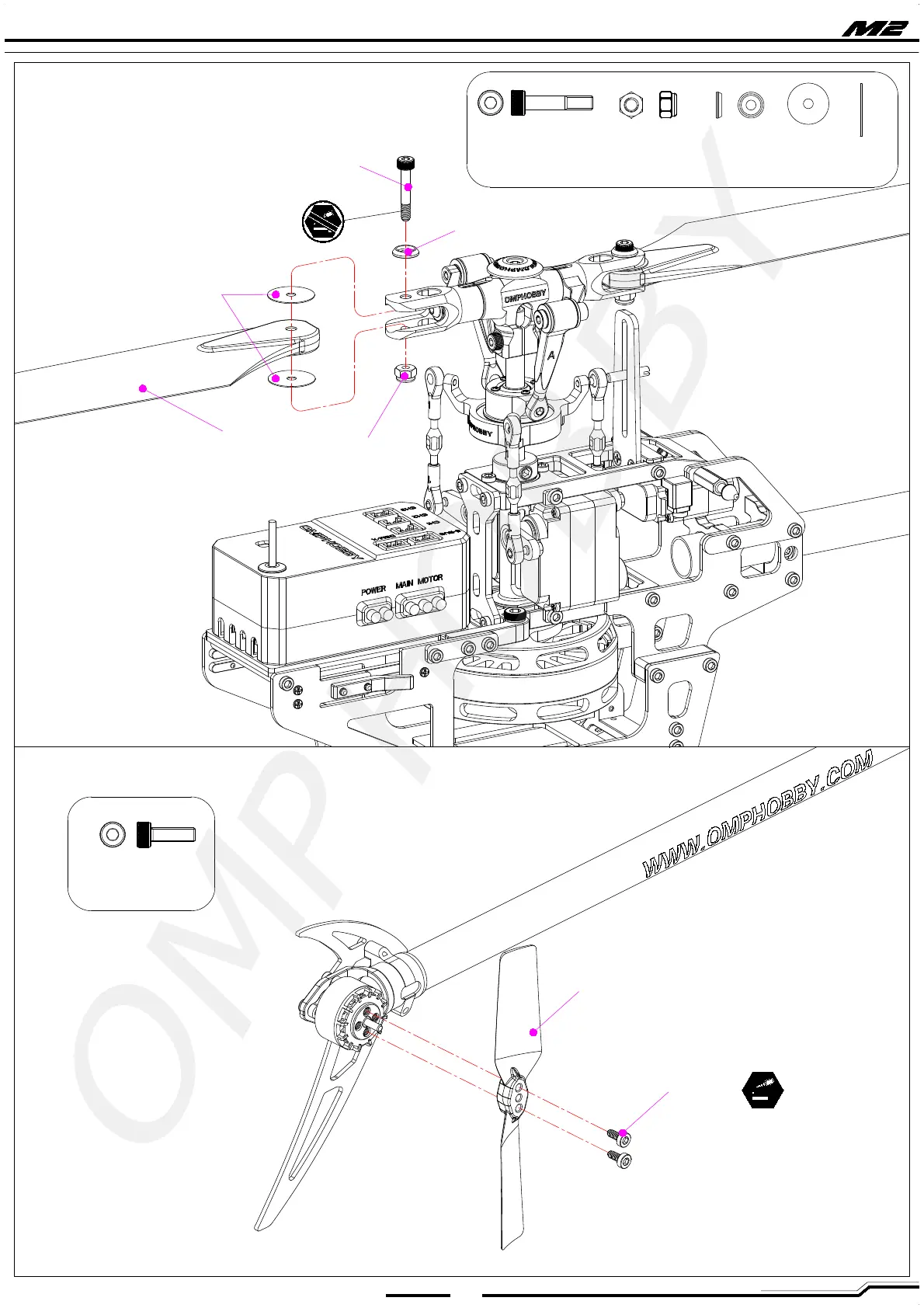

OMP Hobby M2 - Step 10: Main and Tail Blade Installation

15
EN
WWW.OMPHOBBY.COM
step 10 步骤十
圆柱头内六角螺丝
(M2x12mm-L4)x2
M2 螺丝套
垫片
Ø2.1xØ10x0.3mm
主旋翼
M2 防松螺母
圆柱头内六角螺丝
M1.6x6mm
尾旋翼
圆柱头内六角螺丝
(M2x12mm-L4)x2
M2 防松螺母 (M2)x2
M2 螺丝套 ^
横轴轴承垫片
(Ø2.1xØ10x0.3mm)x4
圆柱头内六角螺丝
(M1.6x6mm)x2
M2 Nut
Screw sleeve
Socket screw
Socket screw
M2 Nut
Screw sleeve
Washer
Washer
Main Blade
Socket screw
Socket screw
Tail Blade
