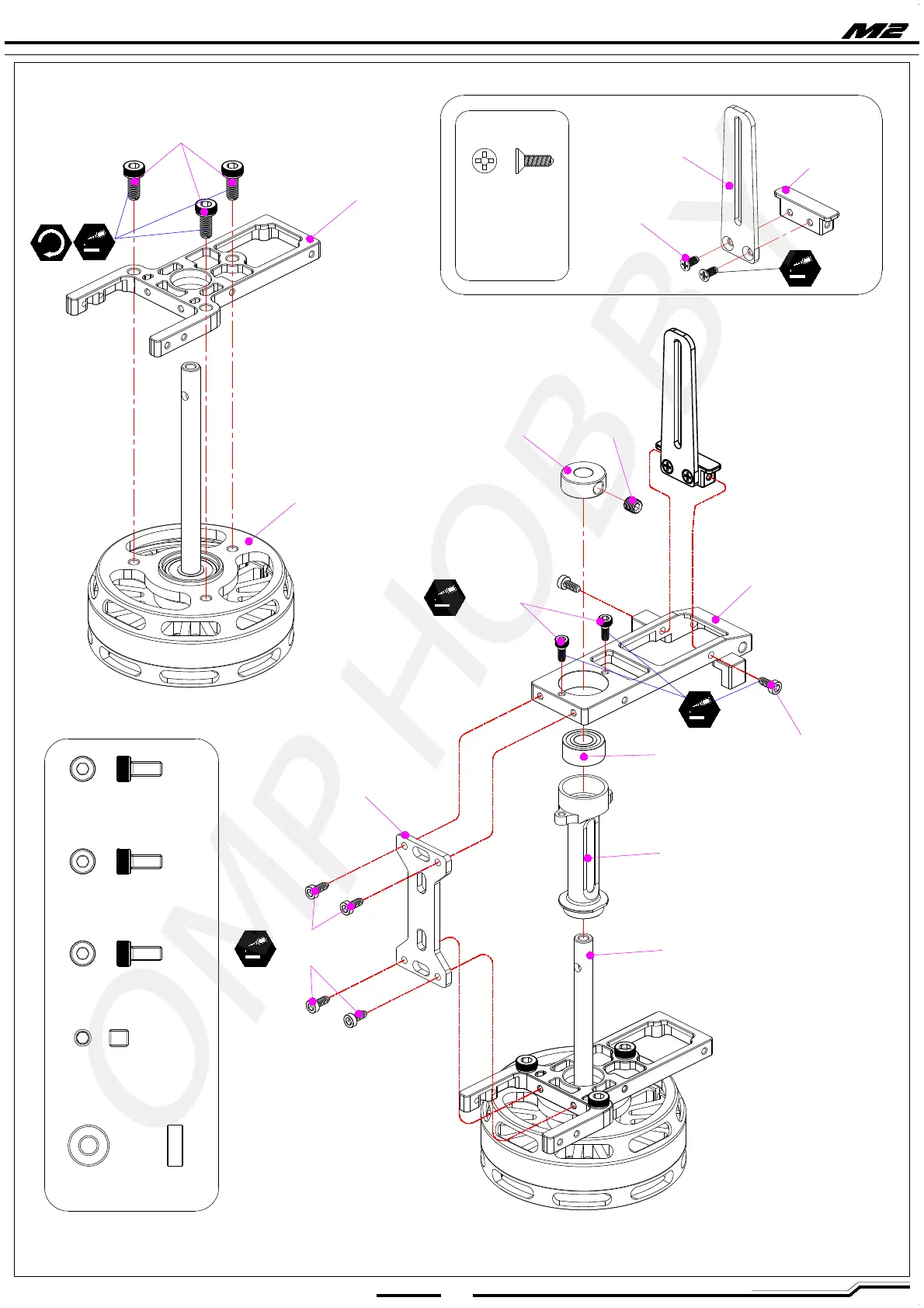

OMP Hobby M2 - Step 2: Main Motor and Frame Installation

7
EN
WWW.OMPHOBBY.COM
step 2 步骤二
圆柱头内六角螺丝
M2.5x7mm
主电机固定座
主电机
沉头内十字螺丝
M1.6x3mm
十字盘相位板
十字盘相位板固定座
沉头内十字螺丝
(M1.6x3mm)x2
主轴固定环
基米螺丝3>
舵机固定座
圆柱头内六角螺丝
M1.6x6mm
圆柱头内六角螺丝
M1.6x4mm
滚珠轴承
(Ø4xØ9x4mm)x1
主轴同心度保持柱
圆柱头内六角螺丝 (M2.5x7mm)x3
圆柱头内六角螺丝 (M1.6x6mm)x2
圆柱头内六角螺丝 (M1.6x4mm)x6
基米螺丝
(
3>^
轴承 (Ø4xØ9x3mm)x1
圆柱头内六角螺丝
M1.6x4mm
机身中间加强板
主轴
Main Shaft
Socket screw
Socket screw
Socket screw
Socket screw
Bearing-684ZZ
Socket screw
Socket screw
Socket screw
Socket screw
Socket screw
Motor Mount
Socket screw Socket screw
Metal Antl Rotation Bracket
Swash plate phase
plate mount
Main Motor
Spindle retaining ring
Steering gear mount
Bearing-684ZZ
Concentricity
retention column
