OMP Hobby M2 - Step 3: Frame and Tail Assembly

8
EN
WWW.OMPHOBBY.COM

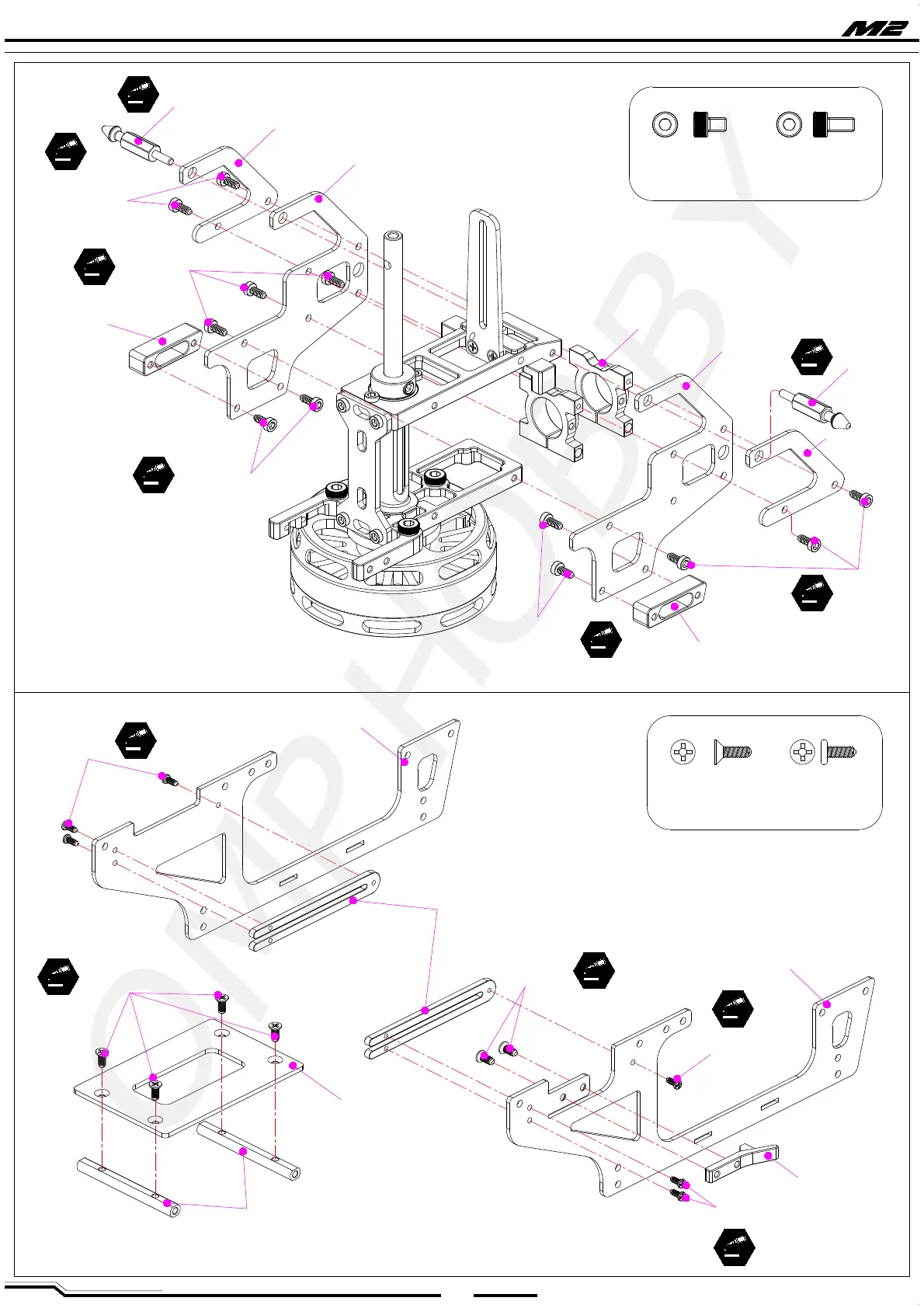

step 3 步骤三
机壳固定柱
机身后加强板
圆柱头内六角螺丝
M1.6x4mm
机身上侧板
圆柱头内六角螺丝
M1.6x4mm
机身加宽固定座
圆柱头内六角螺丝
M1.6x3mm
尾管固定座
机壳固定柱
机身后加强板
圆柱头内六角螺丝
M1.6x4mm
圆柱头内六角螺丝
M1.6x3mm
机身加宽固定座
圆柱头内六角螺丝
(M1.6x3mm)x4
圆柱头内六角螺丝
(M1.6x4mm)x8
沉头内十字螺丝
M1.6x3mm
电池导轨
扁头内十字螺丝
M1.2x3mm
扁头内十字螺丝
M1.2x3mm
电池卡扣
扁头内十字螺丝
M1.2x3mm
机身右下侧板
机身左下侧板
沉头内十字螺丝
(M1.6x3mm)x6
Socket screw
扁头内十字螺丝
(M1.2x3mm)x6
Socket screw
沉头内十字螺丝
M1.6x3mm
飞控盒安装板
飞控盒安装板固定柱
机身上侧板
Canopy Support
Socket screw
Socket screw
Socket screw
Socket screw
Socket screw
Socket screw
Socket screw
Canopy Support
Rear reinforcing plate
Frame upper side panel
Frame widening mount
Tail Boom Mount
Frame upper side panel
Frame widening mount
Socket screw
Socket screw
Socket screw
Socket screw
Socket screw
Frame lower right panel
Battery slideway
Flight control box mounting plate
Flight control box mounting plate assembly bolt
Frame lower left side panel
Battery buckle
Rear reinforcing plate
