Elevator Assembly
Ø Horizontal Tail Installation

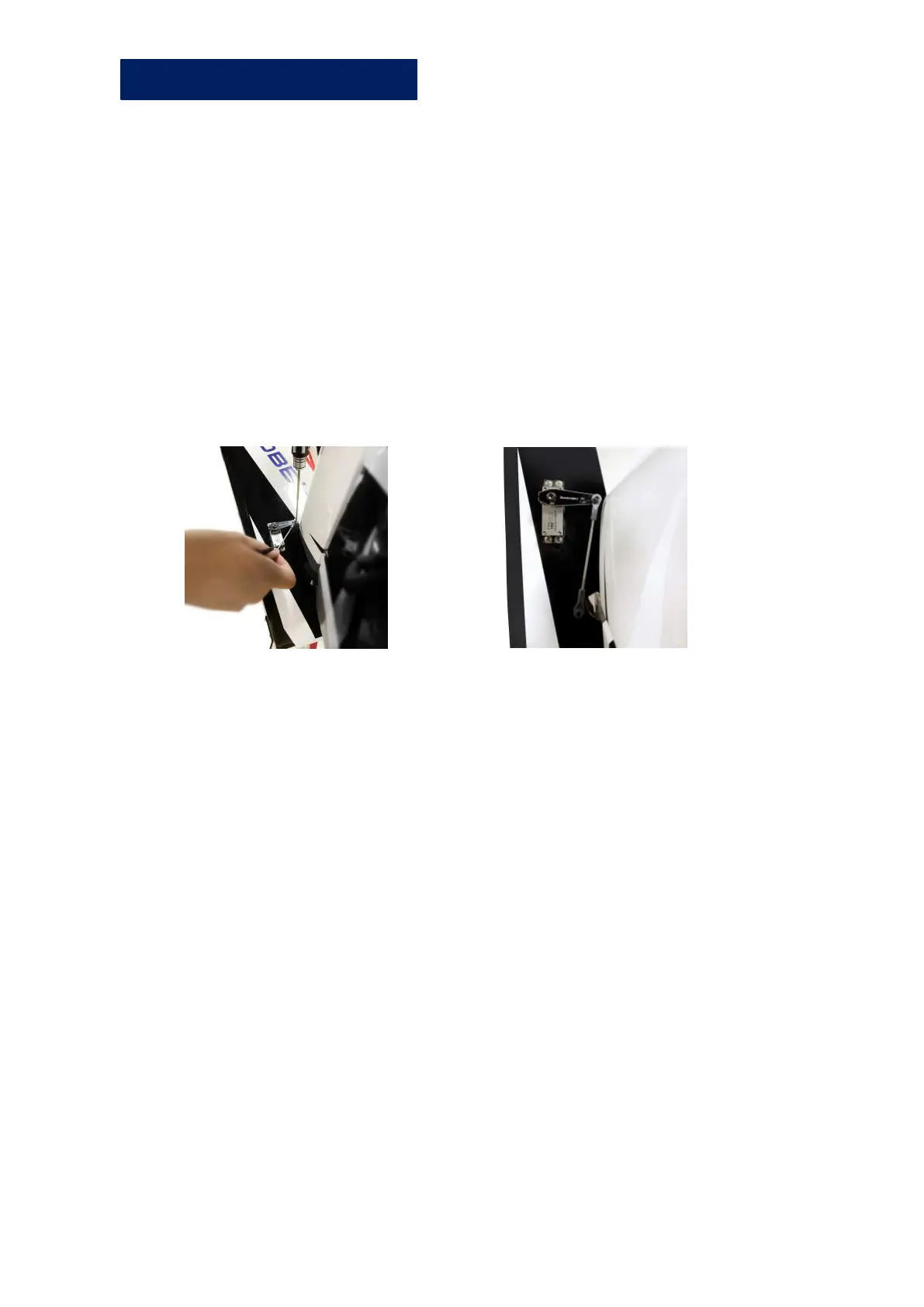

5. After the glue is dried, assemble the servo arm and
control horn with ball head pull rod, secure the cup head
hexagonal screw, gasket, ball head to the servo arm,
secure it with iron pliers, adjust the ball head pull rods to
proper length.
6. Secure screw, washer, ball head to control horn.
7. Check the angle between the servo arm and control horns.
(Make sure the control horn is at 90 degrees against
servo.)
