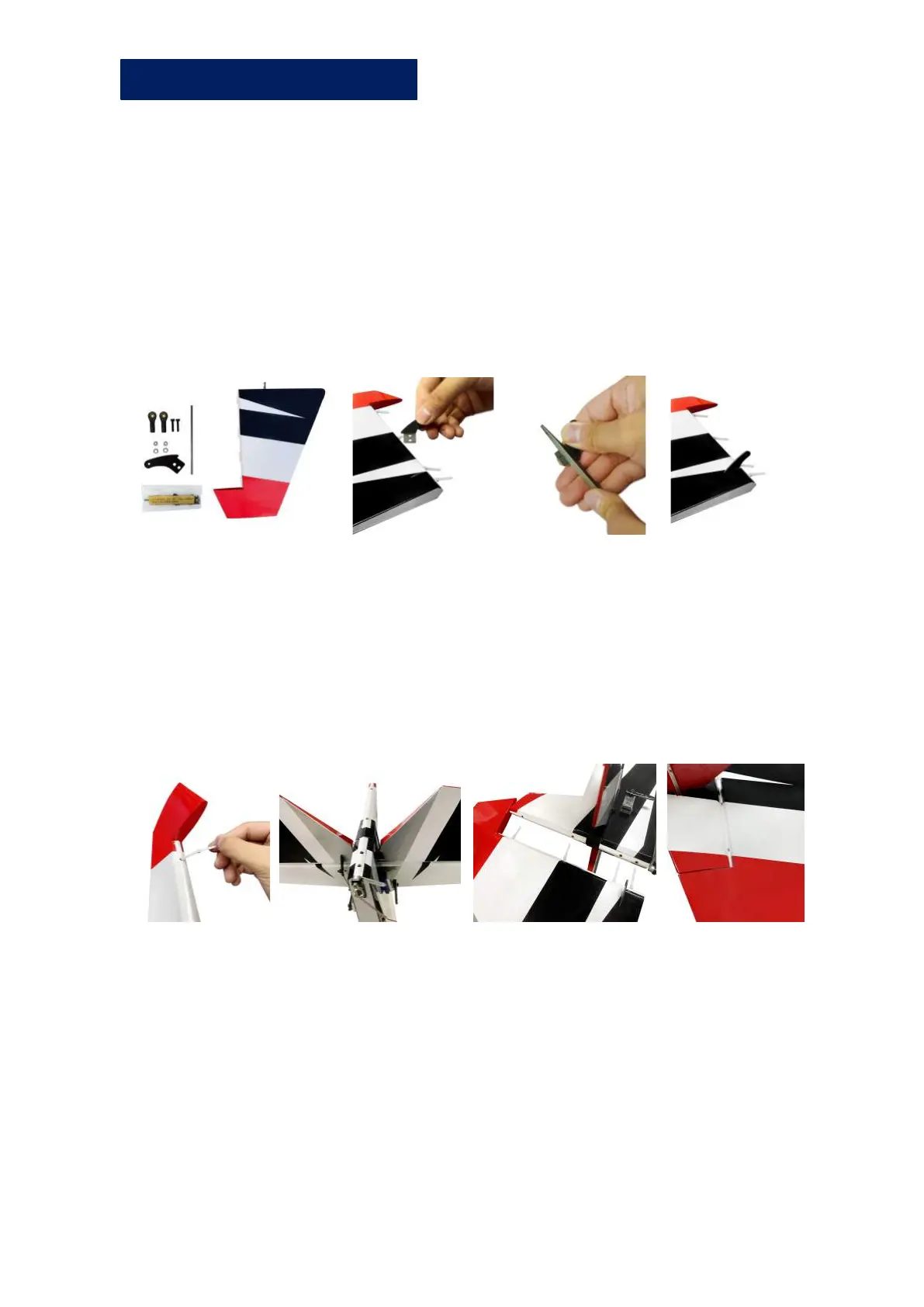

Rudder Assembly
Ø Rudder Installation
1. Carefully locate the slot which has been made on the vertical
tail, lightly cut through the covering but not into the balsa
sheeting.
2. Grind the root of control horns, try it first to insert it into the
slot to adjust the position, then take it out, apply glue to the
slot and the root of the control horn, insert it to the slot to
secure it .
3. Remove 4 hinges which are inserted in the rudder. Inject AB
glue into the holes, apply glue to 4 hinges with appropriate
length from its bottom,then insert 4 hinges into the rudder.
4. Inject AB glue into the holes in fuselage, apply glue to the
other end of hinges with appropriate length, then insert it into
fuselage.
