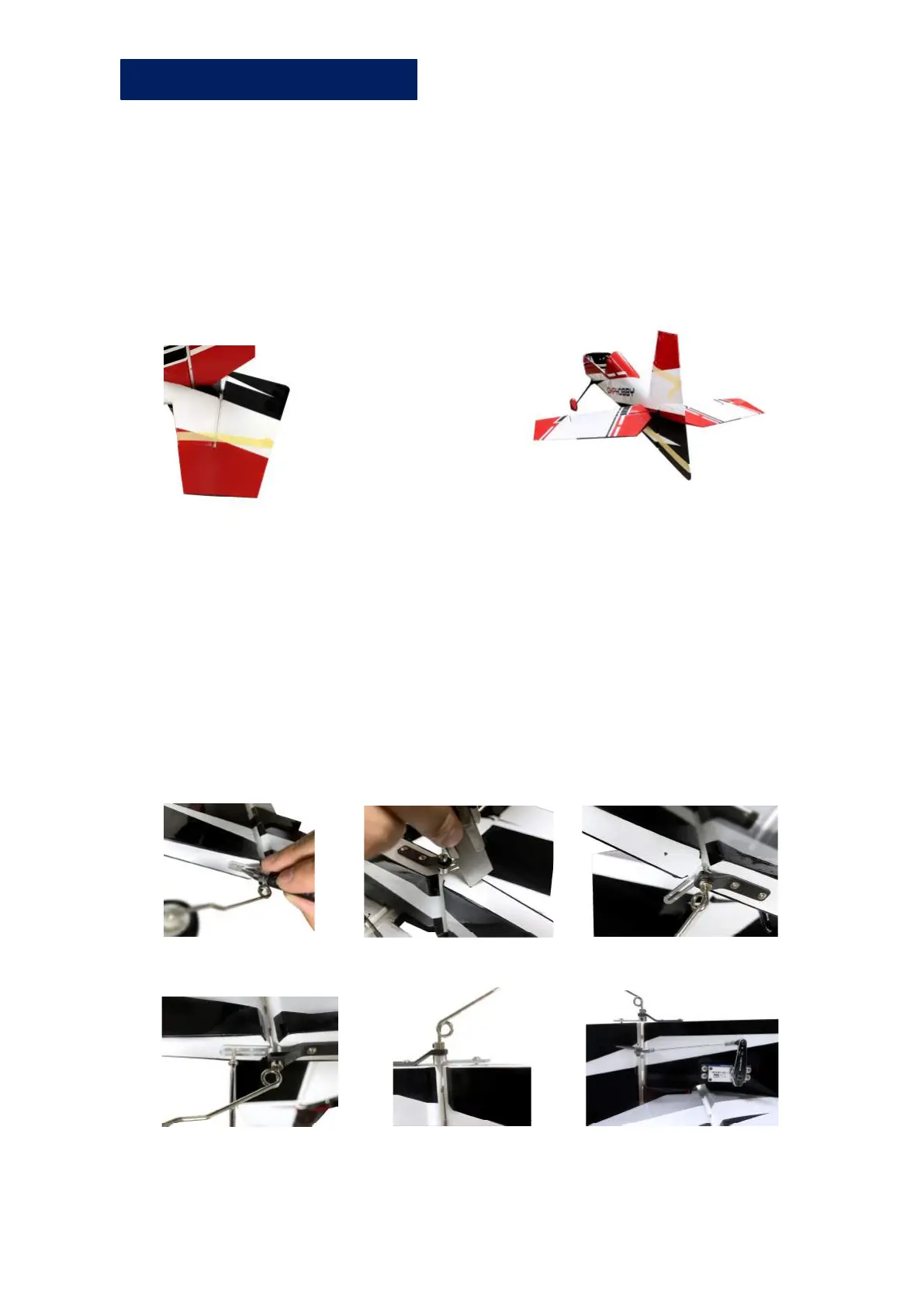

Rudder Assembly
6. Apply grease or engine oil on all joints between rudder and
fuselage, and around the hinges, to avoid affecting the
sensitivity of rudder after glue dried.
7. Tie rudder with masking tape while glue is still wet to
prevent loosening.
8. Make sure the shaft is in the middle position, and keep the
gap between rudder and fuselage within 1mm.
Zhuhai Edge Smart Drive Technology Co., Ltd.
www.omphobby.com
9. Find the center position to secure the tail wheel bracket to
rudder, drill a hole, secure the tail wheel bracket with screws.
(No need to fully screwed in)
10. After the glue is dried, secure the servo arm and control
arms with a ball head pull rod.
11. Make sure the angle of servo and control horns is 90° and
180°oblique, ensure rudder is symmetrical to the 2 sides of
fuselage.
