Cowl Part Assembly
Ø Cowl , Propeller, Spinner Installation

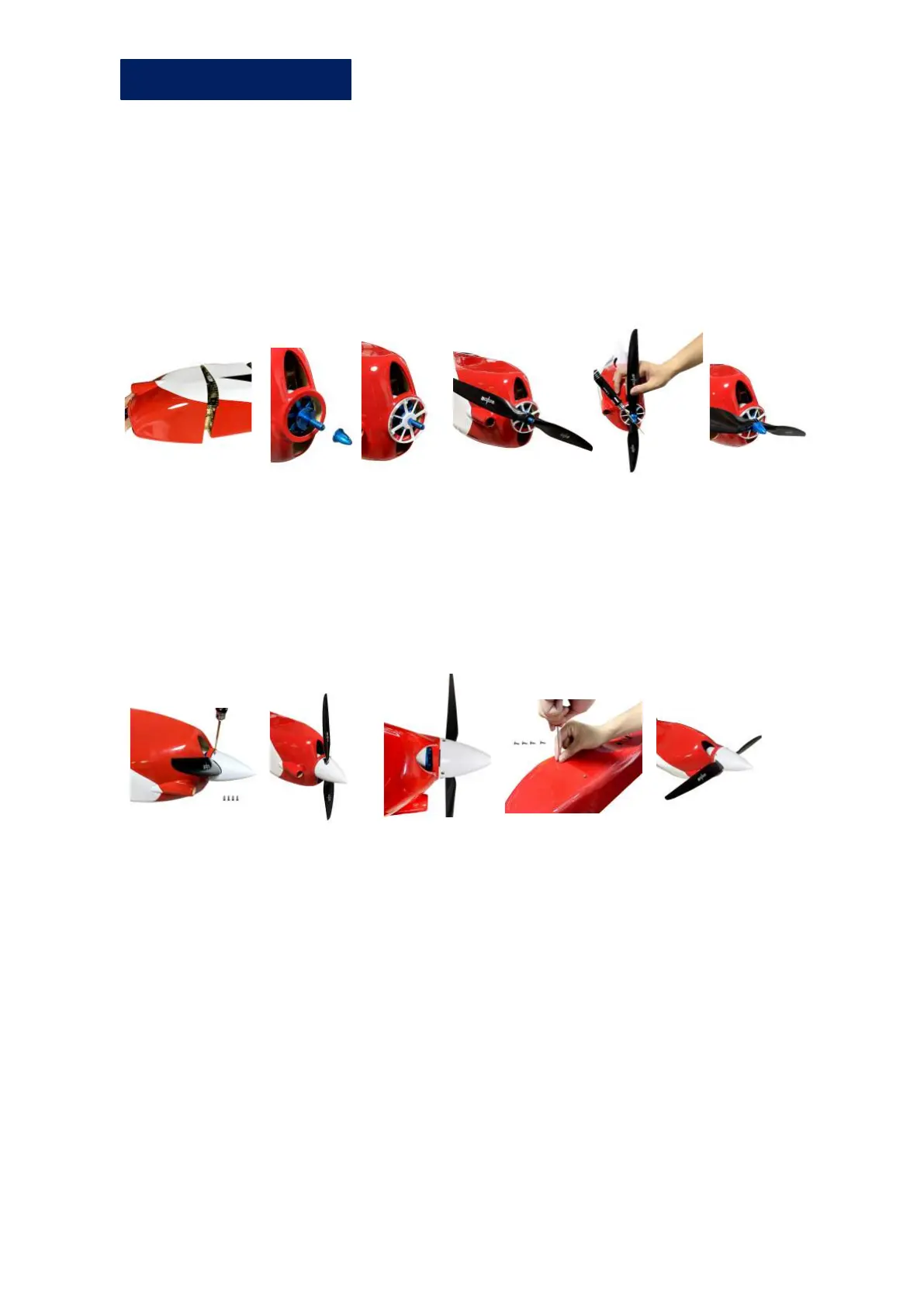

1. Install cowl to fuselage (please take note that motor
must be in center position)
2. Remove the propeller spinner adapter and screw gasket,
install the aluminum spinner back-plate, propeller,
propeller spinner adapter and screw gasket in
succession.
Zhuhai Edge Smart Drive Technology Co., Ltd.
www.omphobby.com
3. Secure the spinner with screws, please pay attention
that spinner must be located in the centre position of
the cowl, and spinner edge is parallel to the cowl, gap is
about 1.5mm.
4. Secure the cowl with screws, two screws for each of two
sides.secure
