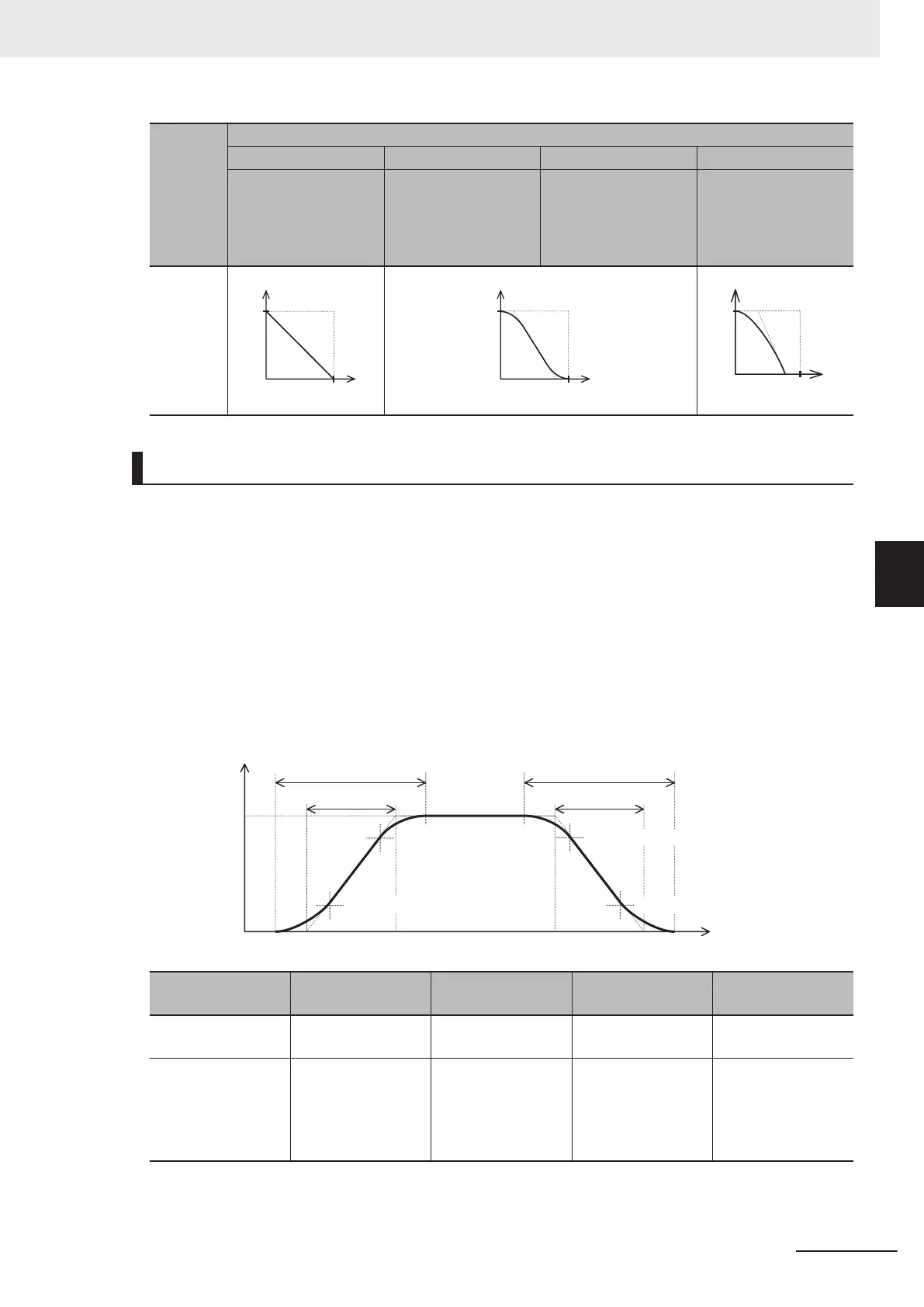

H07 (Ac-

celera-

tion/

Decelera-

tion Pat-

tern Se-

lection)

Set value

0 1 2 3

Disable (Linear ac-

celeration/decelera-

tion)

S-curve acceleration/

deceleration

S-curve acceleration/

deceleration (Arbitra-

ry)

Curve acceleration/

deceleration

At decel-

eration

Output frequency

Time

Output frequency

Time

Output frequency

Time

S-curve Acceleration/Deceleration Range

• When “2: S-curve acceleration/deceleration (Arbitrary)” is selected at Acceleration/Deceleration Pat-

tern Selection (H07), set S-curve Acceleration Range Frequency at Starting (H57), S-curve Acceler-

ation Range Frequency at End (H58), S-curve Deceleration Range Frequency at Start (H59) and S-

curve Deceleration Range Frequency at End (H60). When “1: S-curve acceleration/deceleration” is

set at Acceleration/Deceleration Pattern Selection (H07), each are fixed at 5%.

• The larger the values of S-curve Acceleration Range Frequency at Starting (H57), S-curve Accelera-

tion Range Frequency at End (H58), S-curve Deceleration Range Frequency at Start (H59) and S-

curve Deceleration Range Frequency at End (H60) are, the gentler acceleration/deceleration is per-

formed. For this reason, the actual acceleration/deceleration time is longer than the set acceleration/

deceleration time.

S-curve acceleration

range (end)

S-curve acceleration range (start)

S-curve deceleration range (start)

S-curve deceleration range (end)

Output frequency

Time

Set acceleration time Set deceleration time

Maximum

output

frequency

Actual acceleration time Actual deceleration time

S-curve accelera-

tion range (start)

S-curve accelera-

tion range (end)

S-curve decelera-

tion range (start)

S-curve decelera-

tion range (end)

S-curve accelera-

tion/deceleration

5% (fixed) 5% (fixed) 5% (fixed) 5% (fixed)

S-curve accelera-

tion/deceleration

(Arbitrary)

0 to 100%

S-curve Accelera-

tion Range Fre-

quency at Starting

(H57)

0 to 100%

S-curve Accelera-

tion Range Fre-

quency at End

(H58)

0 to 100%

S-curve Decelera-

tion Range Fre-

quency at Starting

(H59)

0 to 100%

S-curve Decelera-

tion Range Fre-

quency at End

(H60)

5 Basic Settings

5-41

M1 Series Standard Type User's Manual (I669)

5-6 Acceleration/deceleration time

5-6-2 Acceleration/Deceleration Pattern
