OFF
OFF
ON
ON
ONOFF
Output frequency
Output current
RUN command
Brake release signal
“BRK”
Brake confirmation signal
“BOK”

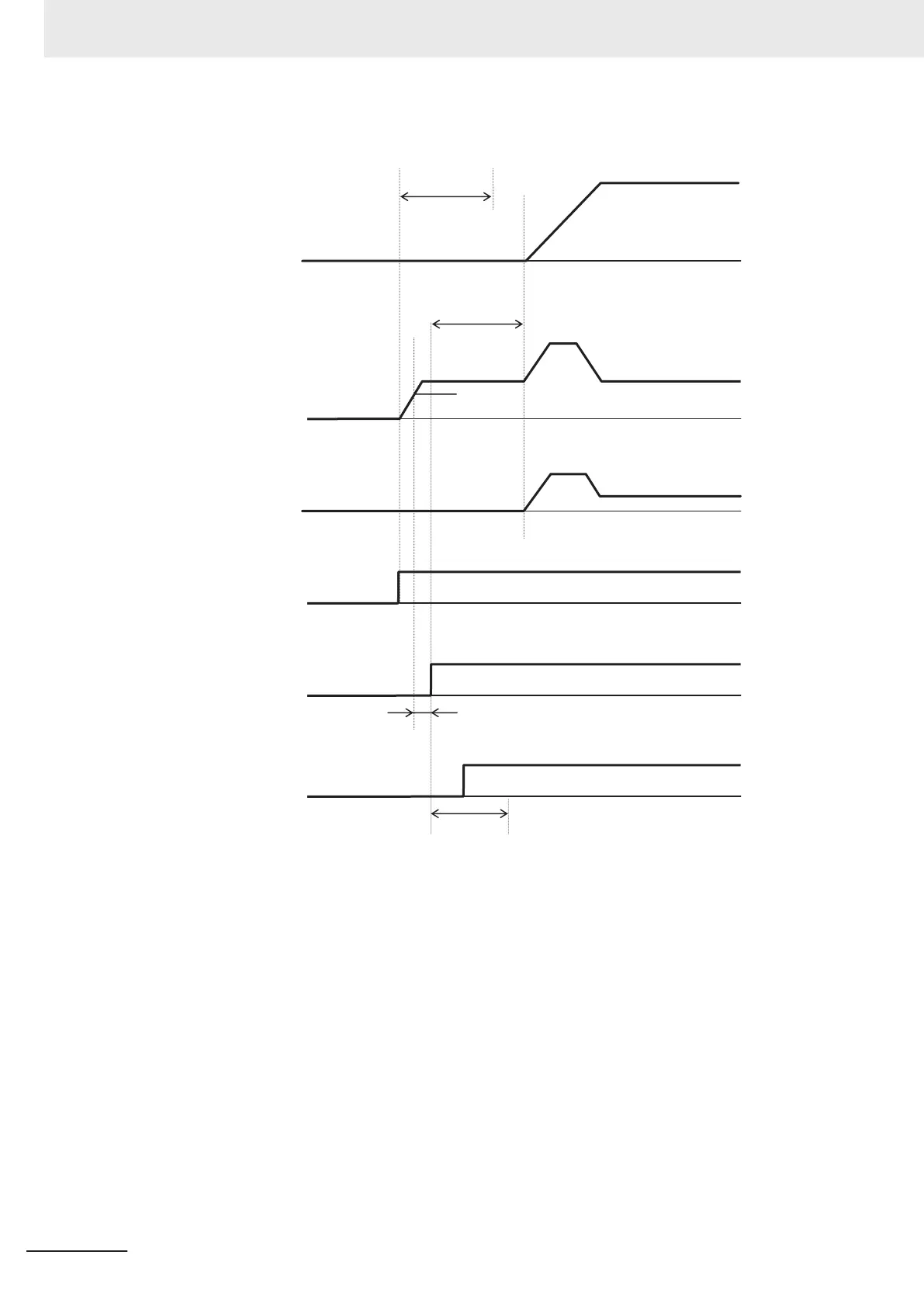

Vector control Operation time chart at startup
J95 = 0:
Brake control
Brake-release
Torque
Torque command
F24: 1st Starting
Frequency 1
Holding Time
F23: 1st Starting
Frequency
E181: Acceleration Wait Time on Brake Control
J68: Brake Control Brake-release Current
J70: Brake Control Brake-release Timer
H180: Brake Error Detection Time
6 Vector Control and Applied Functions
6-74
M1 Series Standard Type User's Manual (I669)
