Omron C200H Series User Manual

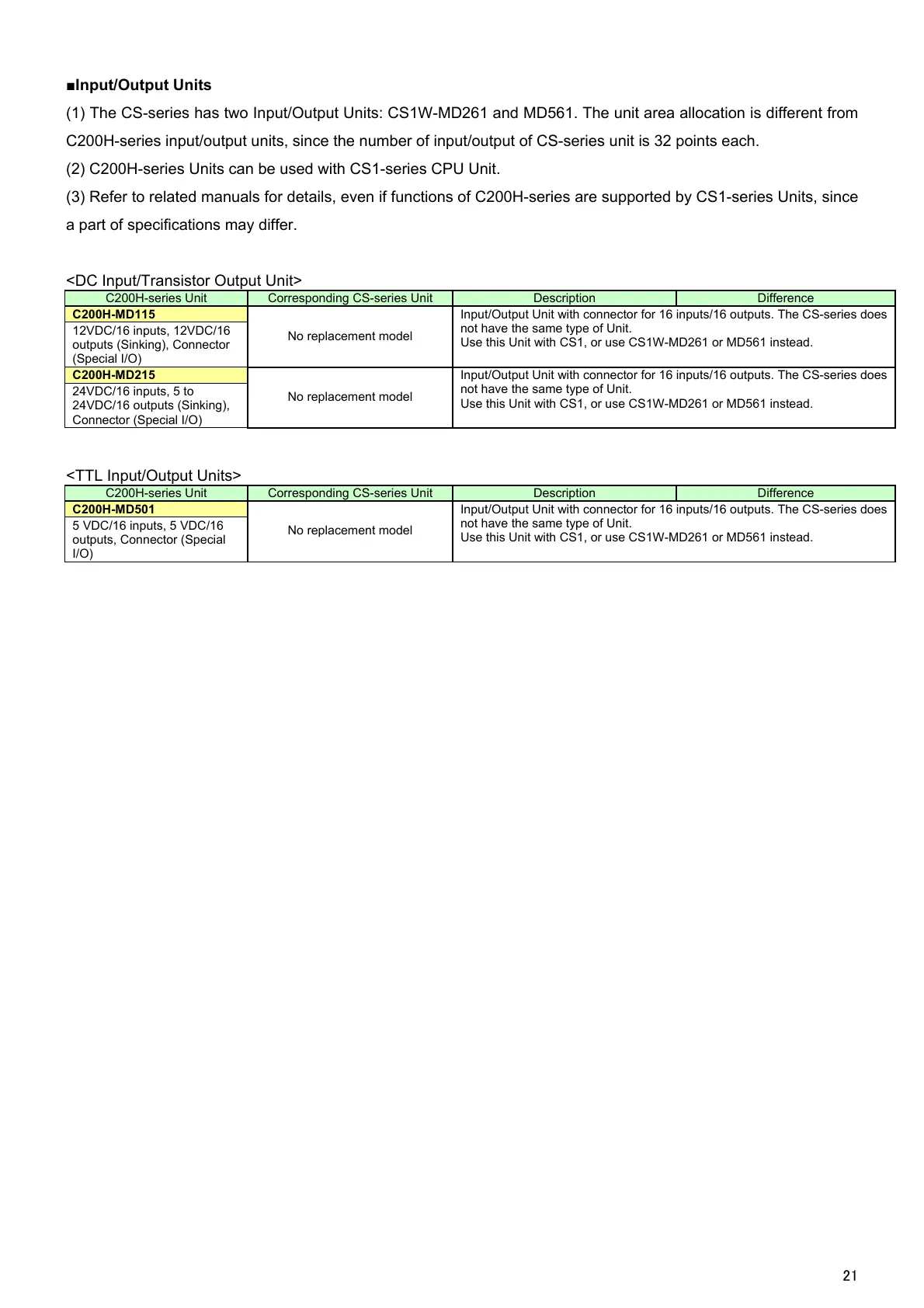

■Input/Output Units
(1) The CS-series has two Input/Output Units: CS1W-MD261 and MD561. The unit area allocation is different
from
C200H-series input/output units, since the number of input/output of CS-series unit is 32 points each.
(2) C200H-series Units can be used with CS1-series CPU Unit.
(3) Refer to related manuals for details, even if functions of C200H-series are supported by CS1-series Units, since
a part of specifications may differ.
<DC Input/Transistor Output Unit>
C200H-series Unit Corresponding CS-series Unit Description Difference
C200H-MD115
12VDC/16 inputs, 12VDC/16
outputs (Sinking), Connector
(Special I/O)
No replacement model
Input/Output Unit with connector for 16 inputs/16 outputs. The CS-series does
not have the same type of Unit.
Use this Unit with CS1, or use CS1W-MD261 or MD561 instead.
C200H-MD215
24VDC/16 inputs, 5 to
24VDC/16 outputs (Sinking),
Connector (Special I/O)
No replacement model
Input/Output Unit with connector for 16 inputs/16 outputs. The CS-series does
not have the same type of Unit.
Use this Unit with CS1, or use CS1W-MD261 or MD561 instead.
<TTL Input/Output Units>
C200H-series Unit Corresponding CS-series Unit Description Difference
C200H-MD501
5 VDC/16 inputs, 5 VDC/16
outputs, Connector (Special
I/O)
No replacement model
Input/Output Unit with connector for 16 inputs/16 outputs. The CS-series does
not have the same type of Unit.
Use this Unit with CS1, or use CS1W-MD261 or MD561 instead.
󲨪󲨩

Omron C200H Series Specifications

General

Humidity	10% to 90% RH (non-condensing)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C, RS-422/485
Operating Temperature	0 to 55°C (32 to 131°F)
Mounting	DIN rail
Type	Programmable Logic Controller (PLC)
Power Supply	100 to 240 VAC, 24 VDC
