Omron C200H Series User Manual

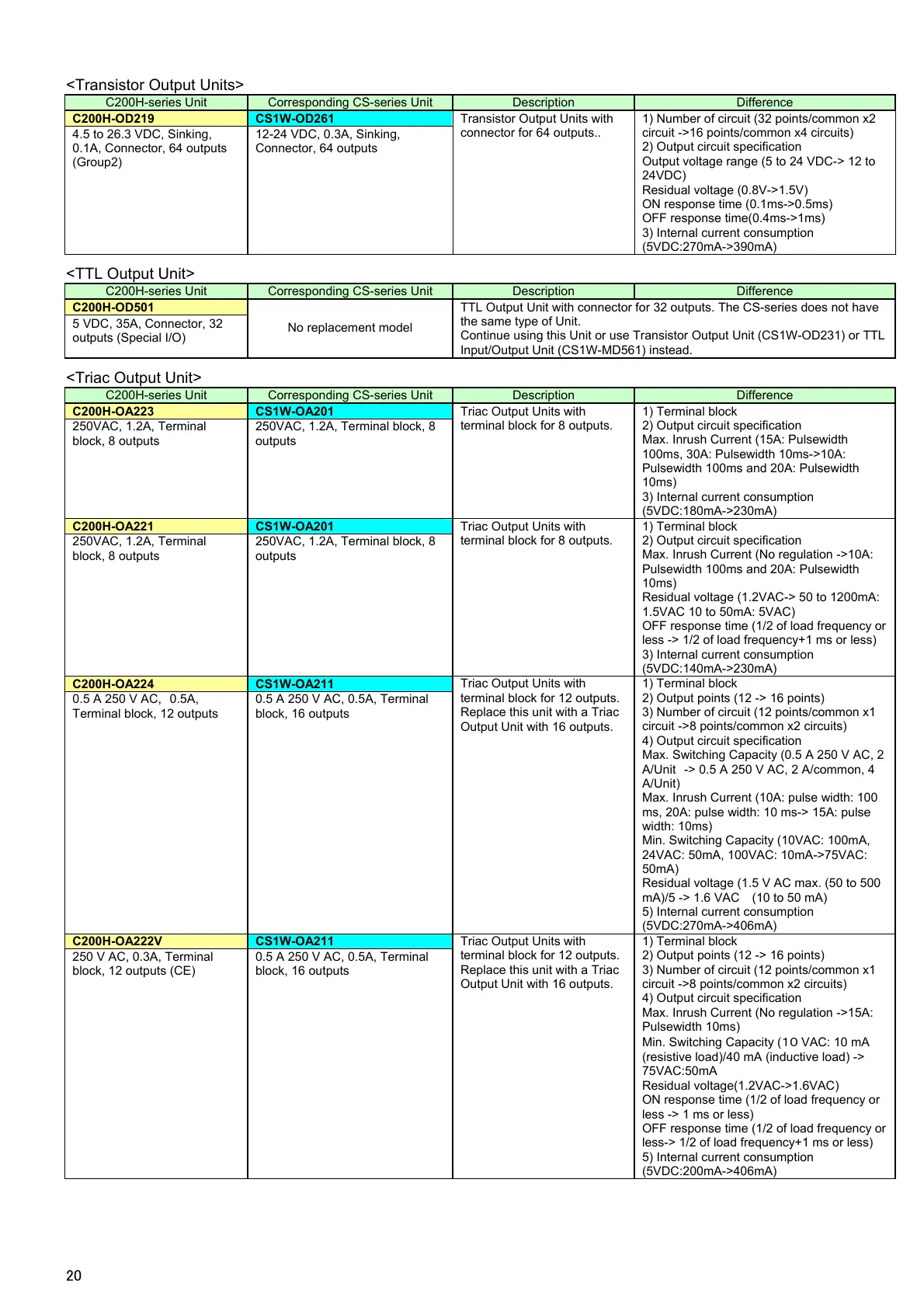

<Transistor Output Units>
C200H-series Unit Corresponding CS-series Unit Description Difference
C200H-OD219 CS1W-OD261
4.5 to 26.3 VDC, Sinking,
0.1A, Connector, 64 outputs
(Group2)
12-24 VDC, 0.3A, Sinking,
Connector, 64 outputs
Transistor Output Units with
connector for 64 outputs..
1) Number of circuit (32 points/common x2
circuit ->16 points/common x4 circuits)
2) Output circuit specification
Output voltage range (5 to 24 VDC-> 12 to
24VDC)
Residual voltage (0.8V->1.5V)
ON response time (0.1ms->0.5ms)
OFF response time(0.4ms->1ms)
3) Internal current consumption
(5VDC:270mA->390mA)
<TTL Output Unit>
C200H-series Unit Corresponding CS-series Unit Description Difference
C200H-OD501
5 VDC, 35A, Connector, 32
outputs (Special I/O)
No replacement model
TTL Output Unit with connector for 32 outputs. The CS-series does not have
the same type of Unit.
Continue using this Unit or use Transistor Output Unit (CS1W-OD231) or TTL
Input/Output Unit (CS1W-MD561) instead.
<Triac Output Unit>
C200H-series Unit Corresponding CS-series Unit Description Difference
C200H-OA223 CS1W-OA201
250VAC, 1.2A, Terminal
block, 8 outputs
250VAC, 1.2A, Terminal block, 8
outputs
Triac Output Units with
terminal block for 8 outputs.
1) Terminal block
2) Output circuit specification
Max. Inrush Current (15A: Pulsewidth
100ms, 30A: Pulsewidth 10ms->10A:
Pulsewidth 100ms and 20A: Pulsewidth
10ms)
3) Internal current consumption
(5VDC:180mA->230mA)
C200H-OA221 CS1W-OA201
250VAC, 1.2A, Terminal
block, 8 outputs
250VAC, 1.2A, Terminal block, 8
outputs
Triac Output Units with
terminal block for 8 outputs.
1) Terminal block
2) Output circuit specification
Max. Inrush Current (No regulation ->10A:
Pulsewidth 100ms and 20A: Pulsewidth
10ms)
Residual voltage (1.2VAC-> 50 to 1200mA:
1.5VAC 10 to 50mA: 5VAC)
OFF response time (1/2 of load frequency or
less -> 1/2 of load frequency+1 ms or less)
3) Internal current consumption
(5VDC:140mA->230mA)
C200H-OA224 CS1W-OA211
0.5 A 250 V AC, 0.5A,
Terminal block, 12 outputs
0.5 A 250 V AC, 0.5A, Terminal
block, 16 outputs
Triac Output Units with
terminal block for 12 outputs.
Replace this unit with a Triac
Output Unit with 16 outputs.
1) Terminal block
2) Output points (12 -> 16 points)
3) Number of circuit (12 points/common x1
circuit ->8 points/common x2 circuits)
4) Output circuit specification
Max. Switching Capacity (0.5 A 250 V AC, 2
A/Unit -> 0.5 A 250 V AC, 2 A/common, 4
A/Unit)
Max. Inrush Current (10A: pulse width: 100
ms, 20A: pulse width: 10 ms-> 15A: pulse
width: 10ms)
Min. Switching Capacity (10VAC: 100mA,
24VAC: 50mA, 100VAC: 10mA->75VAC:
50mA)
Residual voltage (1.5 V AC max. (50 to 500
mA)/5 -> 1.6 VAC (10 to 50 mA)
5) Internal current consumption
(5VDC:270mA->406mA)
C200H-OA222V CS1W-OA211
250 V AC, 0.3A, Terminal
block, 12 outputs (CE)
0.5 A 250 V AC, 0.5A, Terminal
block, 16 outputs
Triac Output Units with
terminal block for 12 outputs.
Replace this unit with a Triac
Output Unit with 16 outputs.
1) Terminal block
2) Output points (12 -> 16 points)
3) Number of circuit (12 points/common x1
circuit ->8 points/common x2 circuits)
4) Output circuit specification
Max. Inrush Current (No regulation ->15A:
Pulsewidth 10ms)
Min. Switching Capacity (󳊒󳊑 VAC: 10 mA
(resistive load)/40 mA (inductive load) ->
75VAC:50mA
Residual voltage(1.2VAC->1.6VAC)
ON response time (1/2 of load frequency or
less -> 1 ms or less)
OFF response time (1/2 of load frequency or
less-> 1/2 of load frequency+1 ms or less)
5) Internal current consumption
(5VDC:200mA->406mA)
󲨪󲨨

Omron C200H Series Specifications

General

Humidity	10% to 90% RH (non-condensing)
Programming Language	Ladder Diagram, Instruction List
Communication Ports	RS-232C, RS-422/485
Operating Temperature	0 to 55°C (32 to 131°F)
Mounting	DIN rail
Type	Programmable Logic Controller (PLC)
Power Supply	100 to 240 VAC, 24 VDC
