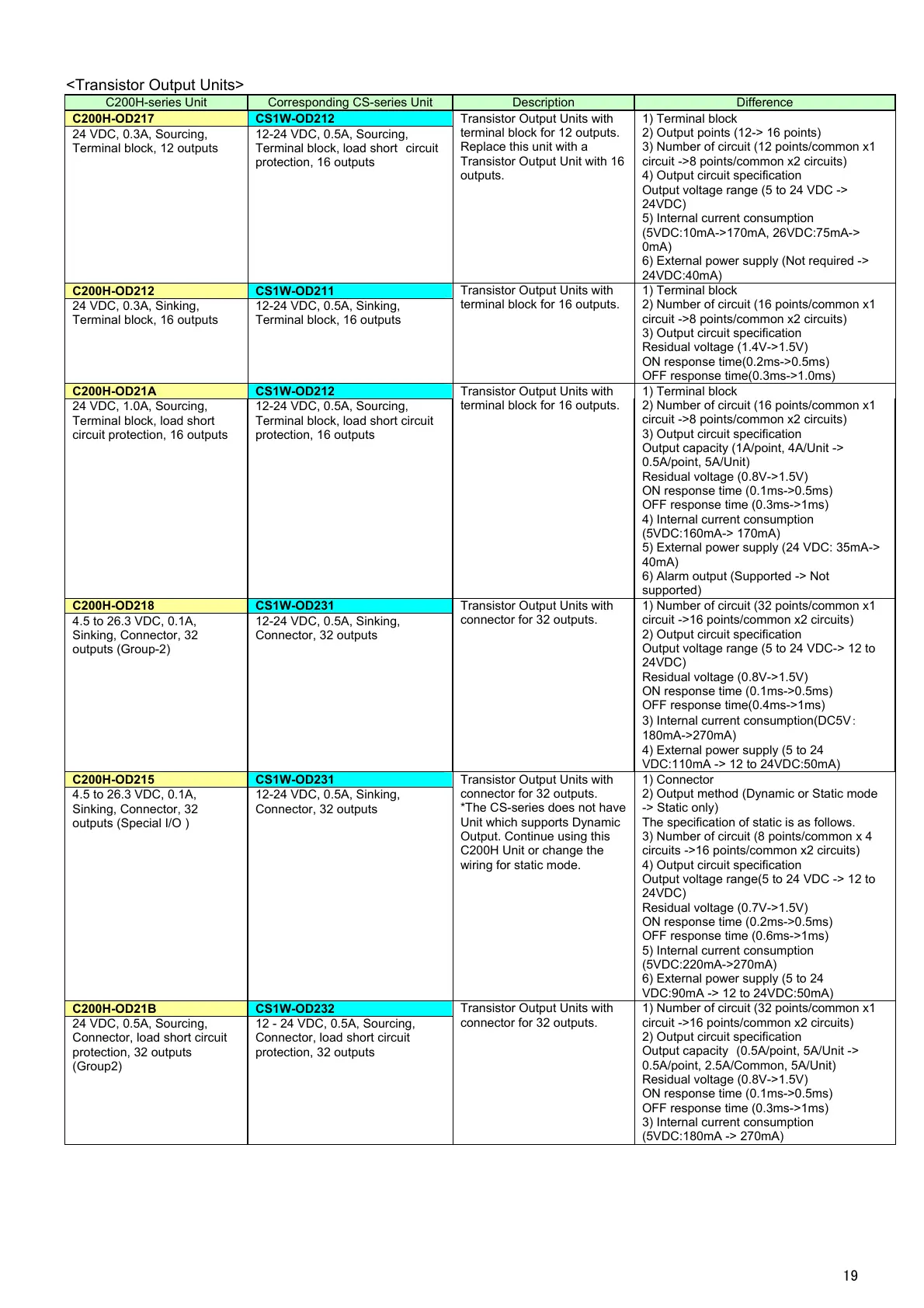

<Transistor Output Units>
C200H-series Unit Corresponding CS-series Unit Description Difference
C200H-OD217 CS1W-OD212
24 VDC, 0.3A, Sourcing,
Terminal block, 12 outputs
12-24 VDC, 0.5A, Sourcing,
Terminal block, load short circuit
protection, 16 outputs
Transistor Output Units with
terminal block for 12 outputs.
Replace this unit with a
Transistor Output Unit with 16
outputs.
1) Terminal block
2) Output points (12-> 16 points)
3) Number of circuit (12 points/common x1
circuit ->8 points/common x2 circuits)
4) Output circuit specification
Output voltage range (5 to 24 VDC ->
24VDC)
5) Internal current consumption
(5VDC:10mA->170mA, 26VDC:75mA->
0mA)
6) External power supply (Not required ->
24VDC:40mA)
C200H-OD212 CS1W-OD211
24 VDC, 0.3A, Sinking,
Terminal block, 16 outputs
12-24 VDC, 0.5A, Sinking,
Terminal block, 16 outputs
Transistor Output Units with
terminal block for 16 outputs.
1) Terminal block
2) Number of circuit (16 points/common x1
circuit ->8 points/common x2 circuits)
3) Output circuit specification
Residual voltage (1.4V->1.5V)
ON response time(0.2ms->0.5ms)
OFF response time(0.3ms->1.0ms)
C200H-OD21A CS1W-OD212
24 VDC, 1.0A, Sourcing,
Terminal block, load short
circuit protection, 16 outputs
12-24 VDC, 0.5A, Sourcing,
Terminal block, load short circuit
protection, 16 outputs
Transistor Output Units with
terminal block for 16 outputs.
1) Terminal block
2) Number of circuit (16 points/common x1
circuit ->8 points/common x2 circuits)
3) Output circuit specification
Output capacity (1A/point, 4A/Unit ->
0.5A/point, 5A/Unit)
Residual voltage (0.8V->1.5V)
ON response time (0.1ms->0.5ms)
OFF response time (0.3ms->1ms)
4) Internal current consumption
(5VDC:160mA-> 170mA)
5) External power supply (24 VDC: 35mA->
40mA)
6) Alarm output (Supported -> Not
supported)
C200H-OD218 CS1W-OD231
4.5 to 26.3 VDC, 0.1A,
Sinking, Connector, 32
outputs (Group-2)
12-24 VDC, 0.5A, Sinking,
Connector, 32 outputs
Transistor Output Units with
connector for 32 outputs.
1) Number of circuit (32 points/common x1
circuit ->16 points/common x2 circuits)
2) Output circuit specification
Output voltage range (5 to 24 VDC-> 12 to
24VDC)
Residual voltage (0.8V->1.5V)
ON response time (0.1ms->0.5ms)
OFF response time(0.4ms->1ms)
3) Internal current consumption(DC5V：
180mA->270mA)
4) External power supply (5 to 24
VDC:110mA -> 12 to 24VDC:50mA)
C200H-OD215 CS1W-OD231
4.5 to 26.3 VDC, 0.1A,
Sinking, Connector, 32
outputs (Special I/O )
12-24 VDC, 0.5A, Sinking,
Connector, 32 outputs
Transistor Output Units with
connector for 32 outputs.
*The CS-series does not have
Unit which supports Dynamic
Output. Continue using this
C200H Unit or change the
wiring for static mode.
1) Connector
2) Output method (Dynamic or Static mode
-> Static only)
The specification of static is as follows.
3) Number of circuit (8 points/common x 4
circuits ->16 points/common x2 circuits)
4) Output circuit specification
Output voltage range(5 to 24 VDC -> 12 to
24VDC)
Residual voltage (0.7V->1.5V)
ON response time (0.2ms->0.5ms)
OFF response time (0.6ms->1ms)
5) Internal current consumption
(5VDC:220mA->270mA)
6) External power supply (5 to 24
VDC:90mA -> 12 to 24VDC:50mA)
C200H-OD21B CS1W-OD232
24 VDC, 0.5A, Sourcing,
Connector, load short circuit
protection, 32 outputs
(Group2)
12 - 24 VDC, 0.5A, Sourcing,
Connector, load short circuit
protection, 32 outputs
Transistor Output Units with
connector for 32 outputs.
1) Number of circuit (32 points/common x1
circuit ->16 points/common x2 circuits)
2) Output circuit specification
Output capacity (0.5A/point, 5A/Unit ->
0.5A/point, 2.5A/Common, 5A/Unit)
Residual voltage (0.8V->1.5V)
ON response time (0.1ms->0.5ms)
OFF response time (0.3ms->1ms)
3) Internal current consumption
(5VDC:180mA -> 270mA)
