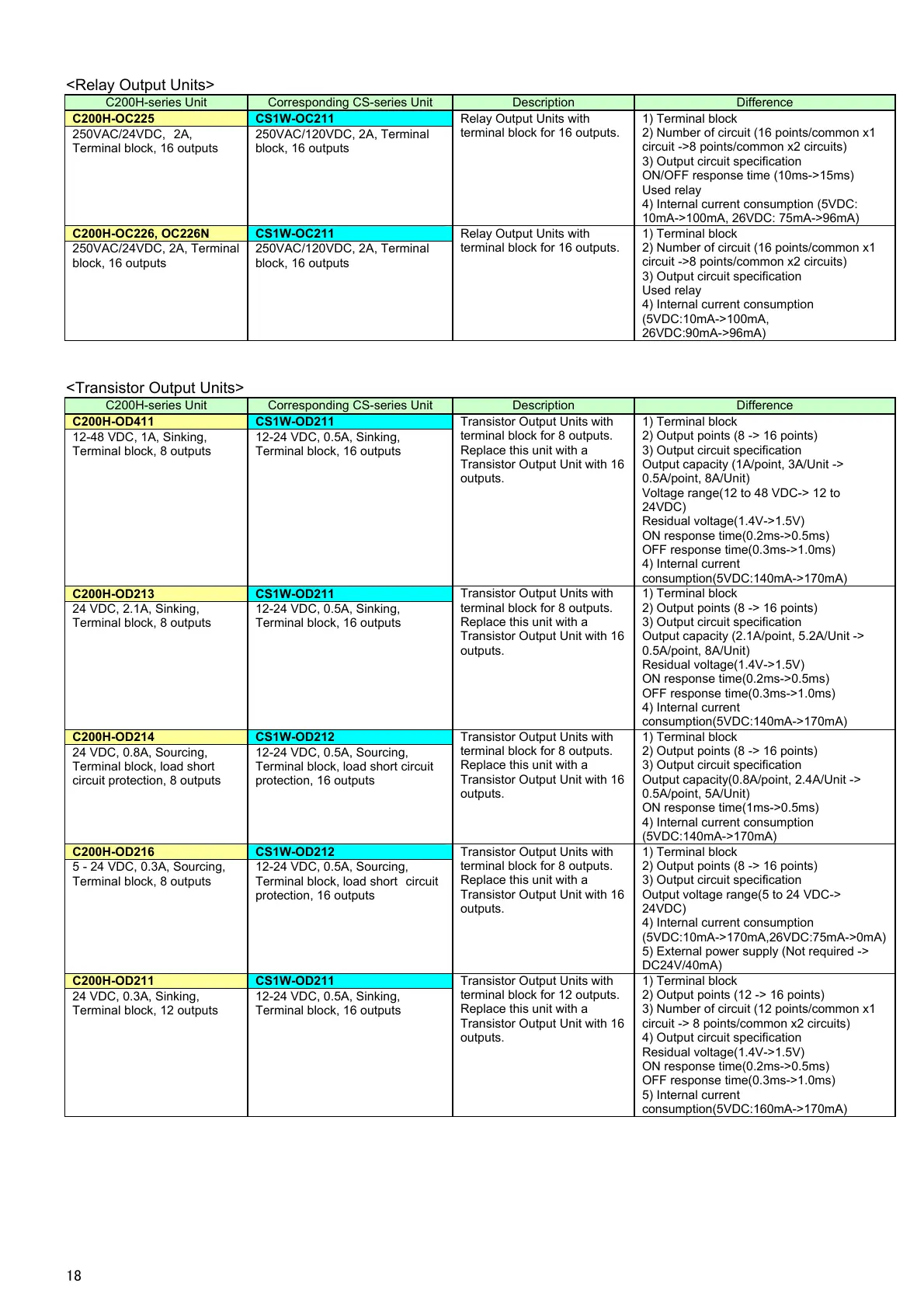

<Relay Output Units>
C200H-series Unit Corresponding CS-series Unit Description Difference
C200H-OC225 CS1W-OC211
250VAC/24VDC, 2A,
Terminal block, 16 outputs
250VAC/120VDC, 2A, Terminal
block, 16 outputs
Relay Output Units with
terminal block for 16 outputs.
1) Terminal block
2) Number of circuit (16 points/common x1
circuit ->8 points/common x2 circuits)
3) Output circuit specification
ON/OFF response time (10ms->15ms)
Used relay
4) Internal current consumption (5VDC:
10mA->100mA, 26VDC: 75mA->96mA)
C200H-OC226, OC226N CS1W-OC211
250VAC/24VDC, 2A, Terminal
block, 16 outputs
250VAC/120VDC, 2A, Terminal
block, 16 outputs
Relay Output Units with
terminal block for 16 outputs.
1) Terminal block
2) Number of circuit (16 points/common x1
circuit ->8 points/common x2 circuits)
3) Output circuit specification
Used relay
4) Internal current consumption
(5VDC:10mA->100mA,
26VDC:90mA->96mA)
<Transistor Output Units>
C200H-series Unit Corresponding CS-series Unit Description Difference
C200H-OD411 CS1W-OD211
12-48 VDC, 1A, Sinking,
Terminal block, 8 outputs
12-24 VDC, 0.5A, Sinking,
Terminal block, 16 outputs
Transistor Output Units with
terminal block for 8 outputs.
Replace this unit with a
Transistor Output Unit with 16
outputs.
1) Terminal block
2) Output points (8 -> 16 points)
3) Output circuit specification
Output capacity (1A/point, 3A/Unit ->
0.5A/point, 8A/Unit)
Voltage range(12 to 48 VDC-> 12 to
24VDC)
Residual voltage(1.4V->1.5V)
ON response time(0.2ms->0.5ms)
OFF response time(0.3ms->1.0ms)
4) Internal current
consumption(5VDC:140mA->170mA)
C200H-OD213 CS1W-OD211
24 VDC, 2.1A, Sinking,
Terminal block, 8 outputs
12-24 VDC, 0.5A, Sinking,
Terminal block, 16 outputs
Transistor Output Units with
terminal block for 8 outputs.
Replace this unit with a
Transistor Output Unit with 16
outputs.
1) Terminal block
2) Output points (8 -> 16 points)
3) Output circuit specification
Output capacity (2.1A/point, 5.2A/Unit ->
0.5A/point, 8A/Unit)
Residual voltage(1.4V->1.5V)
ON response time(0.2ms->0.5ms)
OFF response time(0.3ms->1.0ms)
4) Internal current
consumption(5VDC:140mA->170mA)
C200H-OD214 CS1W-OD212
24 VDC, 0.8A, Sourcing,
Terminal block, load short
circuit protection, 8 outputs
12-24 VDC, 0.5A, Sourcing,
Terminal block, load short circuit
protection, 16 outputs
Transistor Output Units with
terminal block for 8 outputs.
Replace this unit with a
Transistor Output Unit with 16
outputs.
1) Terminal block
2) Output points (8 -> 16 points)
3) Output circuit specification
Output capacity(0.8A/point, 2.4A/Unit ->
0.5A/point, 5A/Unit)
ON response time(1ms->0.5ms)
4) Internal current consumption
(5VDC:140mA->170mA)
C200H-OD216 CS1W-OD212
5 - 24 VDC, 0.3A, Sourcing,
Terminal block, 8 outputs
12-24 VDC, 0.5A, Sourcing,
Terminal block, load short circuit
protection, 16 outputs
Transistor Output Units with
terminal block for 8 outputs.
Replace this unit with a
Transistor Output Unit with 16
outputs.
1) Terminal block
2) Output points (8 -> 16 points)
3) Output circuit specification
Output voltage range(5 to 24 VDC->
24VDC)
4) Internal current consumption
(5VDC:10mA->170mA,26VDC:75mA->0mA)
5) External power supply (Not required ->
DC24V/40mA)
C200H-OD211 CS1W-OD211
24 VDC, 0.3A, Sinking,
Terminal block, 12 outputs
12-24 VDC, 0.5A, Sinking,
Terminal block, 16 outputs
Transistor Output Units with
terminal block for 12 outputs.
Replace this unit with a
Transistor Output Unit with 16
outputs.
1) Terminal block
2) Output points (12 -> 16 points)
3) Number of circuit (12 points/common x1
circuit -> 8 points/common x2 circuits)
4) Output circuit specification
Residual voltage(1.4V->1.5V)
ON response time(0.2ms->0.5ms)
OFF response time(0.3ms->1.0ms)
5) Internal current
consumption(5VDC:160mA->170mA)
