Appendix AStandard Models
109
Note: Use a proper Head Unit model for the optical module to be used. If two types of optical modules (unit type
and board type) are used, order an Optical Power Tester plus a proper Head Unit model.
Master Fiber Set
Name Specifications Model number Stan-
dards
Master Fiber Sets (1 m) S3200-CAT3202 (SYSMAC NET, NSB, NSU,
Bridge)
S3200-CAT3201 ---
S3200-CAT2002/CAT2702 (SYSMAC NET, SYS-
MAC LINK)
S3200-CAT2001H
S3200-CAT2822 (SYSMAC BUS) S3200-CAT2821
Note: 1. The Master Fiber Set is used in combination with the Optical Power Tester to check the optical levels of
optical fiber cables connected to optical fiber cable connectors.
2. Optical fiber cables must be prepared and connected by specialists.
3. The Optical Power Tester, Head Unit, Master Fiber set, and Optical Fiber Assembling Tool are required to
connect optical fiber cables.

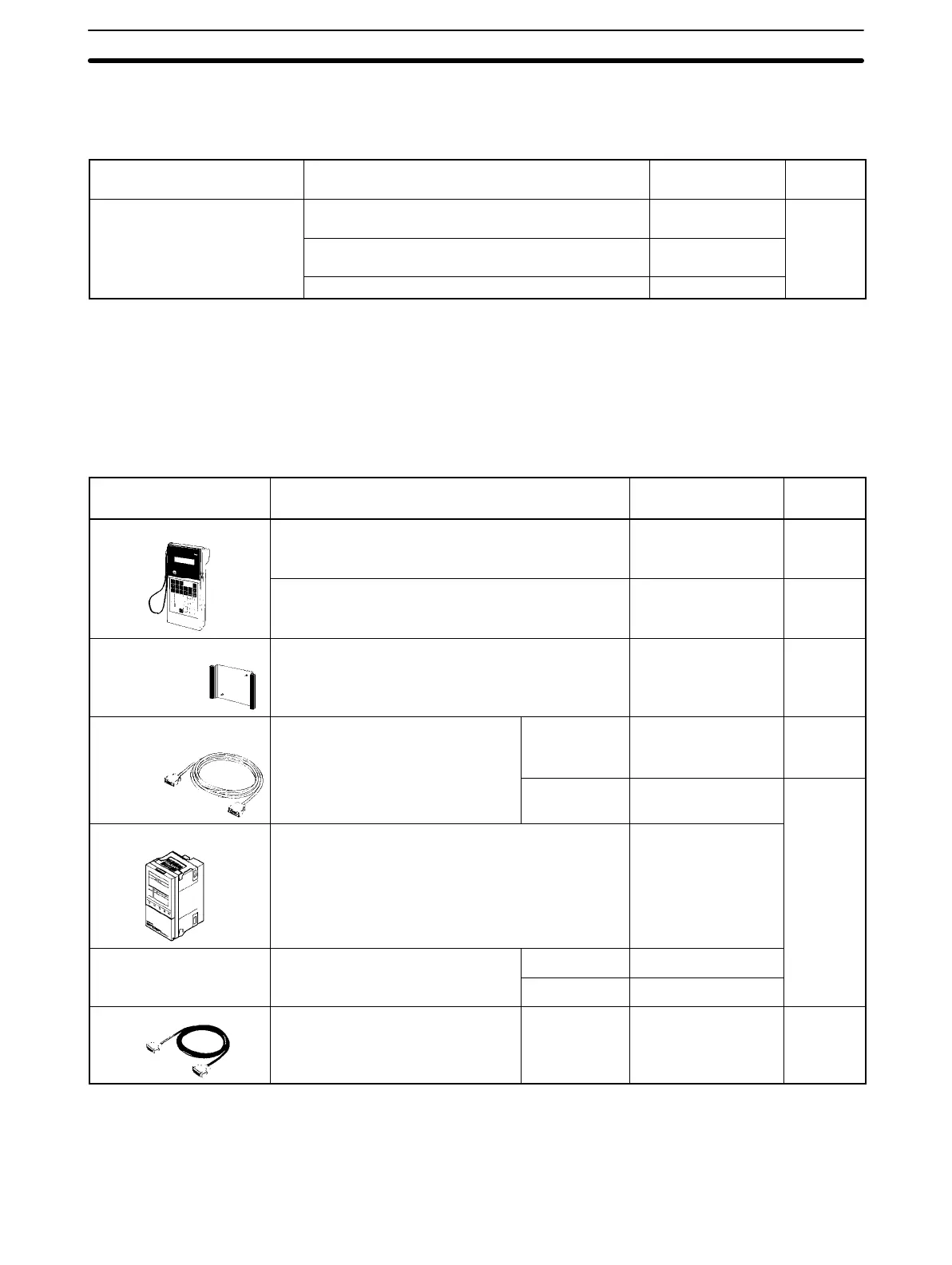

Programming Devices
Name Specifications Model number Stan-
dards
Programming Consoles
Hand-Held, w/backlight C200H-PR027-E U, C
2-m Connecting Cable included CQM1-PRO01-E U, C
Programming Console
Mounting Bracket
Used to attach Hand-held Programming Console to a
panel.
C200H-ATT01 ---
Programming Console
Connecting Cables
For Hand-held Programming Con-
sole
2 m C200H-CN222 ---
4 m C200H-CN422 ---
Data Setting Console Used for data input and process value display for the
C200H-TCjjj, C200H-TVjjj, C200H-CP114,
and C200H-PID0j.
C200H-DSC01
Data Setting Console
For C200H-DSC01 2 m C200H-CN225
4 m C200H-CN425
Connecting Cable Used to connect an IBM PC/AT or
compatible to the C200HX/HG/HE.
3.3 m CQM1-CIF02 ---
To Next Page
