Appendix D
Dimensions and Mounting Methods
Racks

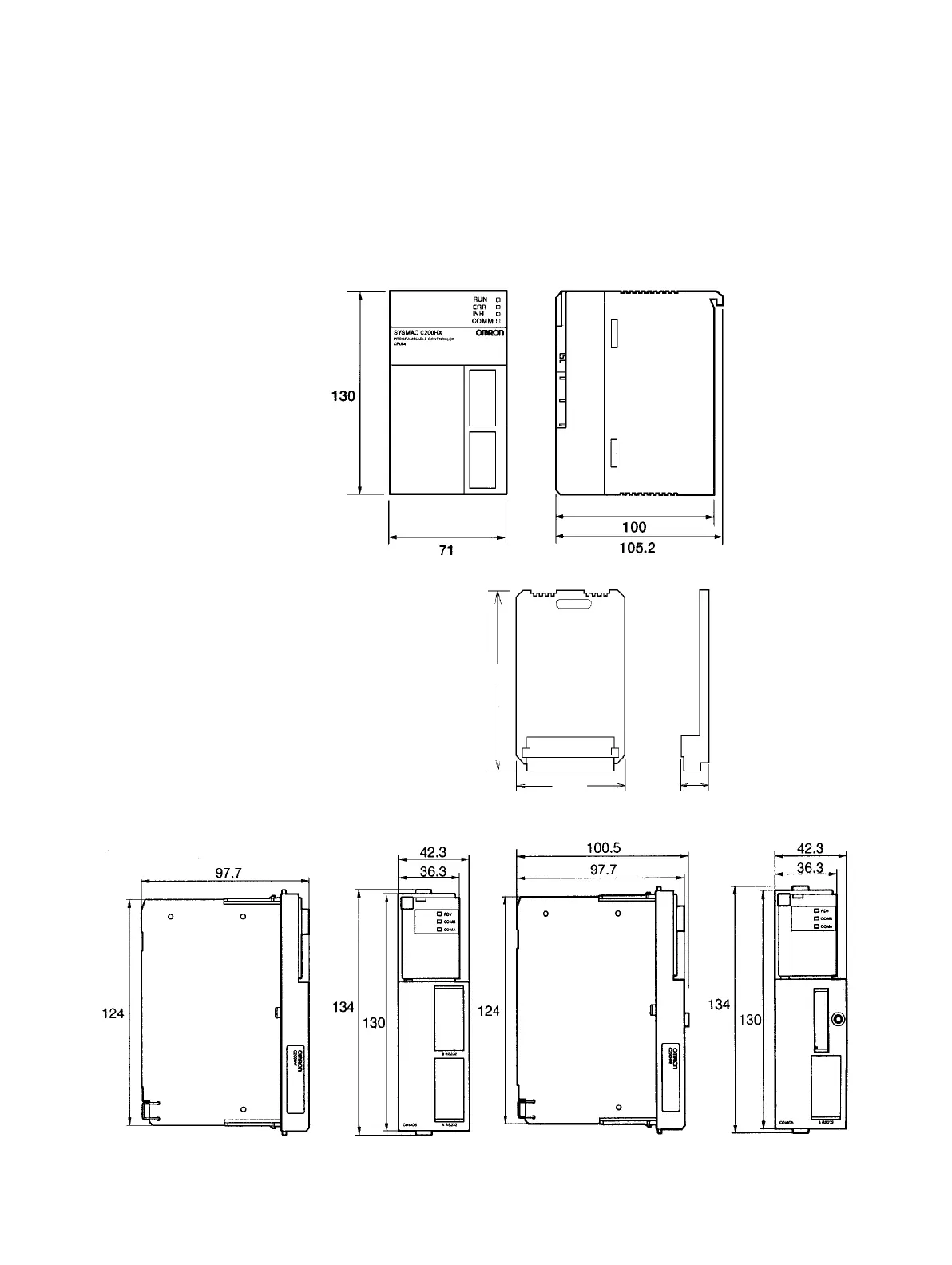

The dimensions shown below are for both the CPU Rack and Expansion I/O Racks. The C dimension for the Pro-
gramming Console will increase by 30 mm when the Programming Console Adapter C200H-BP001 is used, and
will increase by 50 mm when the Programming Console Adapter C200H-BP002 is used.
CPU Units
Memory Cassettes
73.2
44 9.1
Communications Boards
C200HW-COM02/03/05-E/06-E C200HW-COM01/04-E
To Next Page
