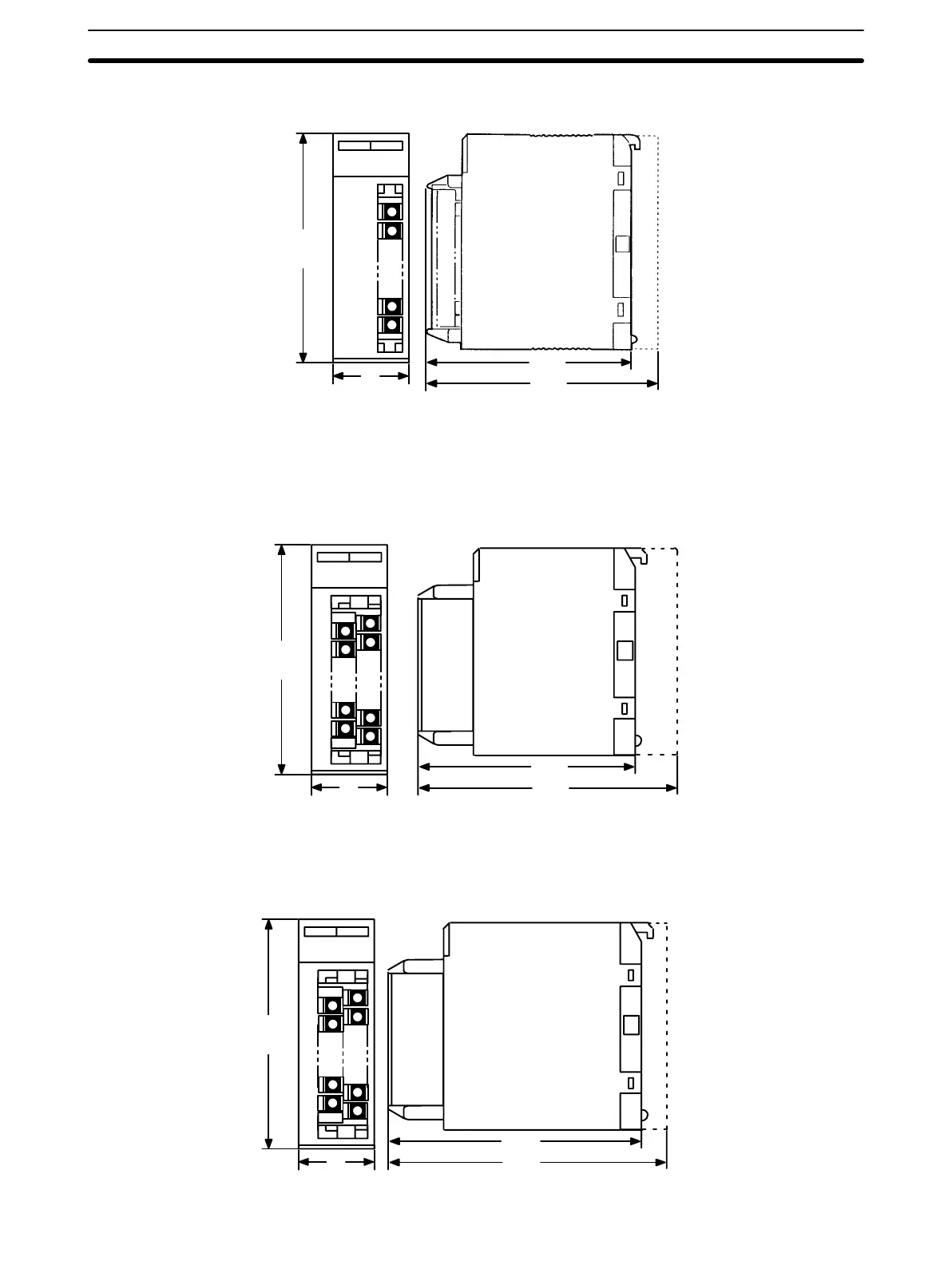

Appendix D
Dimensions and Mounting Methods
215
138
121
x
x
x
x
35
130
10-terminal T
erminal Block (E-shape I/O Units)
C200H-OA223
Backplane
145
128
Back-
plane
x
x
x
x
x
x
x
x
35
130
19-terminal T
erminal Block (B-shape I/O Units)
19-terminal T
erminal Block (Extended B-shape I/O Units)
169
152
x
x
x
x
x
x
x
x
35
130
Backplane
226
228
Table of Contents
Table of Contents
5
Precautions
8
Intended Audience
8
General Precautions
8
Safety Precautions
8
Operating Environment Precautions
9
Application Precautions
10
Conformance to EC Directives
11
Section 1
13
Introduction
13
What Is a Control System
14
The Role of the PC
16
How Does a PC Work
17
Section 2 System Configuration and Units
21
Section 2
21
System Configuration and Units
21
Basic Configuration
22
CPU Rack
22
Expansion I/O Racks
25
Units
26
I/O Connecting Cable
26
CPU Units
26
Memory Cassettes
29
Communications Boards
30
Power Supply Units
31
Backplanes
36
Standard I/O Units
37
Group-2 High-Density I/O Units
39
High-Density I/O Units Classified as Special I/O Units
42
Peripheral Devices
43
Programming Consoles
43
Ladder Support Software (LSS)
43
SYSMAC Support Software (SSS)
44
SYSMAC-CPT Support Software
44
Expanded System Configurations
45
Required Mounting Conditions
45
Special I/O Units
45
Link Systems and Networks
52
Section 3 Installation and Wiring
61
Section 3
61
Installation and Wiring
61
Installation Environment
62
Installation and Wiring Precautions
62
Installing Racks
63
Mounting Height
65
Mounting Dimensions (Units: MM)
66
DIN Track Mounting
67
Mounting Units to the Backplane
70
I/O Connecting Cables
72
Mounting Memory Cassettes
73
Mounting a Communications Board
74
Wiring
75
Power Supply Wiring
75
Standard I/O Unit Wiring
80
Electrical Noise
86
Section 4 Programming Console Operation
91
Section 4
91
Programming Console Operation
91
Using the Programming Console
92
Nomenclature
92
Connecting the Programming Console
93
Checking Initial Operation
94
Section 5 Troubleshooting, Inspections, and Maintenance
95
Section 5
95
Troubleshooting, Inspections, and Maintenance
95
Troubleshooting
96
Inspection and Maintenance
99
Replacing Output Unit Fuses
99
Replacing Relays
100
Batteries
103
Inspections
104
Appendices
107
A Standard Models
107
B Specifications
125
C Unit Current and Power Consumption
217
D Dimensions and Mounting Methods
223
Glossary
233
Index
237
Revision History
241
