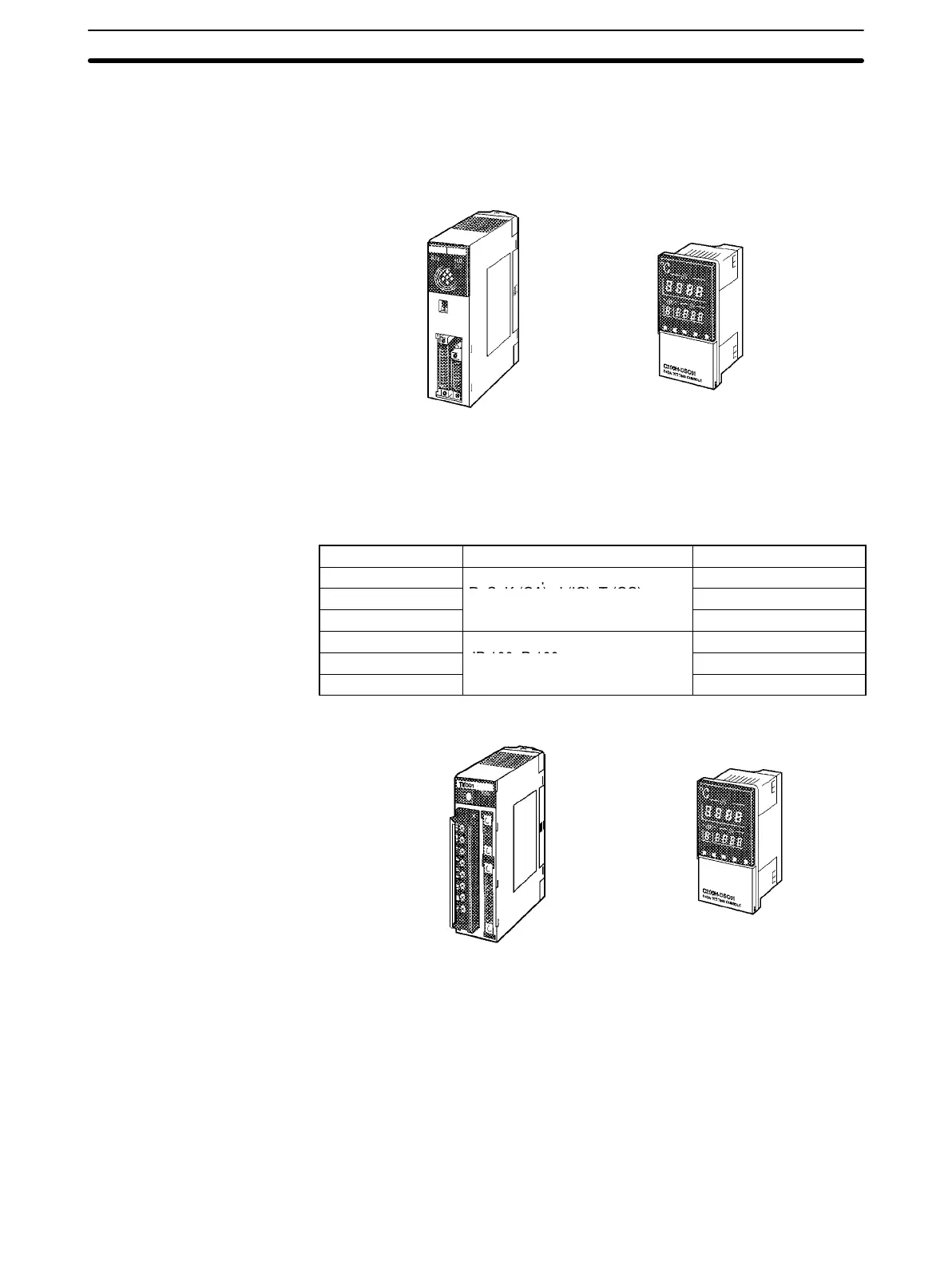

Cam Positioner Unit A single C200H-CP114 Cam Positioner Unit is as powerful as 48 mechanical
cams because it can complete jobs that normally require 48 mechanical cams.
It is possible to set 16-point external output and 32-point internal output as cam
output. The 32-point internal output can be retrieved as data by the C200HS.
Cam Positioner Unit Data Setting Console
The Heat/Cool Temperature Control Units measure the temperature of an object
with a connected temperature sensor (thermocouple or platinum resistance
thermometer), and heats and cools according to a preset control mode.
Select the control output of the Heat/Cool Temperature Control Unit from the fol-
lowing.
Model Temperature sensor input Control output
C200H-TV001
Thermocouple:
Transistor output
C200H-TV002
R, S, K (CA), J (IC), T (CC),
E (CRC) B N L (IC) U (CC)
Voltage output
C200H-TV003
,
,
,
,
Current output
C200H-TV101
Platinum resistance thermometer:
Transistor output
C200H-TV102
JPt100, Pt100
Voltage output
C200H-TV103 Current output
Heat/Cool Temperature Control Unit Data Setting Console
Heat/Cool Temperature
Control Units
Expanded System Configurations
Section 2-4
To Next Page
