CompoBus/D Systems The Compobus/D is an I/O data communications system conforming to the

CompoBus/D standard being developed to standardize device-level networks

for FA.

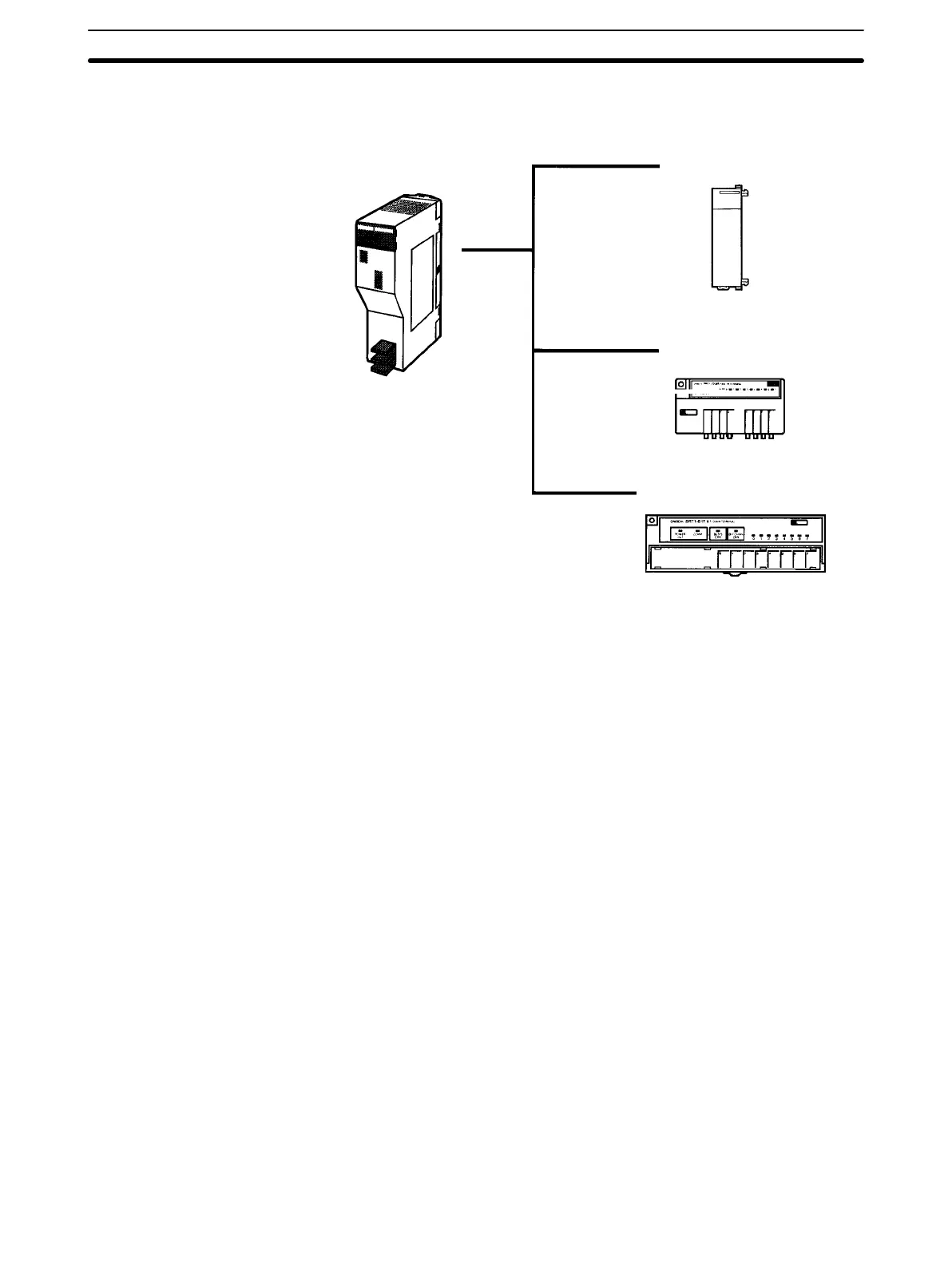

CompoBus/D Master Unit

CQM1 (I/O Link Unit)

I/O Terminal

Adapter

Sensor Terminal

Analog Input Terminal

Analog Output Terminal

• The CompoBus/D Master Unit is mounted to the CPU Rack or an Expansion

I/O Rack. Only one Master Units can be mounted.

• Up to 50 slaves can be connected for a maximum of 1,600 points of I/O data

communications (50 input words and 50 output words).

• The IR Area is used for data transmissions (outputs: IR 50 to IR 99; inputs: IR

350 to IR 399).

• A wide variety of slaves are available to support relay, sensor, analog and other

I/O.

Note 1. The CompoBus/D System cannot be used at the same time as a Remote I/O

System.

2. The CompoBus/D Master Units must be counted as Special I/O Units.

3. Slaves made by other manufacturers can be connected as long as they con-

form to the CompoBus/D standard.

Expanded System Configurations

Section 2-4
