How to Use Data Trace Recording Tool Appendix
247

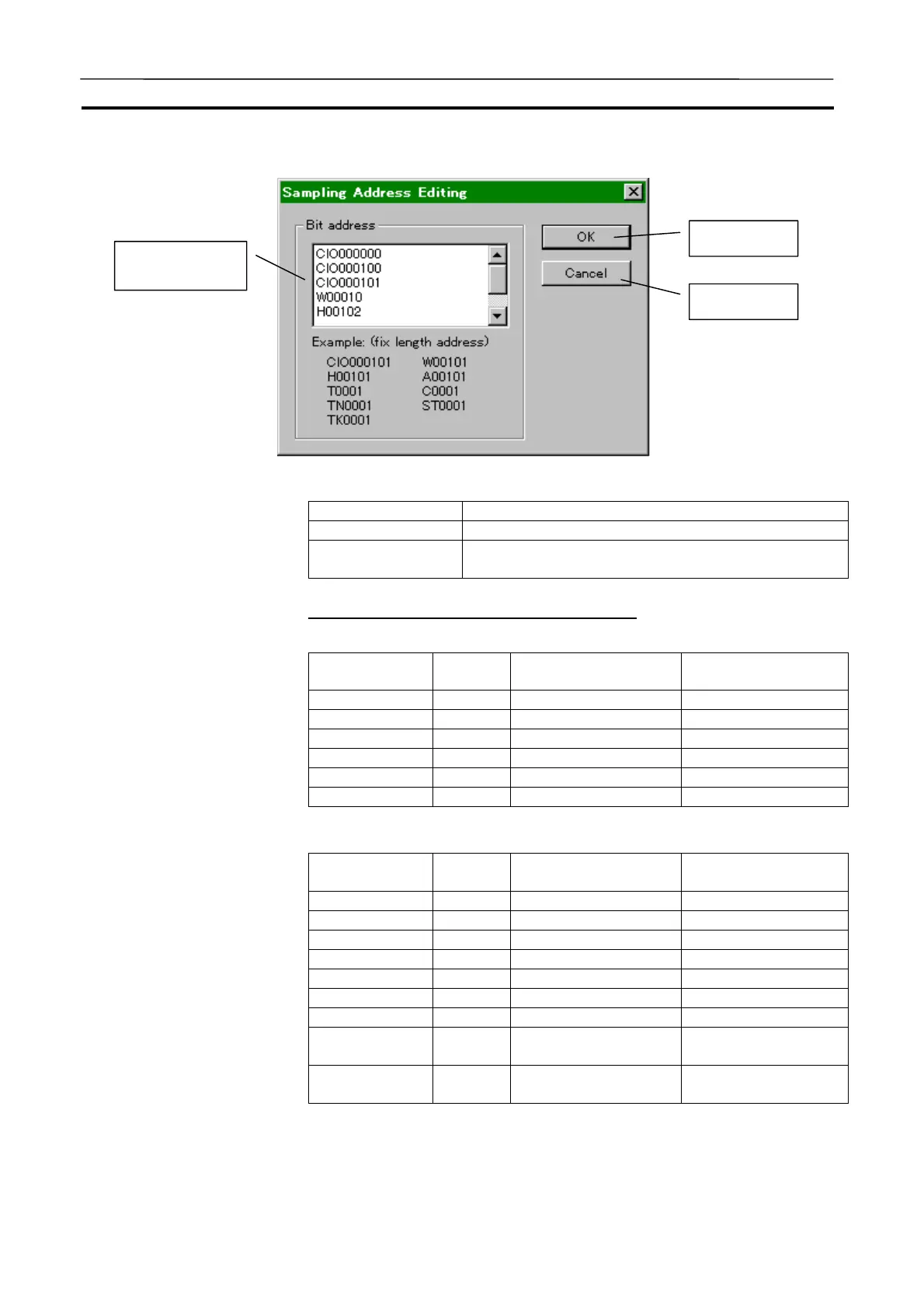

The dialog box for editing the sampling address
Sampling address Enter the sampling address to be registered.
OK button Register the sampling address to close the dialog box.
Cancel button Close the dialog box without registering the sampling
address.
Area and Address Range Possible to Specify
Bit address
Area Area
symbols
Word range
(number of digit)
Bit range
(number of digit)
CIO Area CIO 0 to 6143 (4) 0 to 15 (2)
Work Area W 0 to 511 (3) 0 to 15 (2)
Holding Area H 0 to 511 (3) 0 to 15 (2)
Auxiliary Area A 0 to 959 (3) 0 to 15 (2)
Timer Area T 0 to 4095 (4) None (0)
Counter Area C 0 to 4095 (4) None (0)
Word address
Area Area
symbols
Word range
(number of digit)
Bit range
(number of digit)
CIO Area CIO 0 to 6143 (4) 0 to 15 (2)
Work Area W 0 to 511 (3) 0 to 15 (2)
Holding Area H 0 to 511 (3) 0 to 15 (2)
Auxiliary Area A 0 to 959 (3) 0 to 15 (2)
Timer Area T 0 to 4095 (4) None (0)
Counter Area C 0 to 4095 (4) None (0)
DM Area D 0 to 32767 (5) None
Current EM
Bank
E 0 to 32767 (5) None
EM bank desig-
nation
E 0 to 32767 (5) Bank 0
to 12
None
Sampling address
OK
Cancel
