Appendix BSpecifications
174

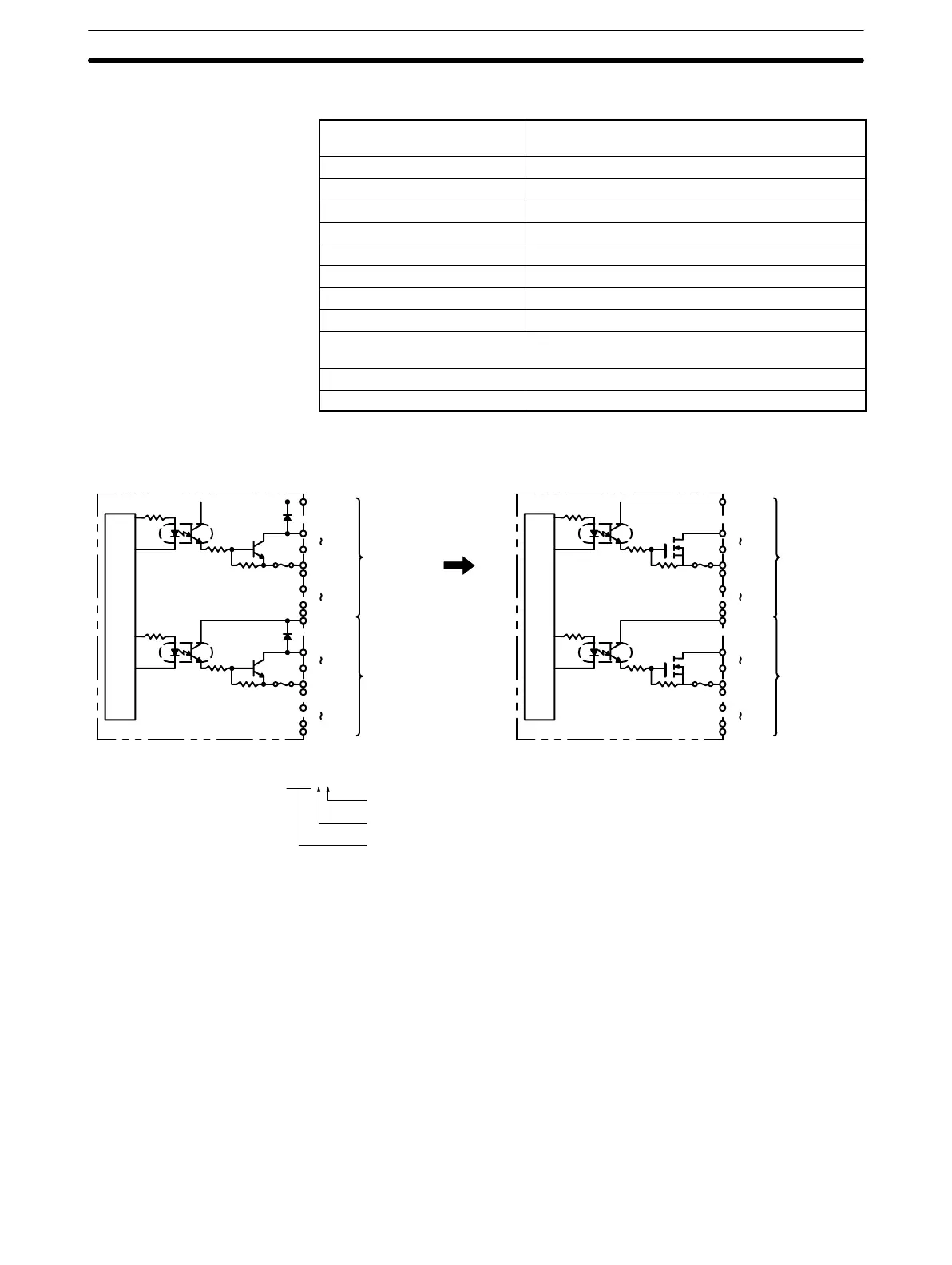

Transistor Output Unit C200H-OD215 (Used as 32-point Output Unit)
Max. Switching Capacity 16 mA, 4.5 VDC to 100 mA, 26.4 VDC
800 mA/common, 3.2 A/Unit
Min. Switching Capacity None
Leakage Current 0.1 mA max.
Residual Voltage 0.7 V max.
ON Response Time 0.2 ms max.
OFF Response Time 0.6 ms max.
No. of Circuits 4 (8 points/common)
Internal Current Consumption 220 mA 5 VDC max.
Fuses 4 (1 fuse/common; fuses are not user-replacable.)
Power for External Supply
90 mA 5 to 24 VDC10% min.
(2.8 mA × number of ON outputs)
Weight 300 g max.
Dimensions 130×34.5×100.5 (H×W×D, in millimeters)
Circuit Configuration
Units manufactured on or before November 29th, 1999
(manufacturing numbers 29Y9 or earlier*)
Units manufactured on or after November 30th, 1999
(manufacturing numbers 30Y9 or later*)
OUT00
OUT07
COM0
OUT08
OUT15
COM1
Inter-
nal
Cir-
cuit
Fuse
Fuse
CN1
5 to
24 VDC
5 to
24 VDC
OUT00
OUT07
COM2
OUT08
OUT15
COM3
CN2
5 to
24 VDC
5 to
24 VDC
OUT00
OUT07
COM0
OUT08
OUT15
COM1
Inter-
nal
Cir-
cuit
Fuse
Fuse
CN1
5 to
24 VDC
5 to
24 VDC
OUT00
OUT07
COM2
OUT08
OUT15
COM3
CN2
5 to
24 VDC
5 to
24 VDC
10 kΩ
10 kΩ
8.2 kΩ
8.2 kΩ
15 kΩ
6.8 kΩ
15 kΩ
6.8 kΩ
*Manufacturing Numbers
jjY9
Year: Last digit of calendar year; e.g., 1999→9, 2000→0
Month: 1 to 9 (January to September), X (October), Y (November), Z (December)
Day: 01 to 31
