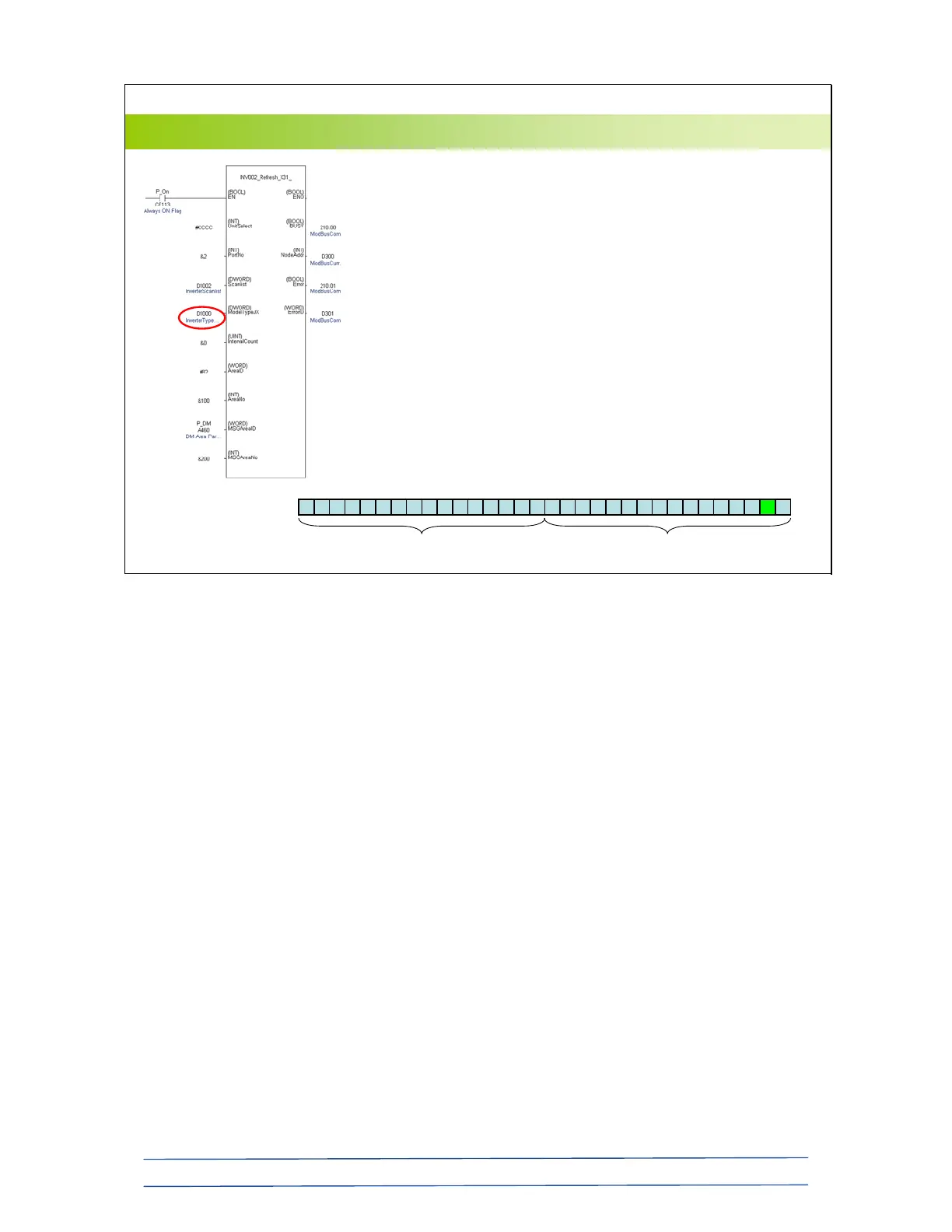

JX-MX2 INVERTER REFRESH FUNCTION BLOCK
PNSPO
‘InverterType’ defines whether JX
or MX2s are used. We have used
D1000/1001 = 32 bits
If bit 01 of word D1000 is set to
ON, this would mean that we
have an MX2 present as Node
#01
If it is OFF, this means it’s a JX
These are only effective if the
node is defined as being ‘present’
in the previous setting.
0000000000000000
0
00000000000000
D1000D1001
15 14 13 12 11 10 09 08 07 06 05 04 03 02 0130 29 28 27 26 25 24 23 22 21 20 19 18 17 1631
