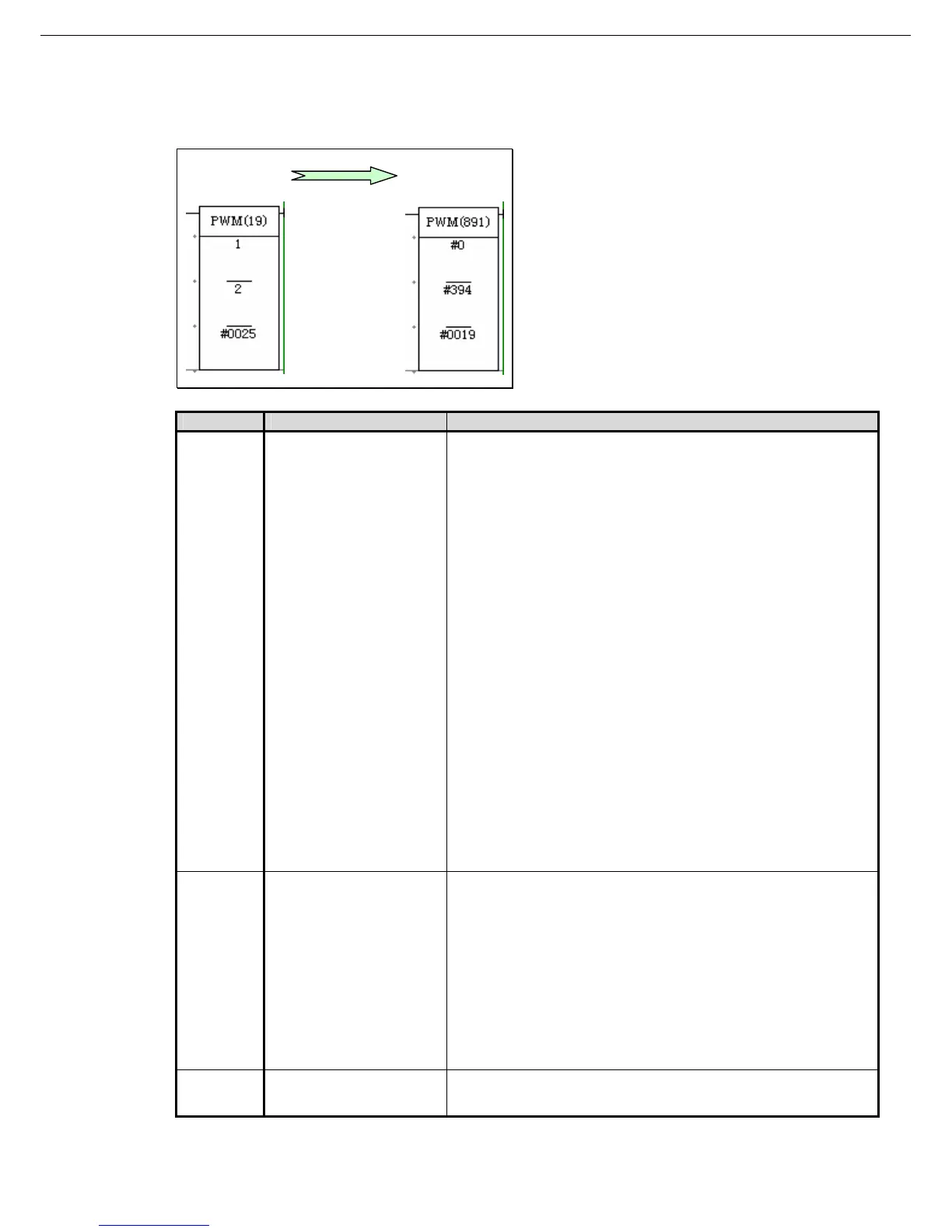

♦PULSE WITH VARIABLE DUTY FACTOR （PWM）
CQM1H CJ1M/CJ2M
CQM1H CJ1M/CJ2M
Operand 1 Communications Port:
001=PLB Pulse Output1
002=PLB Pulse Output 2
Port specifier:
<CJ1M-CPU22/23: PWM output 0 and 1 only,
CJ1M-CPU21: PWM output 0 only>
#0000= PWM output 0 (Frequency unit of 0.1Hz, Duty factor unit of
1%)
#0001=PWM output 1(Frequency unit of 0.1Hz, Duty factor unit of
1%)
#0002=PWM output 2(Frequency unit of 0.1Hz, Duty factor unit of
1%)
#0003=PWM output 3(Frequency unit of 0.1Hz, Duty factor unit of
1%)
<CJ1M-CPU Unit version 2.0 or later or CJ2M-CPU only>
#1000=PWM output 0 (Frequency unit of 0.1Hz, Duty factor unit of
0.1%)
#1001=PWM output1 (Frequency unit of 0.1Hz, Duty factor unit of
0.1%)
#1002=PWM output2 (Frequency unit of 0.1Hz, Duty factor unit of
0.1%)
#1003=PWM output 3(Frequency unit of 0.1Hz, Duty factor unit of
0.1%)
<CJ2M-CPU only>
#1100=PWM output 0 (Frequency unit of 1Hz, Duty factor unit of
0.1%)
#1101=PWM output 1 (Frequency unit of 1Hz, Duty factor unit of
0.1%)
#1102=PWM output 2 (Frequency unit of 1Hz, Duty factor unit of
0.1%)
#1103=PWM output 3 (Frequency unit of 1Hz, Duty factor unit of
0.1%)
Operand 2 Frequency:
000= 5.9kHz
001= 1.5kHz
002= 91.6Hz
Frequency:
<CJ2M CPU Unit>
0001 to FFFFHex (0.1Hz to 6553.5Hz, Frequency unit of 0.1Hz)
0001 to 8020Hex (1Hz to 32800Hz, Frequency unit of 1Hz)
* The ccuracy of PWM wave guaranteed is limited to the range
between 0.1 to 1000.0Hz, due to limitation of output circuit.
Output accuracy: ON duty +2%, -0% (With 1kHz, 0.5ｍA output)
<CJ1M CPU Unit>
0001 to FFFFHex (0.1Hz to 6553.5Hz, Frequency unit of 0.1Hz)
* The ccuracy of PWM wave guaranteed is limited to the range
between 0.1 to 1000.0Hz, due to limitation of output circuit.
Output accuracy: ON duty +5%, -0%（With 1kHz 0.5ｍA output）
Operand 3 Duty factor:
0001 to 0099(1 to 99%)
Duty factor:
0000 to 0064Hex (0 to 100%)
0000 to 03E8Hex (0 to 100%)
29
