6. Example of converting ladder program by CX-Programmer
This section explains the method of converting the ladder program using CX-Programmer V9.1. Here, convert the
ladder program of CQM1H-CPU61 for CJ2M-CPU** as an example. (This secrion describes the procedure from
loading the ladder program created by CX-Programmer or Sysmac Support Soft (SSS) to converting the program
for CJ2M.)
After converting the ladder program, it is necessary to modify the unit area allocation, operand data, and condition
flag settings, separately. Be sure to confirm the system safety before starting operation.
♦Reading the ladder program of CQM1H
・SSS data

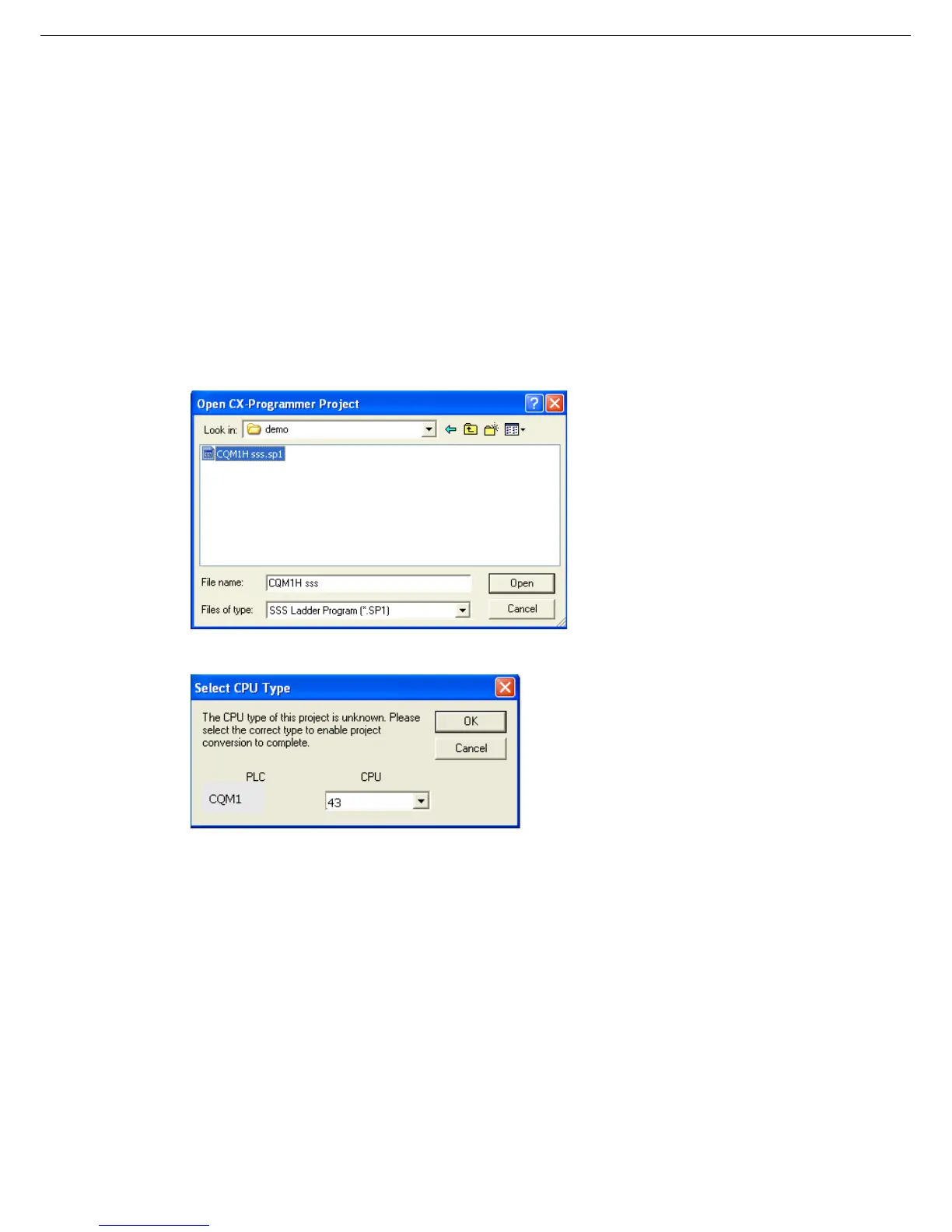

On the CX-Programmer, select File – Open. Set the file type to
“SSS Ladder Program (*.SP1)” and
open the SSS ladder program file for CQM1H. On the below dialog, Click the “Open”.
Then, dialog box to enter the model of CQM1 CPU Unit will be displayed. Enter the model of the CPU
Unit. (For CQM1H, select corresponding CQM1 model.)
・CX-Programmer data
Click the "File" - "Open" and set the file type to CX-Programmer Project Files (*.cxp)". Then, open the
ladder program file of CQM1H created on the CX-Programmer.
