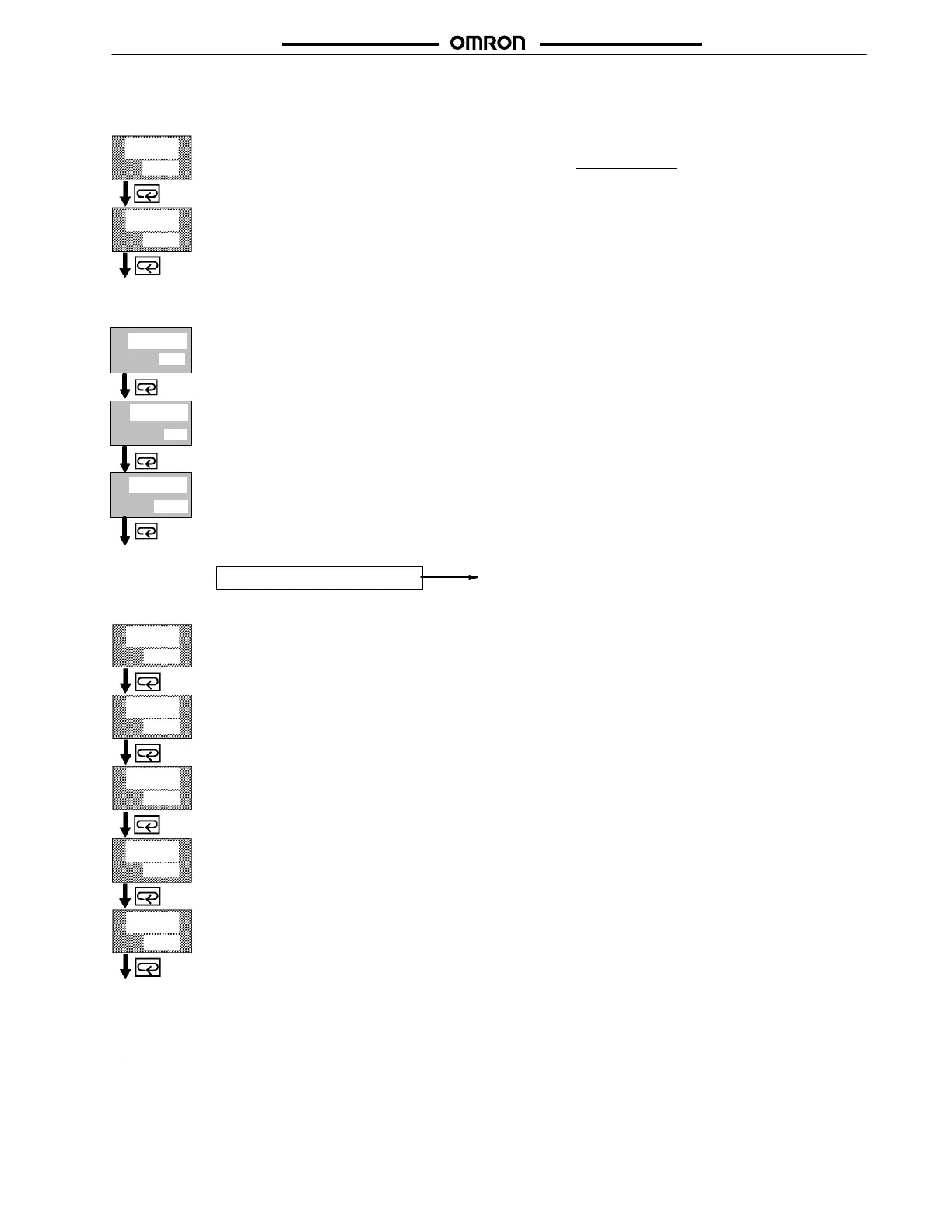

Option Mode – ONLY Visible if an Option Board is Installed
E5K
0
stop
e U - 1
Multi-SP Function
Specifies the number of set points that will be used. Must be set to one
to use SP Ramp feature.
Available for the event input function. Default = 0
Event Input Assignment 1
Available for the event input function. If multi-SP is set to 0, this parameter assigns event input
function as: Run/Stop, Auto/Manual, or Protect Function. Default = Stop.
e U - m
E5AK and E5EK only
Event Input Assignment 2
Available for the event input function.
Event Input Assignment 3
Available for the event input function.
Event Input Assignment 4
Available for the event input function.
e U - 2
e U - 3
e U - 4
stop
Communications selections are ONLY available if a com-
munications board is installed.
COMMUNICATIONS FUNCTION
2
7
eUen
Communication Stop Bit
Displayed when the communications function is in use.
Range = 1 to 2
Default = 2
Communication Data Length
Displayed when the communications function is in use.
Range = 7 to 8
Default = 7
Communication Parity
Displayed when the communications function is in use.
Range = None, Even, Odd
Default = Even
Communication Baud Rate
Displayed when the communications function is in use.
Range = 1.2, 2.4, 4.8, 9.6, 19.2 k baud
Default = 9.6
Communication Unit No.
Displayed when the communications function is in use.
Range = 0 — 99
Default = 0
96
0
b p s
u - n o
p r t y
s b i t
l e n
(continued on next page)
