E5AK/E5CK/E5EK
E5AK/E5CK/E5EK
110

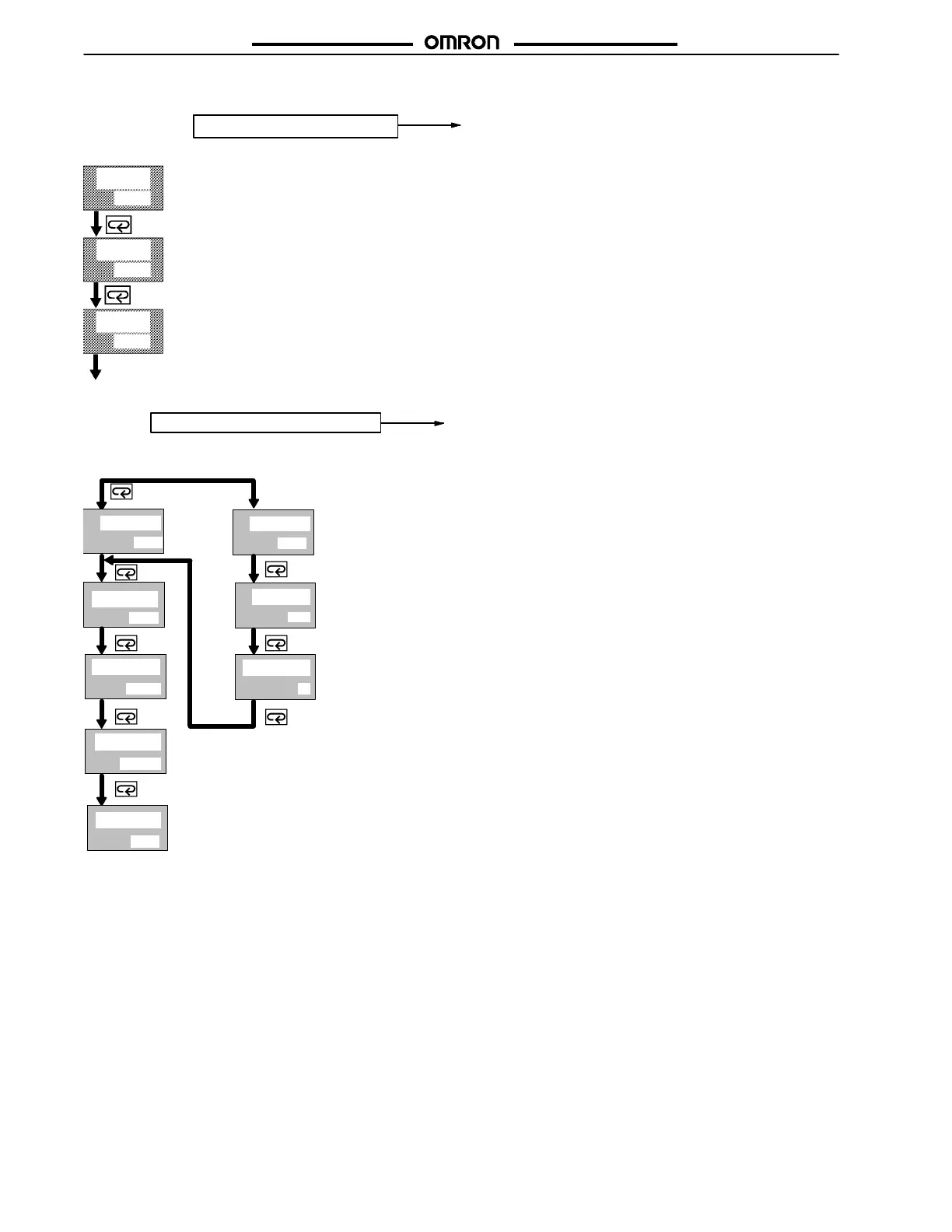

Option Mode – ONLY Visible if an Option Board is Installed, continued
Transfer Output Type
Set when the transfer output function is in use.
Determines which function the transfer output will re-transmit as a 4-20mA signal: SP, PV, SP
Ramp, MV
Transfer Output Upper Limit
Set when the transfer output function is in use.
Stops the transfer output from going higher than the Set Value.
Transfer Output Lower Limit
Set when the transfer output function is in use.
Stops the transfer output from going lower than the Set Value.
sp
1300
-200
t r - t
t r - h
t r - l
Transfer output selections are ONLY available if a trans-
fer board is installed.
TRANSFER OUTPUT SECTION
Remote set point function is available on all E5AK/E5EK
models, with or without an option board installed.
REMOTE SET POINT FUNCTION
c a l b
30
m o t
0
p - d b
HBA Latch
Makes the heater burnout alarm remain activated when triggered. It must be reset
manually.
Motor Calibration
Determines how long it takes a fully closed proportional valve to fully open.
Travel time
The amount of time it takes to determine the motor calibration parameter.
Range = 1–999 sec.
Default = 30 sec.
PV Dead Band
Determines the size of the dead band around the process variable in which the valve
will take no control action.
Range = 0–9999
Default = 0
Remote SP Enable
Enables the controller to use a remote set point.
Default = off
Remote SP Upper Limit (Available when the remote SP is enable)
Stops the RSP from going any higher than the set value.
Default = 1300
Remote SP Lower Limit (Available when the remote SP is enable)
Stops the RSP from going any lower than the set valve.
Default = –200
SP tracking (Available when the remote SP is enable)
Allows a smooth transition between a RSP and a local SP when enabled. When on,
the LSP will become the RSP that was being used immediately before switching.
%f
r s p u
%ff
1300
r s p h
r s p l
-200
s p e r
%ff
h b l
%ff
