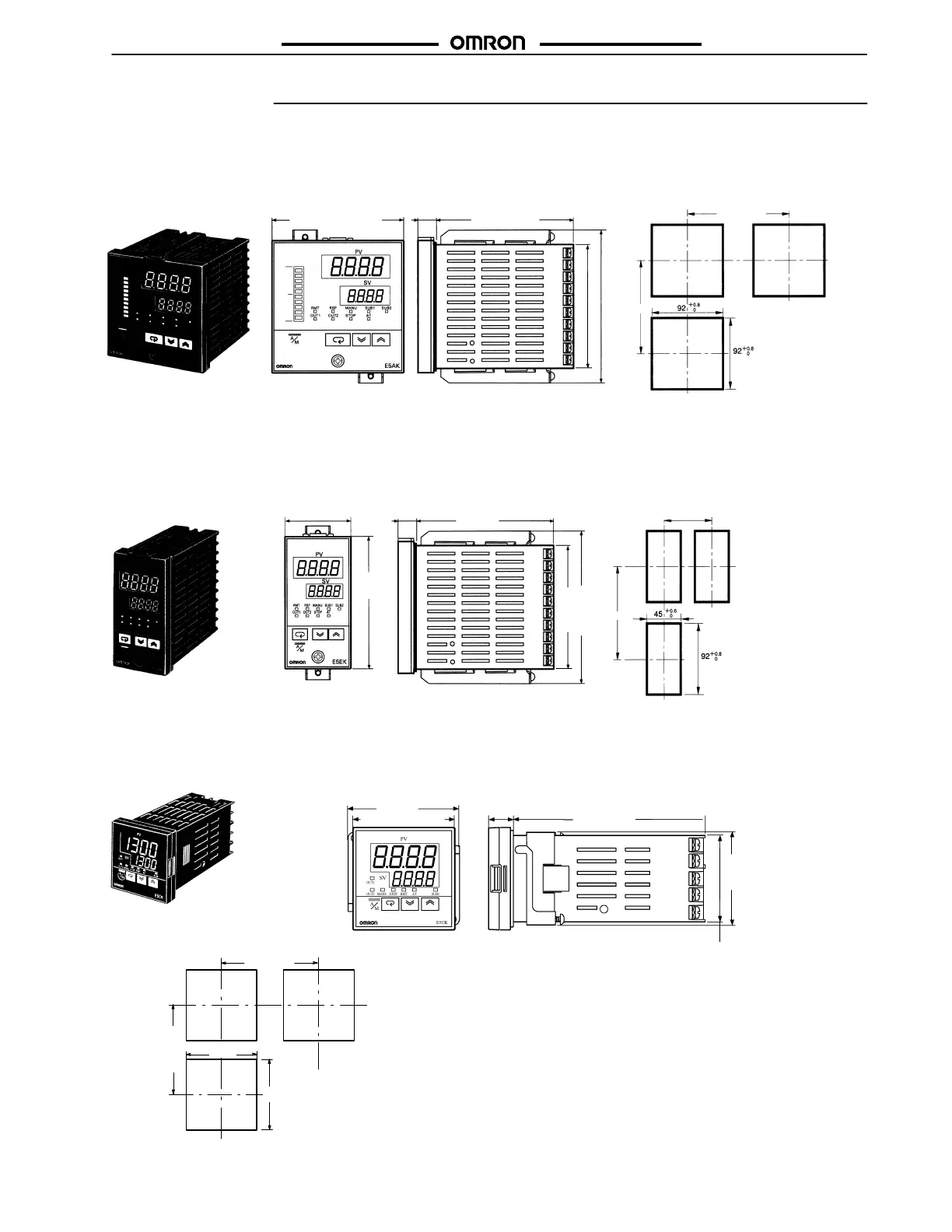

Dimensions
Unit: mm (inch)
 E5AK
Panel Cutouts
Note: 1. Recommended panel thickness is 1 to 8 mm.
2. Maintain the specified vertical and horizontal mounting space between each Unit.
Units must not be closely mounted vertically or horizontally.
96 (3.78) x 96 (3.78)
110 min.
120 min.
13.5
(0.53)
100 (3.94)
91 (3.58) x 91 (3.58)
112 (4.41)
 E5EK
Panel Cutouts
Note: 1. Recommended panel thickness is 1 to 8 mm.
2. Maintain the specified vertical and horizontal mounting space between each Unit.
Units must not be closely mounted vertically or horizontally.
120 min.
60 min.
48 (1.89)
13.5
(0.53)
100 (3.94)
91 (3.58)
112 (4.41)
96
(3.78)
 E5CK
Panel Cutouts
Note: 1. Recommended panel thickness is 1 to 5 mm.
2. Maintain the specified vertical and horizontal mounting space between each Unit.
Units must not be closely mounted, either vertically or horizontally.
58 (2.28)
53 (2.09) x 53 (2.09)
13
(0.51)
100 (3.94)
48 (1.89)
65 min.
60 min.
45
+0.6
0
45
+0.6
0
44.8 (1.76) x 44.8 (1.76)
